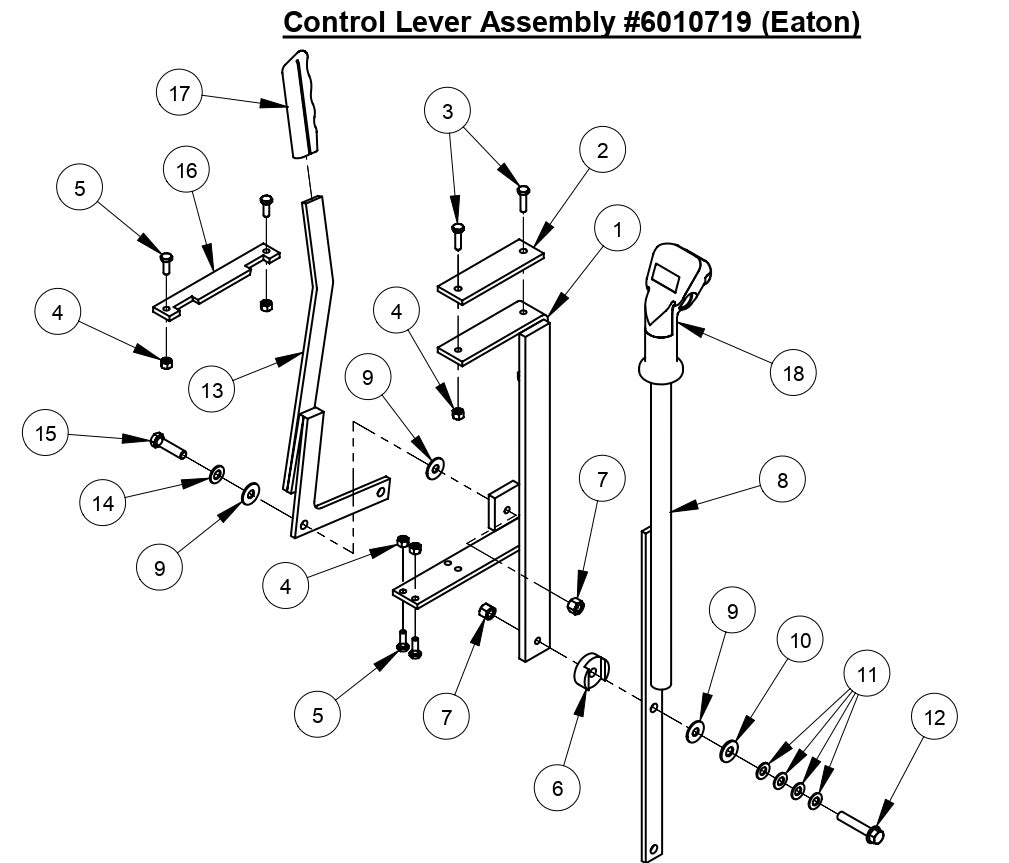

CC6540E Control Lever Assembly (Eaton)

CC6540E Control Lever Assembly (Eaton)

  • CC6540E Control Lever Assembly (Eaton)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010056 Lever Support Weldment for CC6540E CONCRETE SAW Core Cut by Diamond Products
$101.91
2
2501339 Rubber Support Mount for CC6540E CONCRETE SAW Core Cut by Diamond Products
$12.25
3
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
4
2900010 Lock Nut, 1/4-20 Nylon for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
5
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
6
6010055 Friction Spacer for CC6540E CONCRETE SAW Core Cut by Diamond Products
$16.20
7
2900018 Lock Nut, 3/8-16 Nylon for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
8
6010314 Speed Control Lever for CC6540E CONCRETE SAW Core Cut by Diamond Products
$67.55
9
2900153 Friction Washer, 3/8" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
10
2900473 Flat Washer, 3/8" USS for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
11
2900474 Belleville Washer, 3/8" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$7.46
12
2900472 Cap Screw, Hex Flange Hd., 3/8-16 x 2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
13
6010057 Engagement Lever Weldment for CC6540E CONCRETE SAW Core Cut by Diamond Products
$63.04
14
2900014 Flat Washer, 3/8" SAE for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
15
2900029 Cap Screw, Hex Hd., 3/8-16 x 1-1/2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
16
6010058 Gate Plate for CC6540E CONCRETE SAW Core Cut by Diamond Products
$28.65
17
2500002 Lever Grip for CC6540E CONCRETE SAW Core Cut by Diamond Products
$21.52
18
6010319 Control Grip Assembly for CC6540E CONCRETE SAW Core Cut by Diamond Products
$226.71
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
