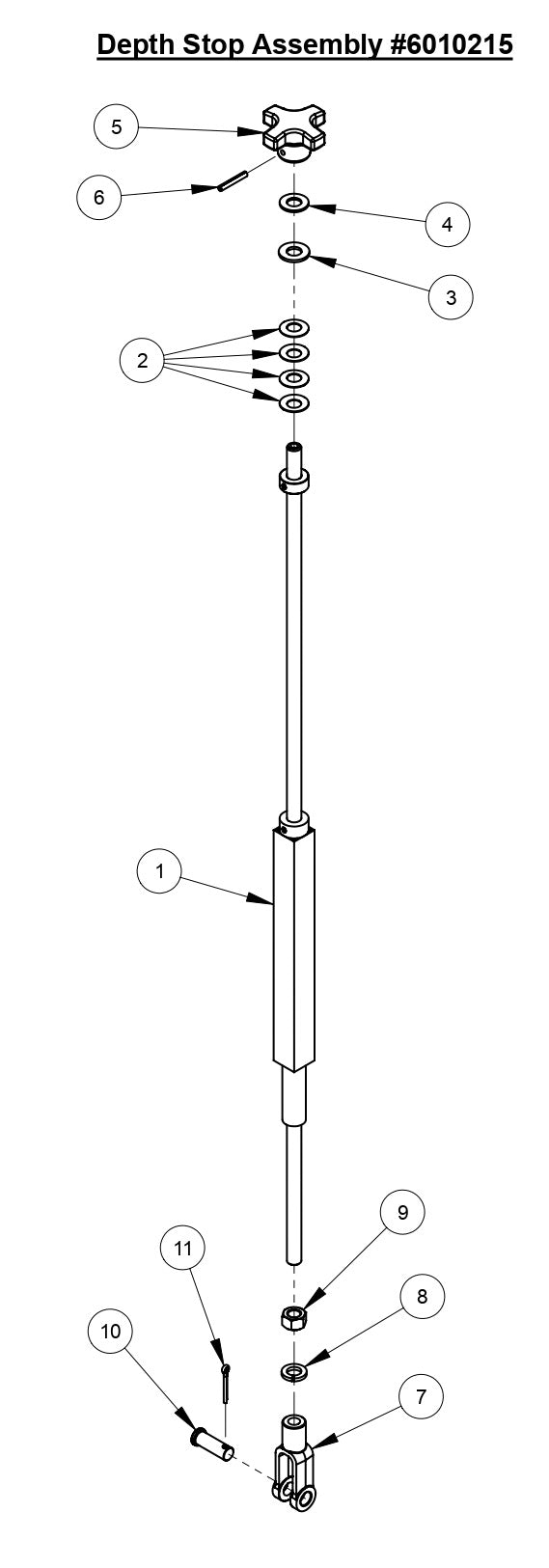

CC6540E Depth Stop Assembly

CC6540E Depth Stop Assembly

  • CC6540E Depth Stop Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010097 Depth Stop Weldment for CC6540E CONCRETE SAW Core Cut by Diamond Products
$154.44
2
2900665 Belleville Washer, 1/2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$6.99
3
2900058 Flat Washer, 1/2" SAE for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
4
2900239 Friction Washer, 1/2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
5
6010095 Depth Stop Knob for CC6540E CONCRETE SAW Core Cut by Diamond Products
$36.00
6
2900132 Roll Pin, 3/16" x 1-1/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
7
2900158 Yoke, 1/2-13 for CC6540E CONCRETE SAW Core Cut by Diamond Products
$23.67
8
2900084 Lock Washer, 1/2" Split for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
9
2900037 Hex Nut, 1/2-13 for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
10
2900007 Clevis Pin, 1/2" Dia. x 1-3/8" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
11
2900004 Cotter Pin, 1/8" x 1" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
View full details
