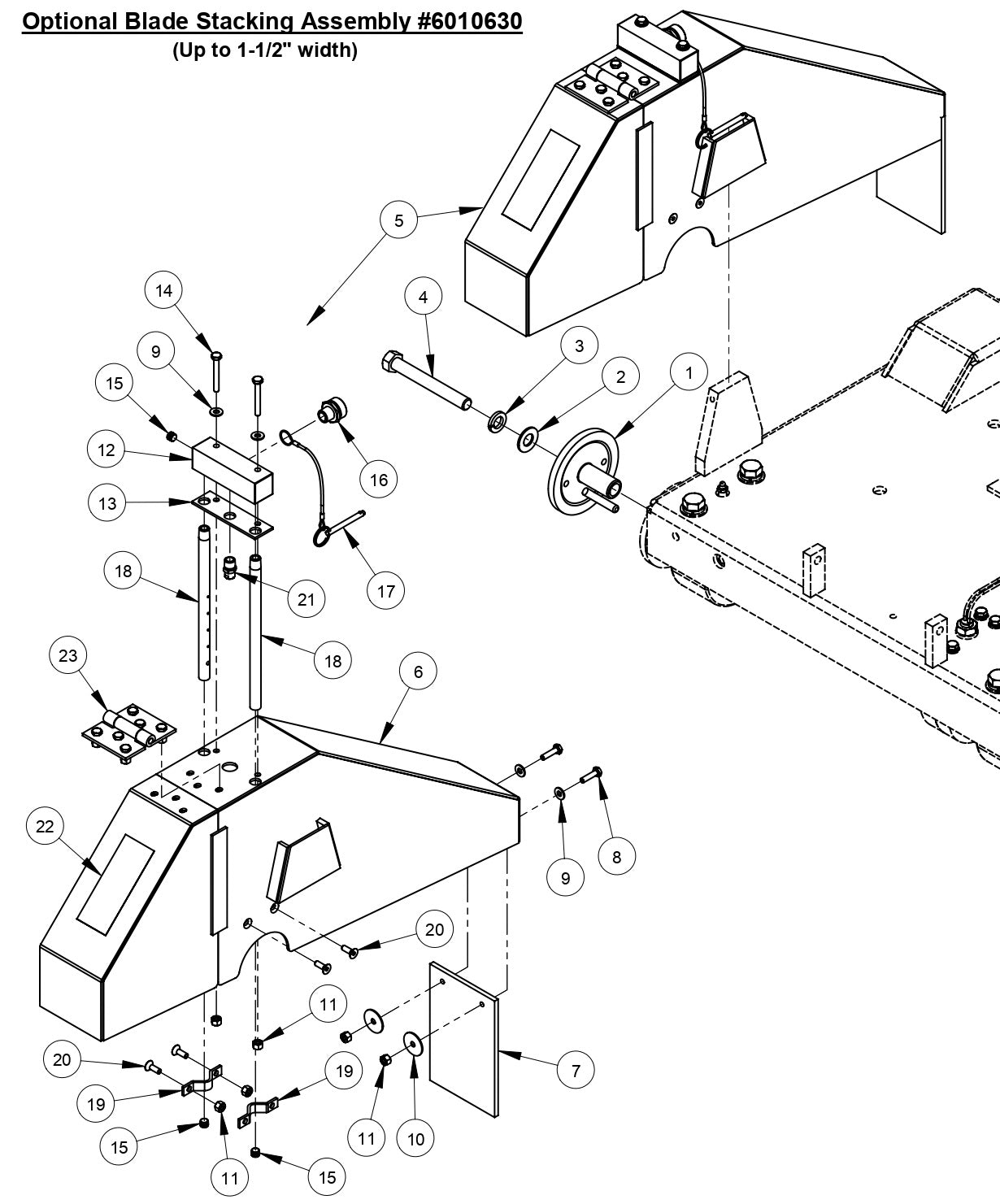

CC6540E Optional Blade Stacking Assembly (Up to 1-1/2" width)

CC6540E Optional Blade Stacking Assembly (Up to 1-1/2" width)

  • CC6540E Optional Blade Stacking Assembly (Up to 1-1/2" width)
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010159 Outer Flange 4-1/2" with Pin for CC6540E CONCRETE SAW Core Cut by Diamond Products
$263.34
2
2900002 Flat Washer, 5/8" SAE for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
3
2900113 Lock Washer, 5/8" Split for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
4
2900210 Cap Screw, Hex Hd., 5/8"-11 x 5" LH for CC6540E CONCRETE SAW Core Cut by Diamond Products
$41.18
5
6010620 20" Wide Blade Guard Assembly for CC6540E CONCRETE SAW Core Cut by Diamond Products
$891.00
6
6010621 20" Wide Blade Guard Front & Rear Only for CC6540E CONCRETE SAW Core Cut by Diamond Products
$589.05
7
6010296 Splash Flap for CC6540E CONCRETE SAW Core Cut by Diamond Products
$33.20
8
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
9
2900009 Flat Washer, 1/4" SAE for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
10
2900083 Fender Washer, 1/4" x 1-1/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
11
2900010 Lock Nut, 1/4-20 Nylon for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
12
6010288 Water Manifold for CC6540E CONCRETE SAW Core Cut by Diamond Products
$42.13
13
2500988 Water Manifold Gasket for CC6540E CONCRETE SAW Core Cut by Diamond Products
$8.66
14
2900294 Cap Screw, Hex Hd., 1/4-20 x 2" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
15
3200001 Plug, 1/8" NPT for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
16
3200002 Fitting, 3/8" M. Pipe to 3/4" M. Garden for CC6540E CONCRETE SAW Core Cut by Diamond Products
$13.99
17
2900278 Lanyard with Lock Pin for CC6540E CONCRETE SAW Core Cut by Diamond Products
$20.52
18
6010085 Water Tube for 20" Guard for CC6540E CONCRETE SAW Core Cut by Diamond Products
$33.01
19
6048155 Water Tube Clamp for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
20
2900020 Cap Screw, Flat Hd., 1/4-20 x 3/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
21
3200208 Nozzle, 1/4" NPT for CC6540E CONCRETE SAW Core Cut by Diamond Products
$34.44
22
1800001 Warning Label for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
23
6010251 Hinge Assembly for 20" Guard for CC6540E CONCRETE SAW Core Cut by Diamond Products
$43.98
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
