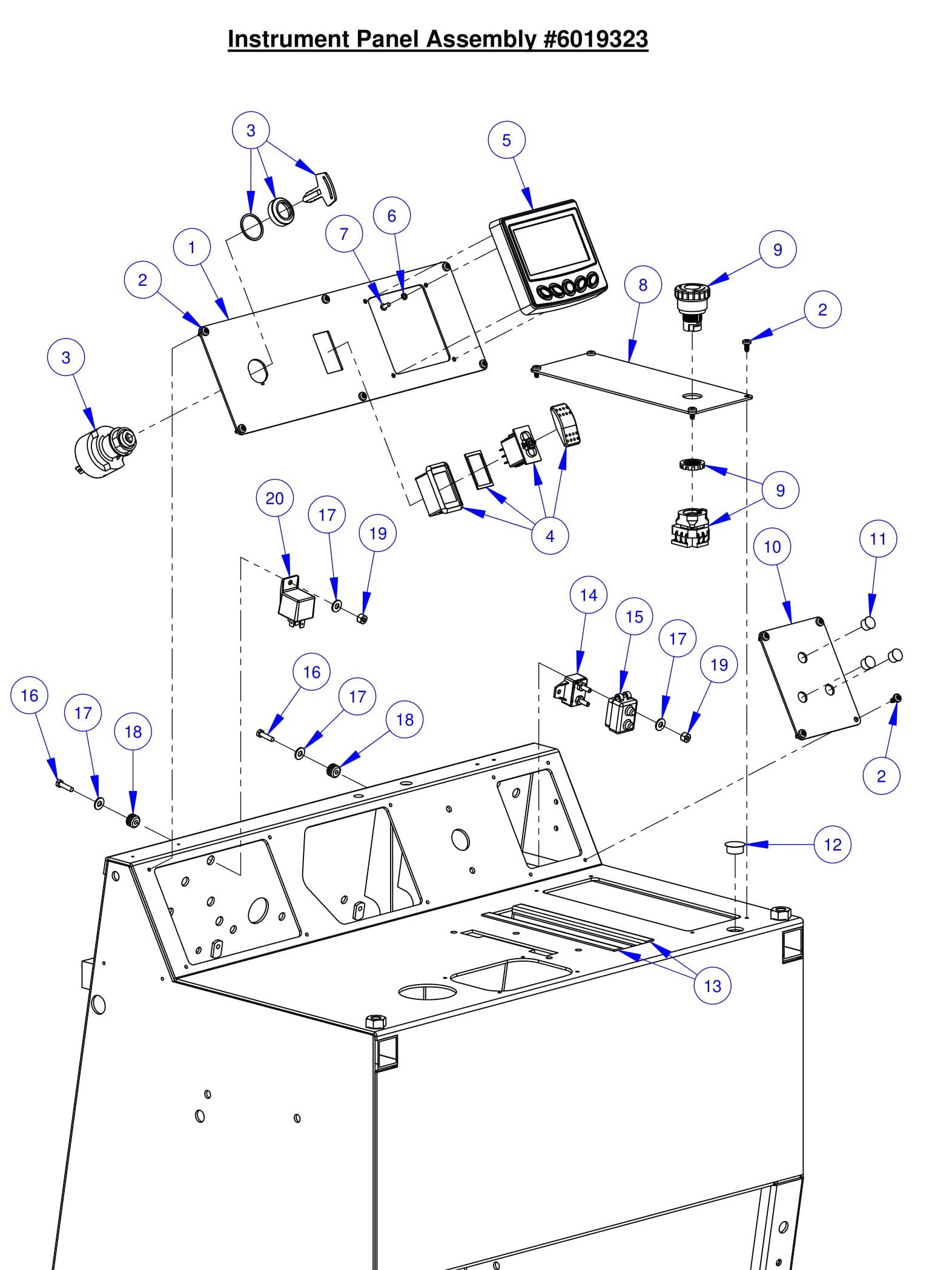

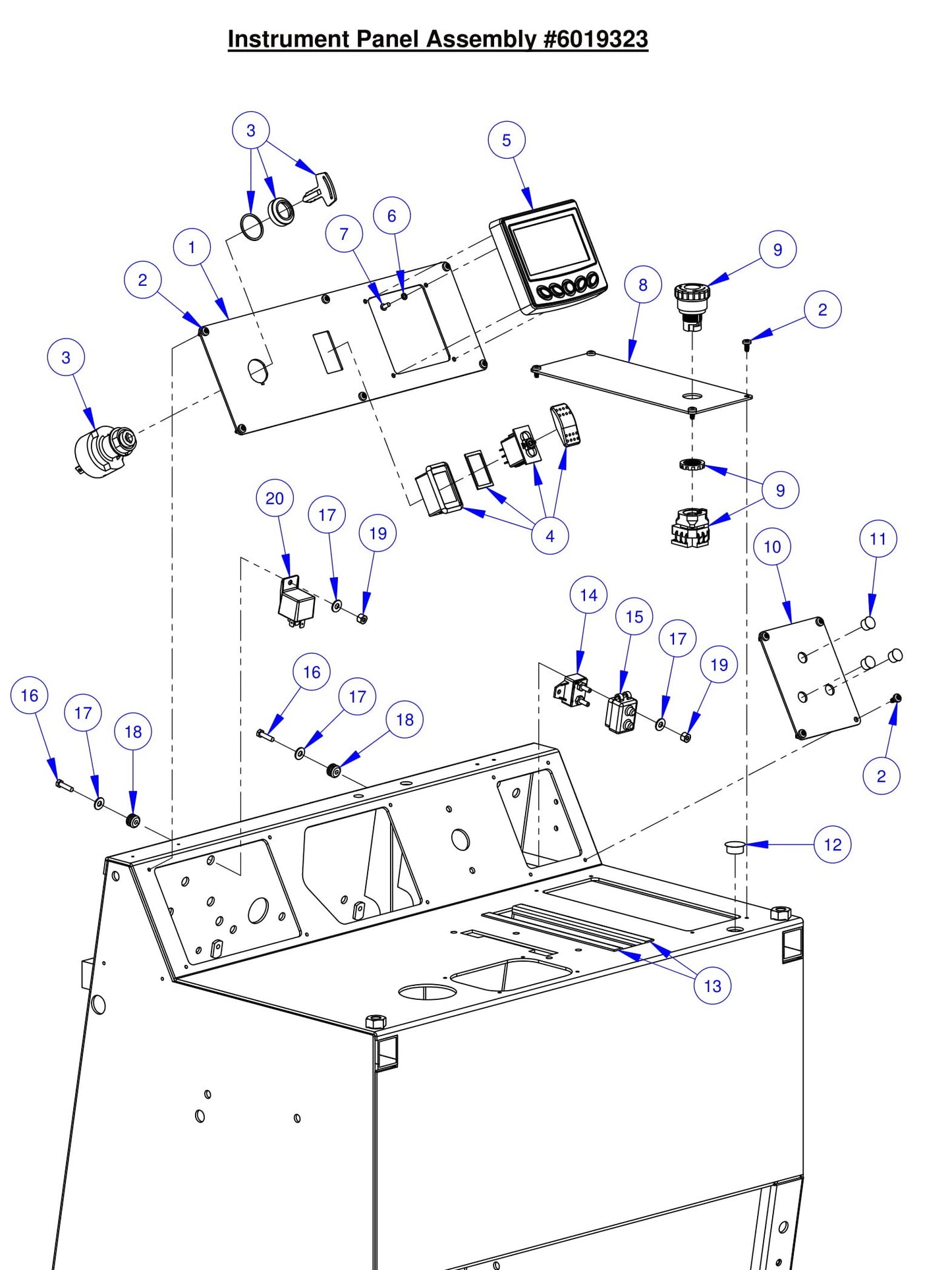

CC6561-3 Instrument Panel Assembly Parts

CC6561-3 Instrument Panel Assembly Parts

  • CC6561-3 Instrument Pannel Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6019244 Instrument Panel for CC6561-3 Concrete Saw Core Cut by Diamond Products
$44.34
2
2900021 Tap Screw, Pan Hd., #10-24 x 3/8" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
3
2705001 Ignition Switch & Keys for CC6561-3 Concrete Saw Core Cut by Diamond Products
$157.41
3
2705000 Ignition Keys Only (Pair) for CC6561-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
4
6019158 Rocker Switch Assembly for CC6561-3 Concrete Saw Core Cut by Diamond Products
$51.55
4
2800258 Rocker Switch Body for CC6561-3 Concrete Saw Core Cut by Diamond Products
$36.83
4
2800259 Rocker Switch Actuator for CC6561-3 Concrete Saw Core Cut by Diamond Products
$7.86
4
2800260 Rocker Mount Panel for CC6561-3 Concrete Saw Core Cut by Diamond Products
$9.94
4
2800261 Rocker Panel Gasket for CC6561-3 Concrete Saw Core Cut by Diamond Products
$4.36
5
2801040 Murphy Display for CC6561-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
6
2900677 Lock Washer, #8 Split for CC6561-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
7
2900114 Machine Screw, Rd. Hd., #8-32 x 3/8" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
8
6010019 Hydraulic Pump Cover Plate for CC6561-3 Concrete Saw Core Cut by Diamond Products
$25.54
9
2801367 E-Stop Switch for CC6561-3 Concrete Saw Core Cut by Diamond Products
$81.10
10
6010098 Switch Plate for CC6561-3 Concrete Saw Core Cut by Diamond Products
$13.67
11
2500204 Plug, 1/2" Hole for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
12
2500463 Plug, 3/4" Hole for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
13
6010101 Edge Trim 8-1/2" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$7.30
14
2801276 Circuit Breaker, 50 Amp for CC6561-3 Concrete Saw Core Cut by Diamond Products
$9.59
15
2800364 Circuit Breaker Boot for CC6561-3 Concrete Saw Core Cut by Diamond Products
$3.43
16
2900015 Machine Screw, Hex Hd., #10-24 x 3/4" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
17
2900016 Flat Washer, #10 USS for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
18
2506028 Grommet, 3/16" I.D. for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
19
2900017 Lock Nut, #10-24 Nylon for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
20
2800144 Relay, 50 Amp, 12V, SPDT for CC6561-3 Concrete Saw Core Cut by Diamond Products
$27.64
View full details
