CC6561-3 PTO Assembly Parts

CC6561-3 PTO Assembly Parts

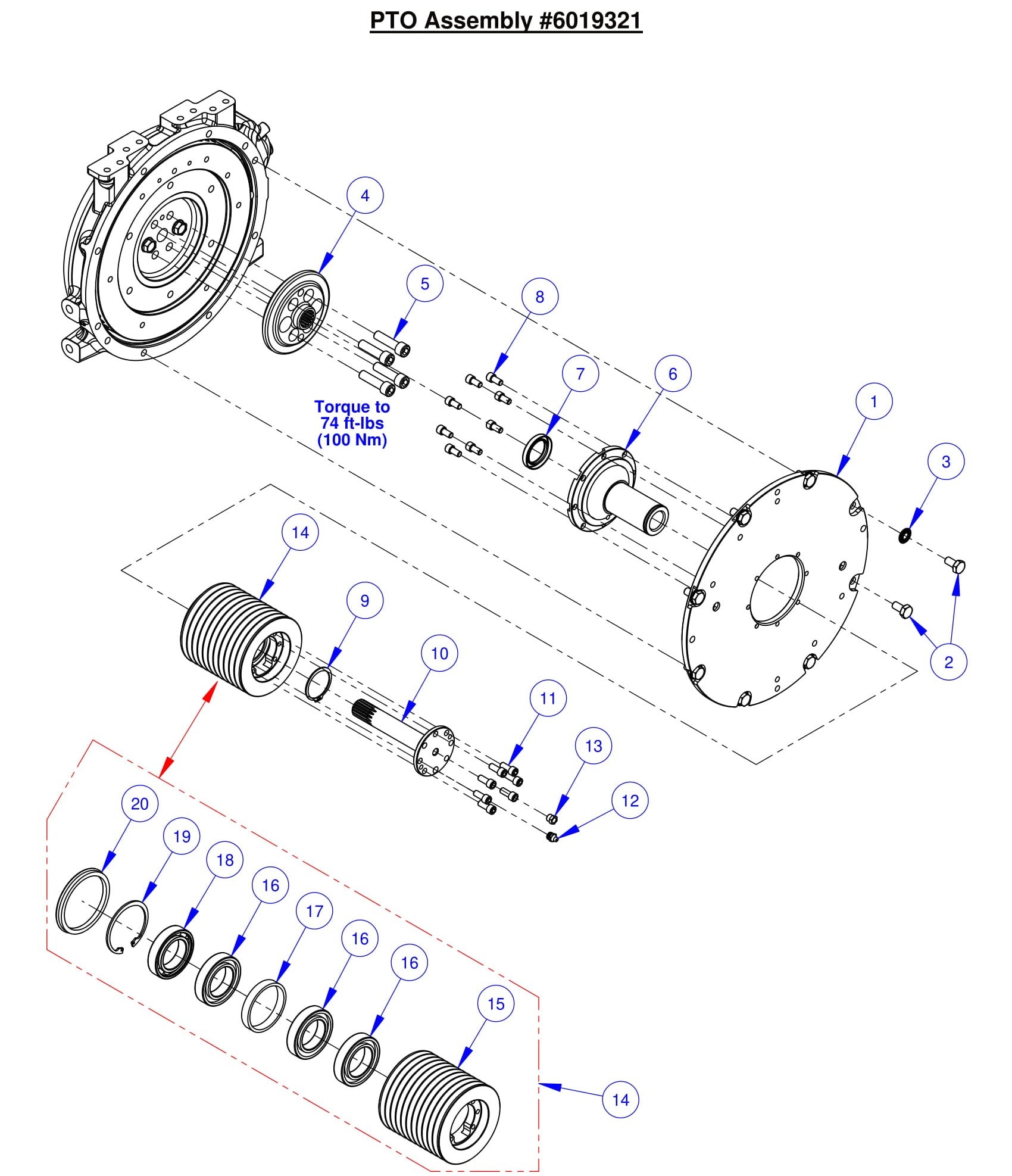

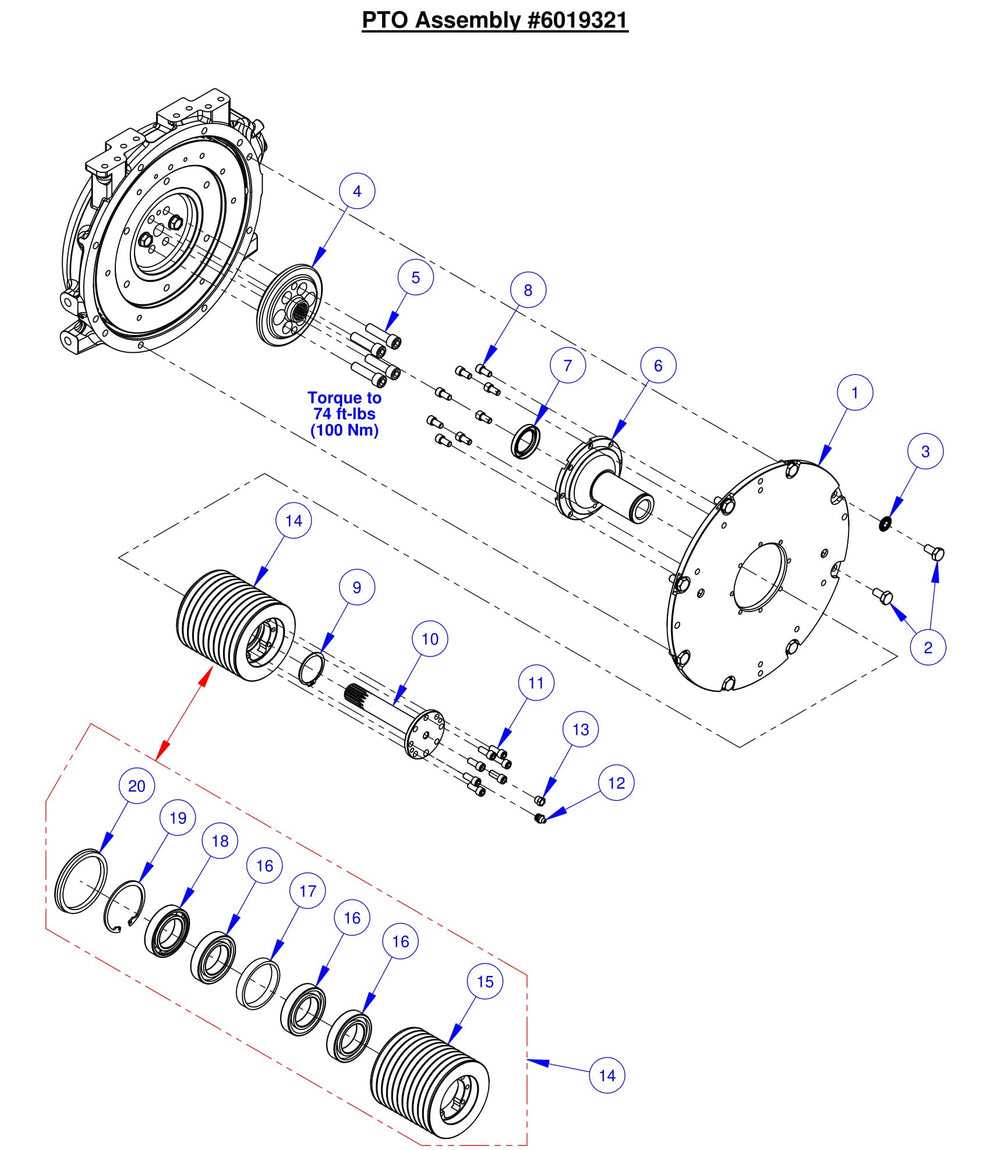

  • CC6561-3 PTO Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6019385 Inner Ring Support for CC6561-3 Concrete Saw Core Cut by Diamond Products
$594.99
2
2900314 Cap Screw, Hex Hd., M10-1.5 x 20mm for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
3
2900474 Belleville Washer, 3/8" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$2.34
4
6019351 Coupling Hub for CC6561-3 Concrete Saw Core Cut by Diamond Products
$542.52
5
2901799 Cap Screw, Soc. Hd., M12-1.25 x 45mm for CC6561-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
6
6019062 Shaft Support Sleeve for CC6561-3 Concrete Saw Core Cut by Diamond Products
$378.18
7
2503666 Seal, 1-3/8" x 2" x 5/16" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$32.28
8
2900898 Cap Screw, Soc. Hd., 5/16-18 x 5/8" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
9
2503758 Retaining Ring, 45mm External for CC6561-3 Concrete Saw Core Cut by Diamond Products
$11.82
10
6019064 Splined Drive Shaft for CC6561-3 Concrete Saw Core Cut by Diamond Products
$326.70
11
2900912 Cap Screw, Soc. Hd., 5/16-18 x 3/4" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
12
2900062 Grease Fitting, 1/8" NPT for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
13
3201998 Breather Vent, 1/8" NPT for CC6561-3 Concrete Saw Core Cut by Diamond Products
$8.35
14
6019183 Sheave Assembly for CC6561-3 Concrete Saw Core Cut by Diamond Products
$509.85
15
6019157 Sheave, 4.75" x 11 Groove for CC6561-3 Concrete Saw Core Cut by Diamond Products
$425.70
16
2503760 Ball Bearing, 45 x 75 x 16 open for CC6561-3 Concrete Saw Core Cut by Diamond Products
$17.69
17
6019066 Bearing Spacer, 75 x 12 for CC6561-3 Concrete Saw Core Cut by Diamond Products
$28.51
18
2503759 Ball Bearing, 45 x 75 x 16 w/seal for CC6561-3 Concrete Saw Core Cut by Diamond Products
$13.53
19
2503757 Retaining Ring, 75mm Internal for CC6561-3 Concrete Saw Core Cut by Diamond Products
$11.17
20
2503756 Seal, 80mm V-Ring for CC6561-3 Concrete Saw Core Cut by Diamond Products
$22.60
View full details
