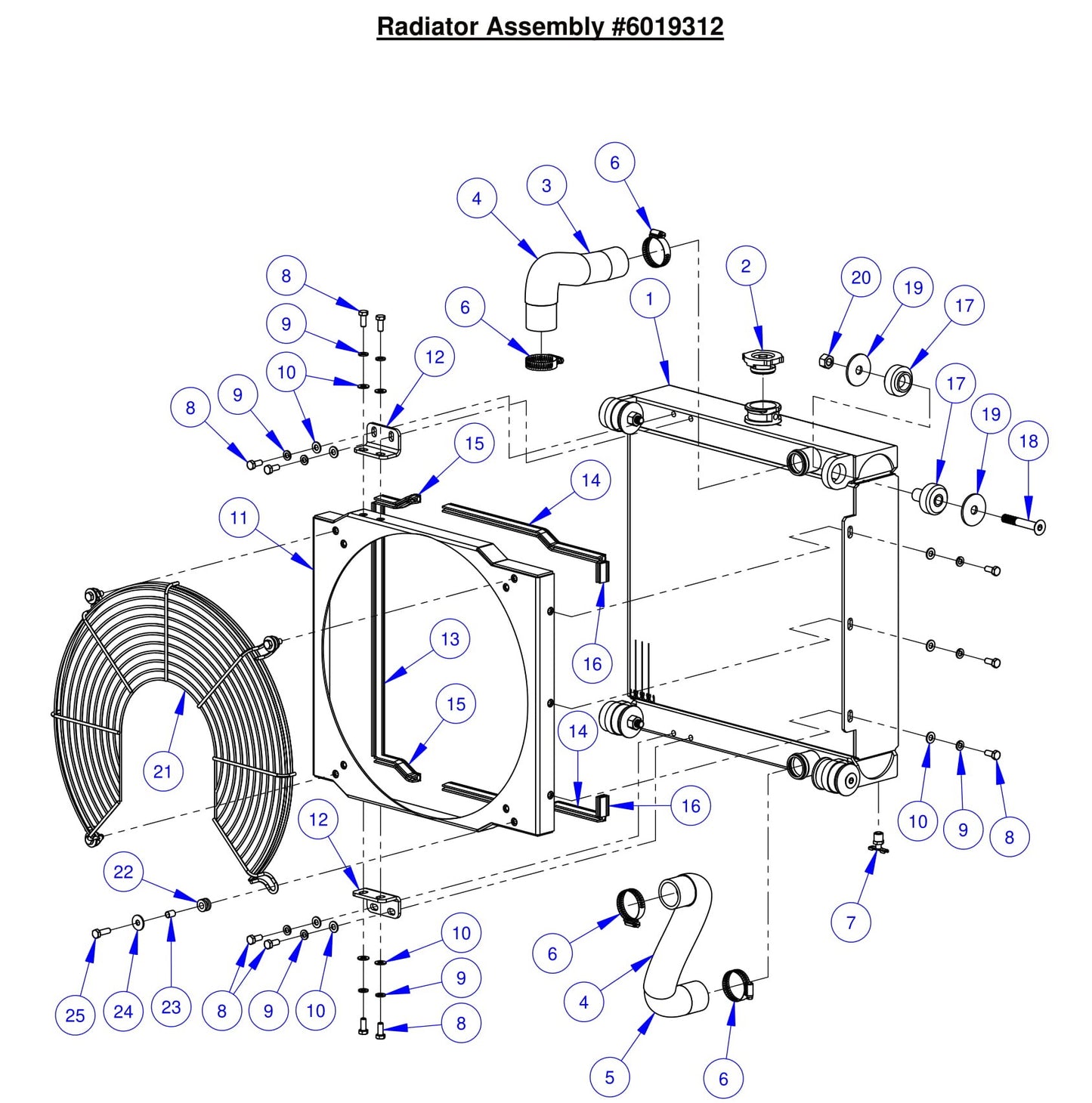

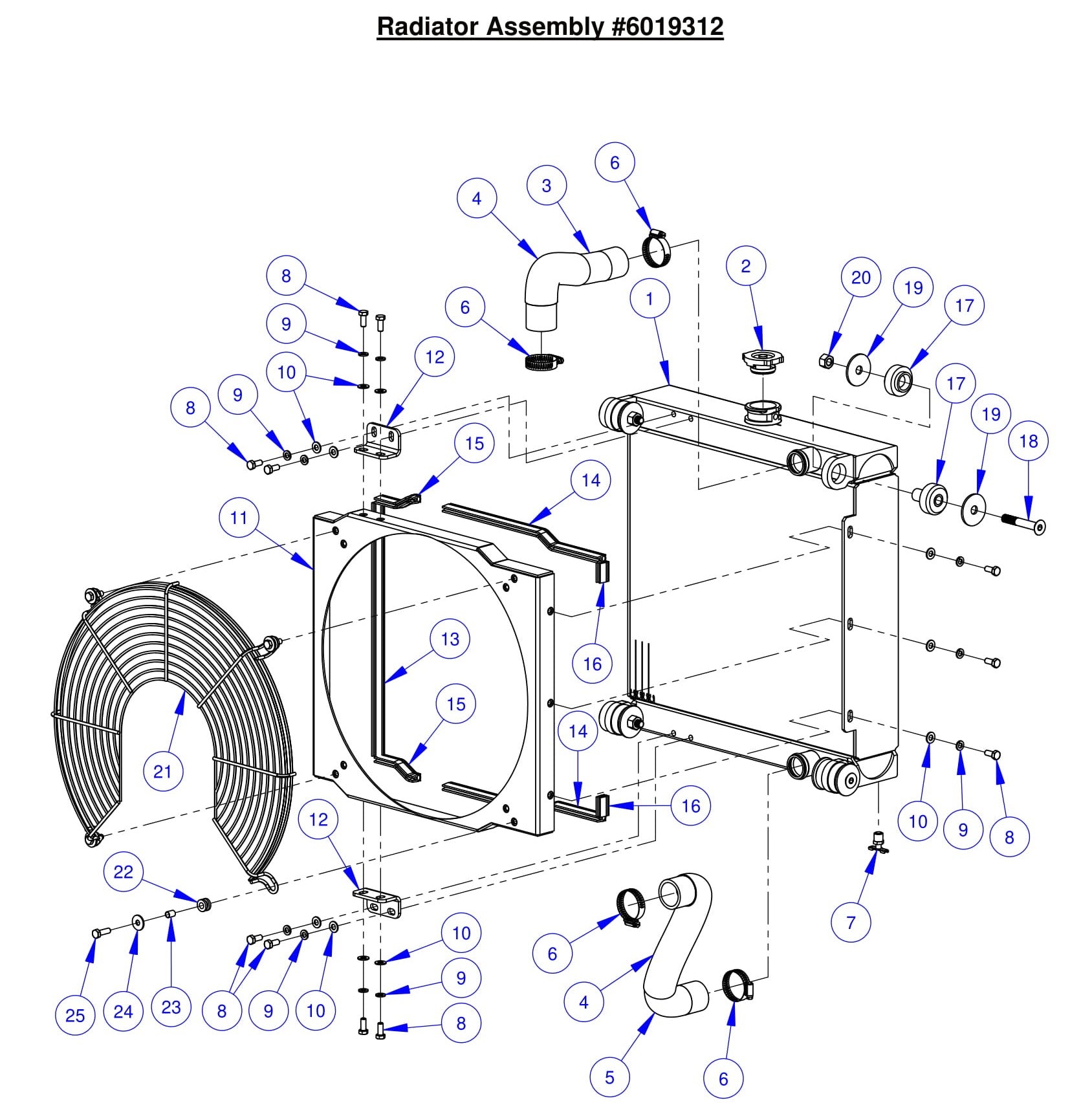

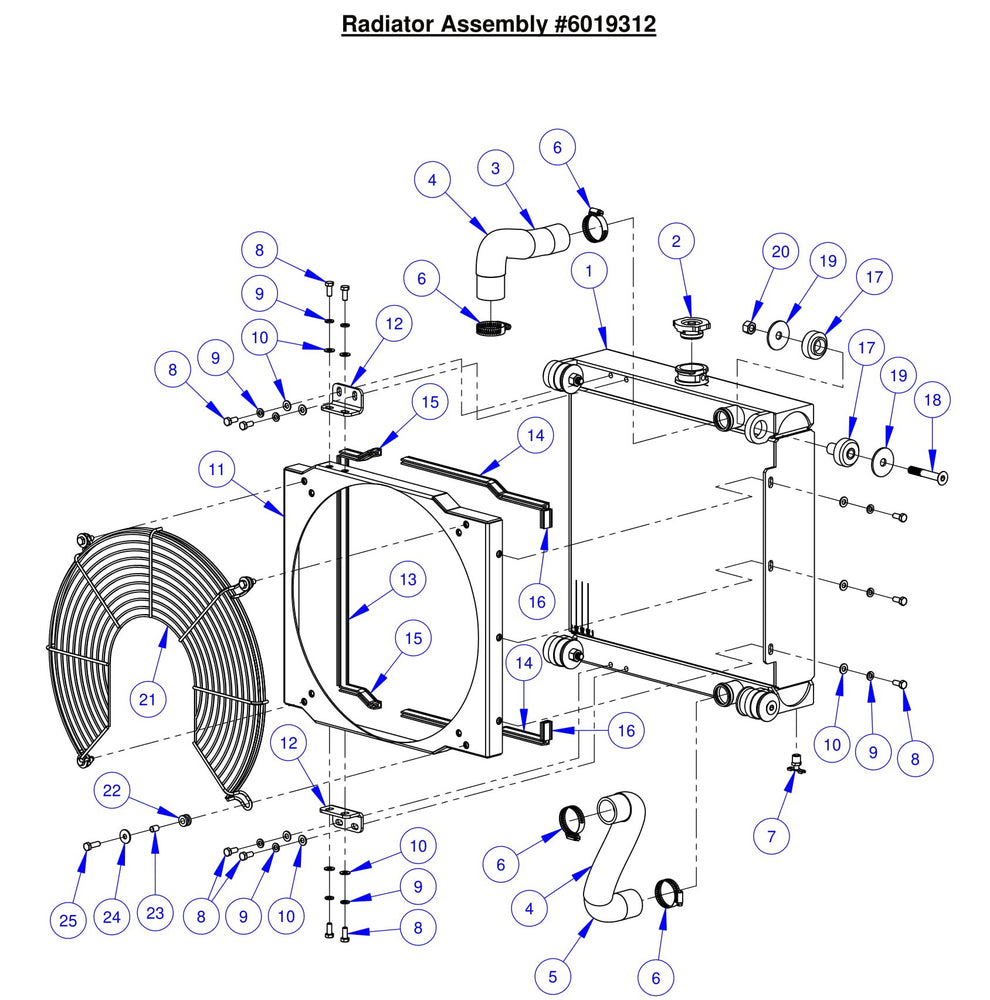

CC6561-3 Radiator Assembly Parts

CC6561-3 Radiator Assembly Parts

  • CC6561-3 Radiator Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2503664 Radiator for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1,593.90
2
2502381 Radiator Cap for CC6561-3 Concrete Saw Core Cut by Diamond Products
$29.05
3
3202088 Radiator Hose, Upper for CC6561-3 Concrete Saw Core Cut by Diamond Products
$80.71
4
6019264 Hose Sleeving, 8" Long for CC6561-3 Concrete Saw Core Cut by Diamond Products
$12.38
5
3202089 Radiator Hose, Lower for CC6561-3 Concrete Saw Core Cut by Diamond Products
$47.94
6
3202142 Hose Clamp #24 for CC6561-3 Concrete Saw Core Cut by Diamond Products
$3.73
7
3200035 Petcock, 1/4" NPT for CC6561-3 Concrete Saw Core Cut by Diamond Products
$12.00
8
2900019 Cap Screw, Hex Hd., 5/16-18 x 3/4" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
9
2900031 Lock Washer, 5/16" Split for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
10
2900022 Flat Washer, 5/16" SAE for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
11
Diamond Products FAN SHROUD (CC6561) 6019140
$234.63
12
Retainer Bracket, Shroud For CC6571 Saw 6019059 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$29.16
13
Diamond Products EDGE TRIM SEAL 16-1/4" 6019111
$21.15
14
Diamond Products EDGE TRIM SEAL 13-3/4" 6019112
$18.68
15
Diamond Products EDGE TRIM SEAL 3-1/2"LONG 6019113
$10.15
16
Diamond Products EDGE TRIM SEAL 1-1/4"LONG 6019114
$7.75
17
Diamond Products VIBRATION ISOLATOR 3PIECE FOR 1/2"(M12) BOLT 2503669
$36.45
18
Diamond Products M12 X 80 FLAT HD CAPSCREW 2901391
$10.76
19
Diamond Products 1/2" X 2" FENDER WASHER 2900854
$9.40
20
Lock Nut, M12-1.75 Nylon Insert 2900327 for CC2500 Saw by Core Cut Diamond Products
$2.99
21
Diamond Products FAN GUARD (CC7574) 2503705
$207.90
22
Diamond Products GROMMET, 3/8"ID FOR 3/16" THICK PANEL 2503711
$6.99
24
M8 Fender WASHER(24MM Od) 2900383 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$3.99
25
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
23
Call for Price call for price call for price
