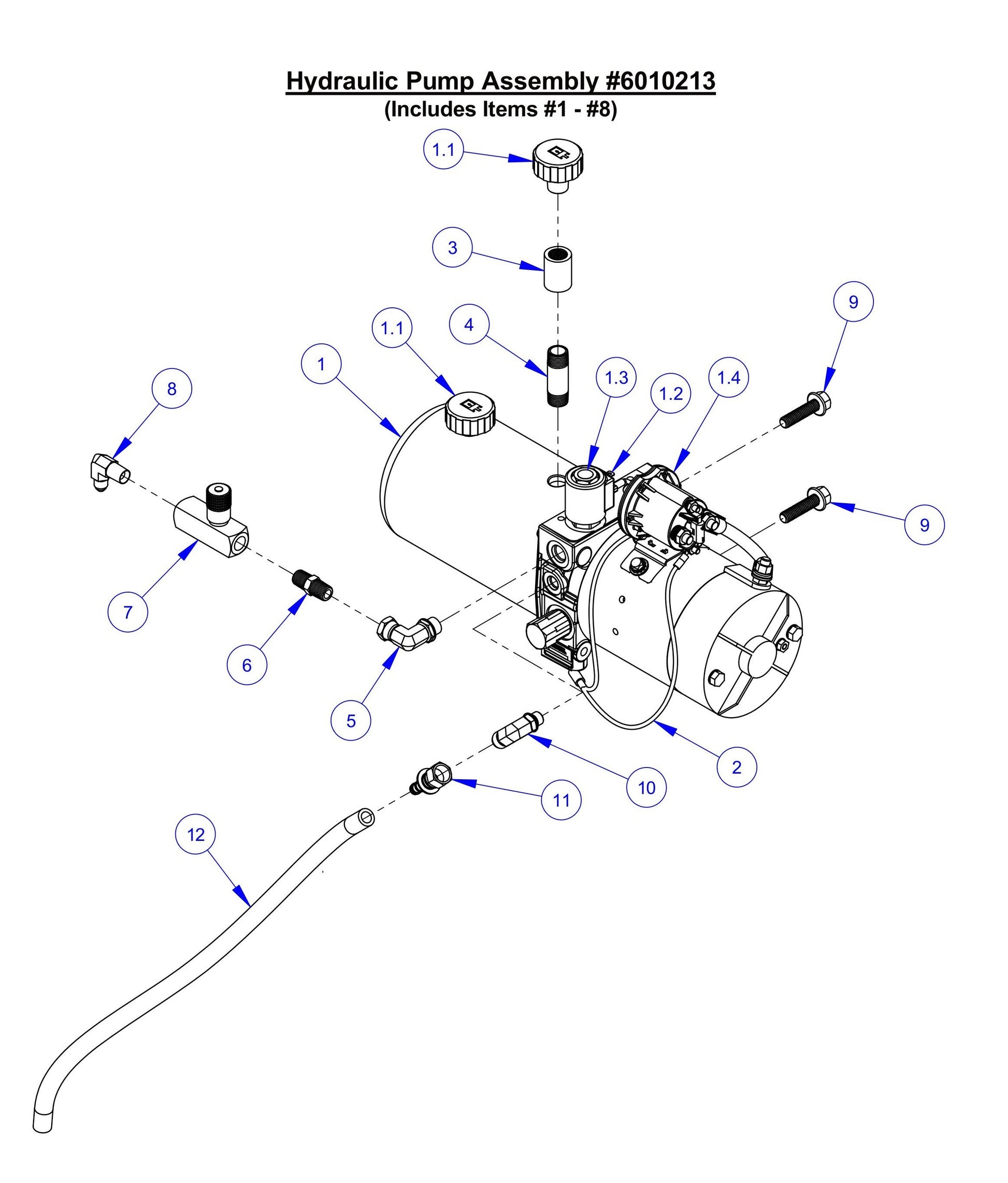

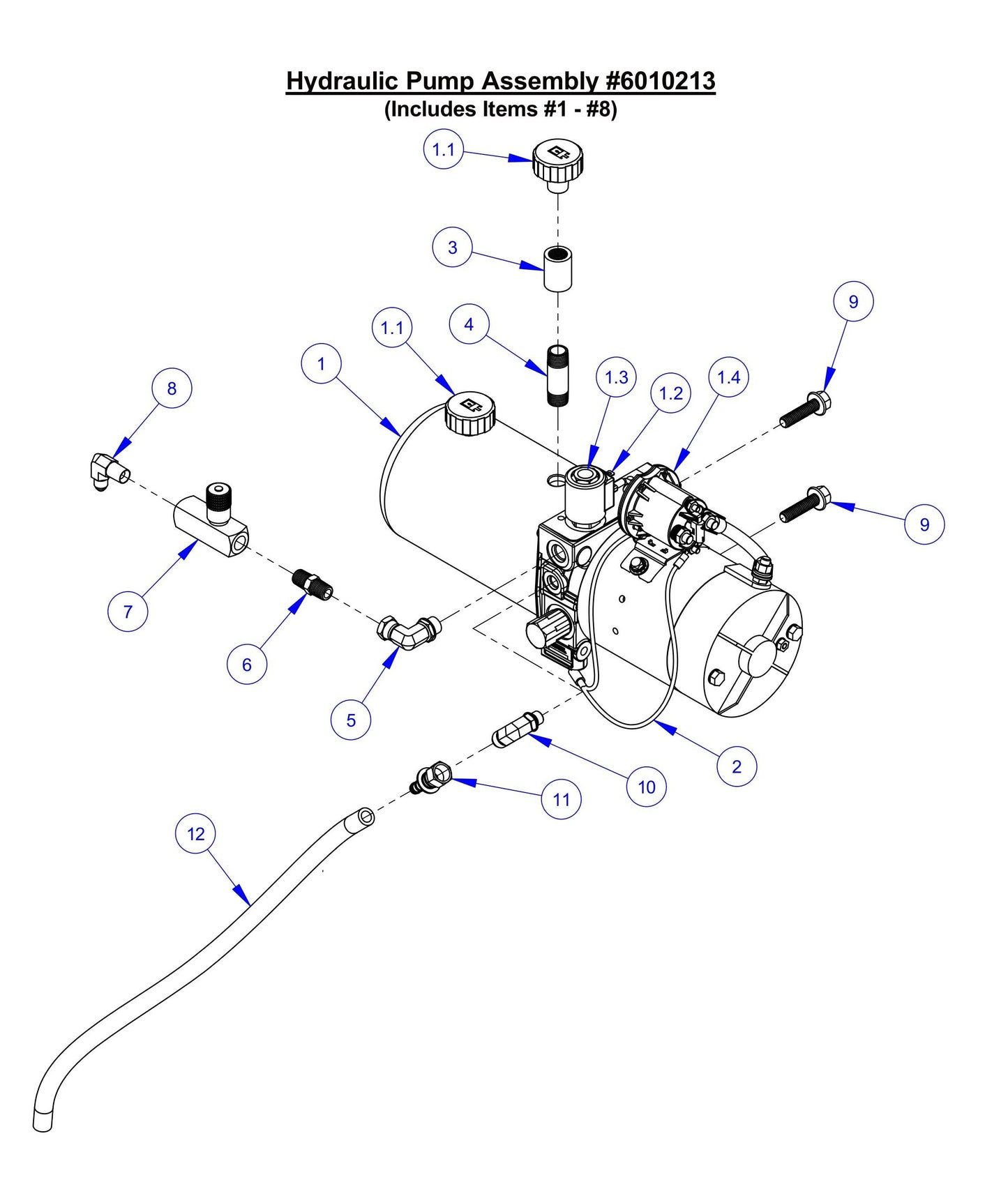

CC6561 Hydraulic Pump Assembly Parts

CC6561 Hydraulic Pump Assembly Parts

  • CC6561 Hydraulic Pump Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1.1
2700321 Breather Cap for CC6540E CONCRETE SAW Core Cut by Diamond Products
$23.67
1.2
2700243 Valve Coil for CC6561 Concrete Saw Core Cut by Diamond Products
$48.12
1.3
2700244 Valve Stem for CC6561 Concrete Saw Core Cut by Diamond Products
$126.72
1.4
2709904 Solenoid Start Switch fits CC6571 by Core Cut Diamond Products
$107.00
3
3200120 Pipe Coupling, 3/8" NPT for CC6561 Concrete Saw Core Cut by Diamond Products
$31.81
4
3200123 Pipe Nipple, 3/8" NPT x 2" for CC6561 Concrete Saw Core Cut by Diamond Products
$15.08
5
3200115 Elbow, 3/8" O-Ring to 1/4" F. Pipe for CC6561 Concrete Saw Core Cut by Diamond Products
$13.99
6
3200060 Hex Nipple, 1/4" NPT for CC6561 Concrete Saw Core Cut by Diamond Products
$6.99
7
3200056 Flow Control Valve, 1/4" NPT for CC6561 Concrete Saw Core Cut by Diamond Products
$119.00
8
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CC6561 Concrete Saw Core Cut by Diamond Products
$9.37
9
2901595 Cap Screw, Hex Flange Hd., 3/8-16 x 1-1/2" for CC6561 Concrete Saw Core Cut by Diamond Products
$6.99
10
3200116 Elbow, 1/4" O-Ring to 3/8" M. JIC for CC6561 Concrete Saw Core Cut by Diamond Products
$10.36
11
3200046 Fitting, 3/8" F. JIC to 3/8" Push Lock for CC6561 Concrete Saw Core Cut by Diamond Products
$8.82
12
6010059 Clear Hose, 3/8" I.D. x 19" for CC6561 Concrete Saw Core Cut by Diamond Products
$12.05
1
Call for Price call for price call for price
2
Call for Price call for price call for price
View full details
