CC6561, CC6561-3, CC6571, CC6571-3 Front Axle Assembly Parts

CC6561, CC6561-3, CC6571, CC6571-3 Front Axle Assembly Parts

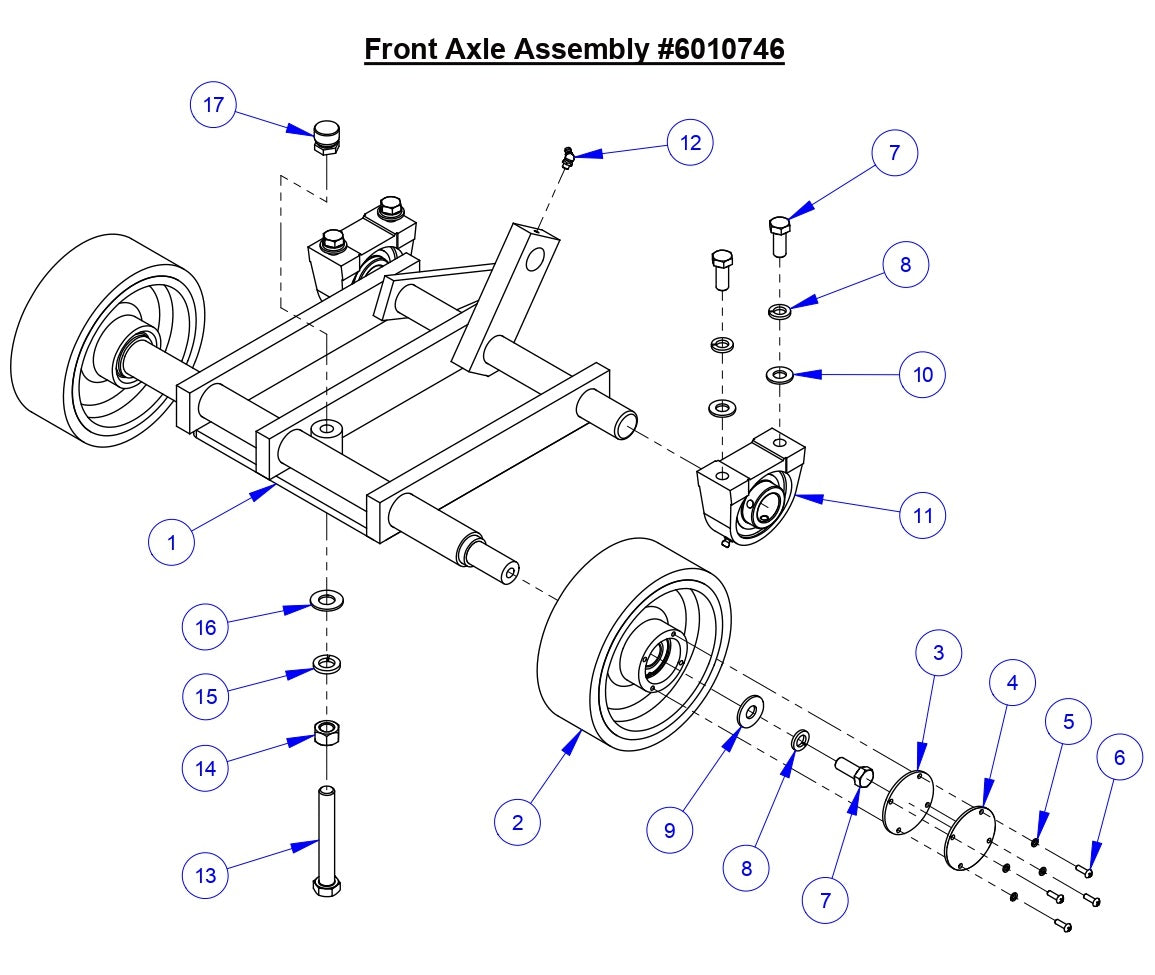

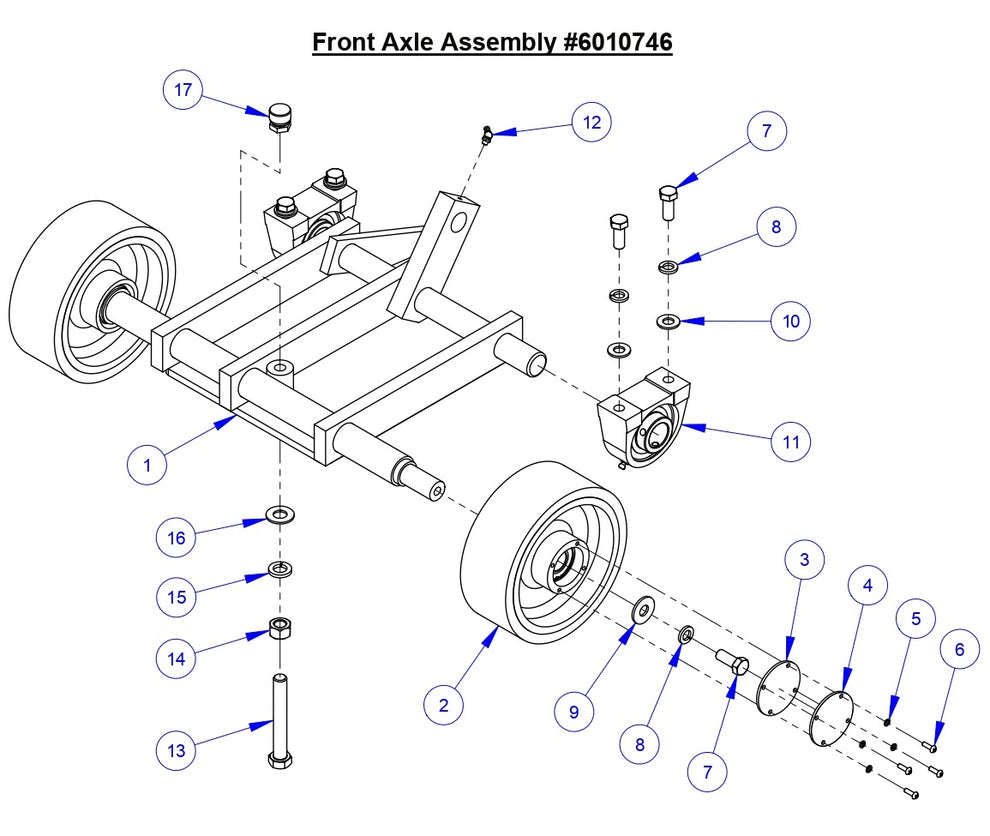

  • CC6561/CC6561-3/CC6571/CC6571-3 Front Axle Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010747 Front Axle Weldment for CC6561 Concrete Saw Core Cut by Diamond Products
$578.40
2
6010581 Wheel Assembly, 8" Front for CC6561 Concrete Saw Core Cut by Diamond Products
$325.71
3
2501393 Wheel Cover Gasket for CC6561 Concrete Saw Core Cut by Diamond Products
$8.93
4
6010536 Wheel Cover for CC6561 Concrete Saw Core Cut by Diamond Products
$13.47
5
2900038 Lock Washer, #10 Split for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900025 Cap Screw, Hex Hd., 1/2-13 x 1-1/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
8
2900084 Lock Washer, 1/2" Split for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900127 Flat Washer, 1/2" USS for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900058 Flat Washer, 1/2" SAE for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
11
2500158 Pillow Block Bearing 1-1/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$47.11
12
2900184 Grease Fitting, 1/4" NPT x 45 degree for CC6561 Concrete Saw Core Cut by Diamond Products
$4.99
13
2900514 Tap Bolt, Hex Hd., 5/8-11 x 4-1/2" for CC6561 Concrete Saw Core Cut by Diamond Products
$15.07
14
2900112 Hex Nut, 5/8-11 for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
15
2900113 Lock Washer, 5/8" Split for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900002 Flat Washer, 5/8" SAE for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
17
2900446 Swivel Pad Nut, 5/8-11 for CC6561 Concrete Saw Core Cut by Diamond Products
$28.40
