CC6561, CC6561-3, CC6571, CC6571-3 Linkage Assembly Parts

CC6561, CC6561-3, CC6571, CC6571-3 Linkage Assembly Parts

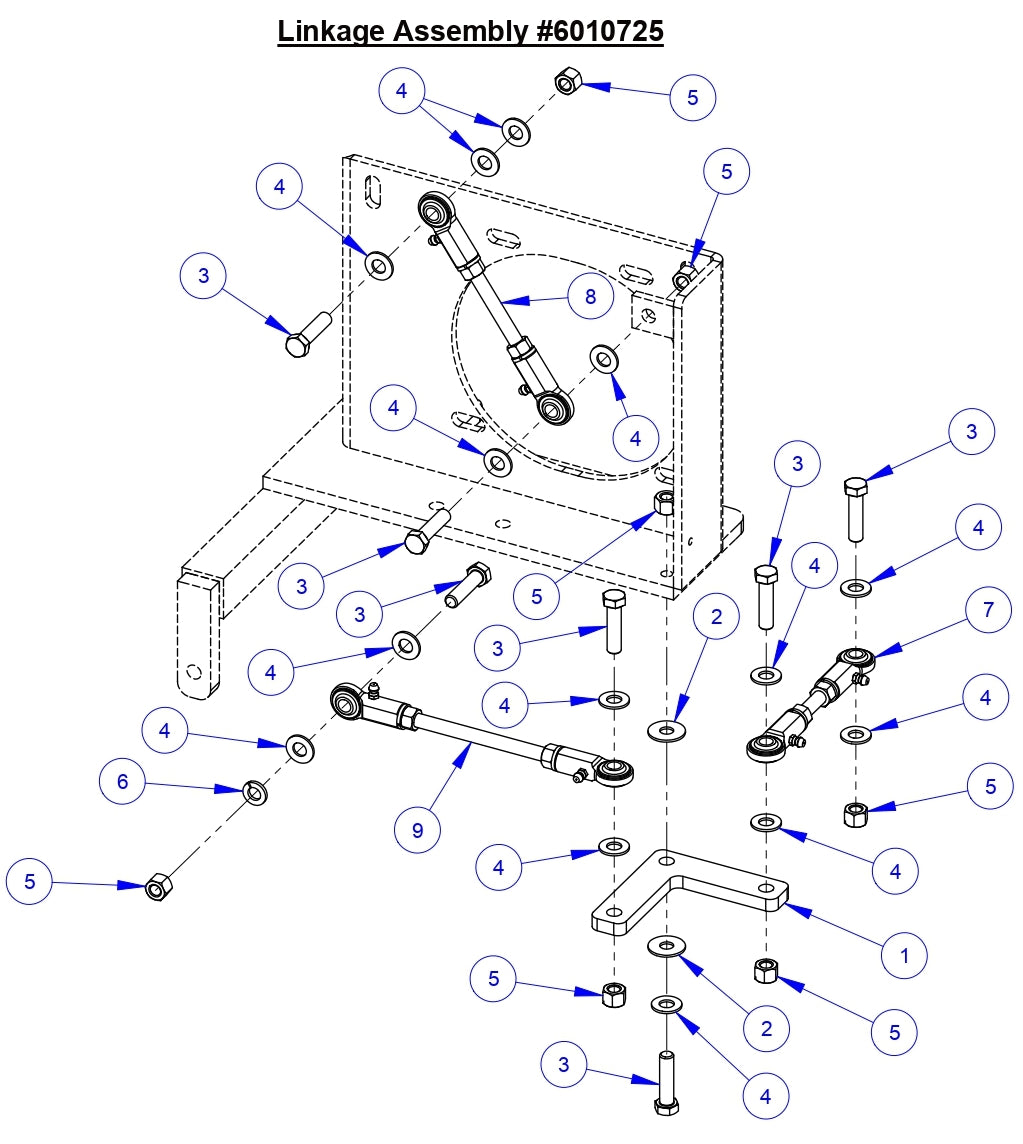

  • CC6561/CC6561-3/CC6571/CC6571-3 Linkage Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010067 Bell Crank for CC6561 Concrete Saw Core Cut by Diamond Products
$17.33
2
2900153 Friction Washer, 3/8" for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
3
2900029 Cap Screw, Hex Hd., 3/8-16 x 1-1/2" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
4
2900014 Flat Washer, 3/8" SAE for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900018 Locknut, 3/8-16, Nylon for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
6010704 Linkage Assembly 5-1/8" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$72.64
8
6010705 Linkage Assembly 6-1/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$77.63
9
6010706 Linkage Assembly 8" for CC6561 Concrete Saw Core Cut by Diamond Products
$72.64
View full details
