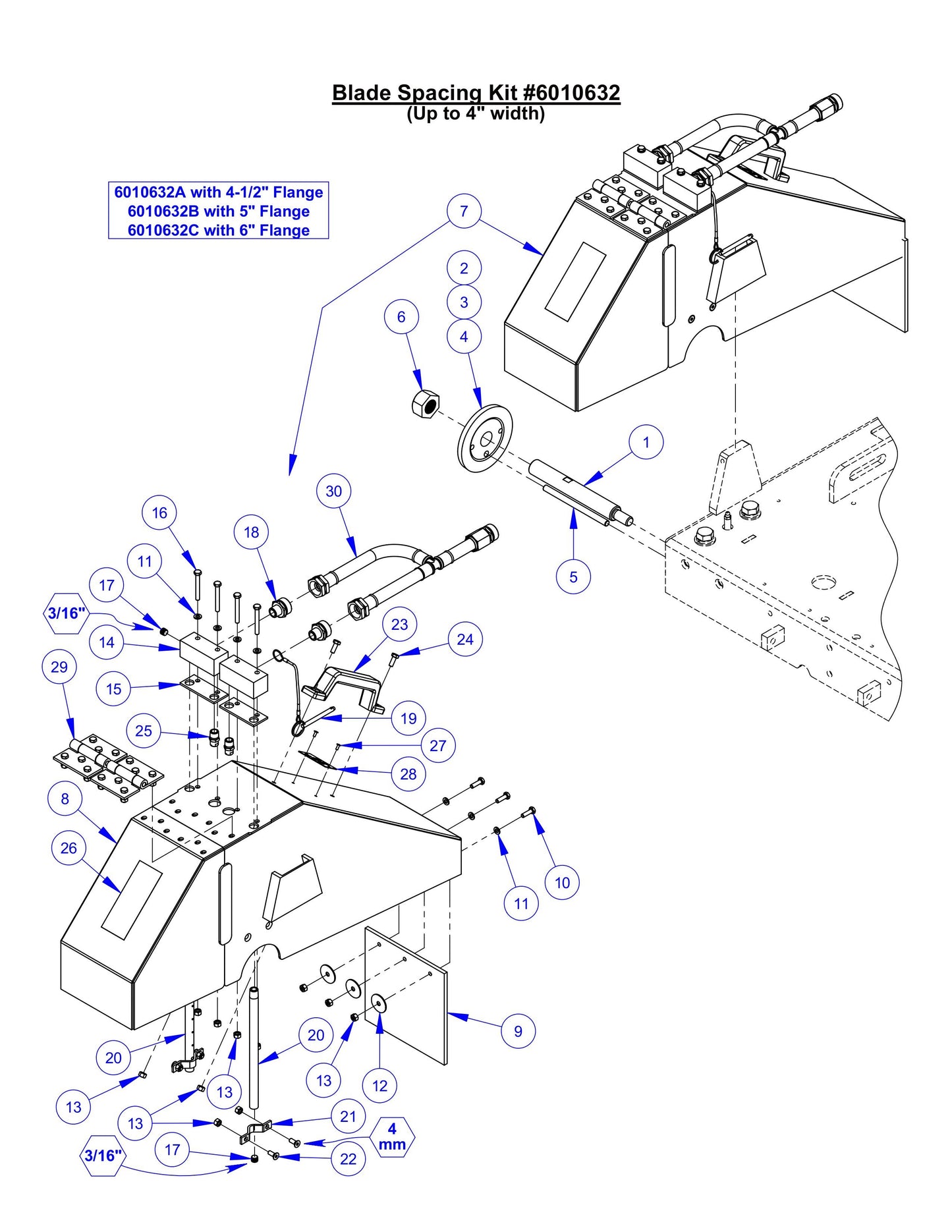

CC6561, CC6561-3, CC6571, CC6571-3 Optional Blade Spacing Assembly (Up to 4" width) Parts

CC6561, CC6561-3, CC6571, CC6571-3 Optional Blade Spacing Assembly (Up to 4" width) Parts

  • CC6561, CC6561-3, CC6571, CC6571-3 Optional Blade Spacing Assembly (Up to 4" width) Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010309 Blade Shaft Extension, Left Hand Thread for CC6540E CONCRETE SAW Core Cut by Diamond Products
$67.33
2
6010187 Outer Flange 4-1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$136.62
3
6011184 Outer Flange 5"X3 fits CC6571 by Core Cut Diamond Products
$164.34
4
6010335 Outer Flange 6" fits CC6571 by Core Cut Diamond Products
$196.02
5
Drive Pin 3/8"DIA X 5.5" 6010359 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$18.11
6
2900212 Hex Nut, 1"-14 Left Hand for CC3535 Concrete Saw Core Cut by Diamond Products
$12.91
7
20" Wide Blade Guard Assy (6-1/2" Wide) Tapered Mount 6010622 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$1,087.02
8
6010623 20" Wide Blade Guard Front & Rear Only for CC6540E CONCRETE SAW Core Cut by Diamond Products
$603.90
9
6010366 Splash Flap for CC3500J Concrete Saw Core Cut by Diamond Products
$44.04
10
2900310 Cap Screw, Hex Hd., M6-1.0 x 20mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
11
2901494 Flat Washer M6 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
2900083 Fender Washer 1/4" x 1-1/4" 1/4" x 1-1/4" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900302 Lock Nut Nylon, M6 for CC1200 Concrete Saw Core Cut by Diamond Products
$2.99
14
6048123 Water Manifold for CC1113-XL Concrete Saw Core Cut by Diamond Products
$27.11
15
2500829 Manifold Gasket for CC1200 Concrete Saw Core Cut by Diamond Products
$6.99
16
2901355 Cap Screw, Hex Hd., M6-1.0 x 50mm for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
17
3200001 Plug 1/8" NPT for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
18
3200002 Fitting 3/8" M. Pipe to 3/4" M. Garden for CC5555-3 Concrete Saw Core Cut by Diamond Products
$22.32
19
2900278 Lanyard with Lock Pin for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$20.52
20
6010085 Water Tube for 20" Guard for CC3500J Concrete Saw Core Cut by Diamond Products
$33.01
21
6048155 Water Tube Clamp for CC1100 Concrete Saw Core Cut by Diamond Products
$3.99
22
2900308 Cap Screw, Flat Hd., M6-1.0 x 16mm for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
23
Diamond Products GRAB HANDLE 2506125
$36.48
24
2900341 Cap Screw, Hex Hd., M6-1.0 x 16mm for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$2.99
25
3200208 Nozzle, 1/4" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$34.44
26
1800001 Warning Label for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
27
2900287 Rivet, 1/8" Dia. for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
28
1801369D Blade Guard Size Tag for CC3500J Concrete Saw Core Cut by Diamond Products
$14.58
29
Hinge Assembly (metric) For 18"-24" Blade Guards 6048027 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$46.04
30
6010588 Hose Assembly, Dual Inlet for CC3500J Concrete Saw Core Cut by Diamond Products
$111.00
