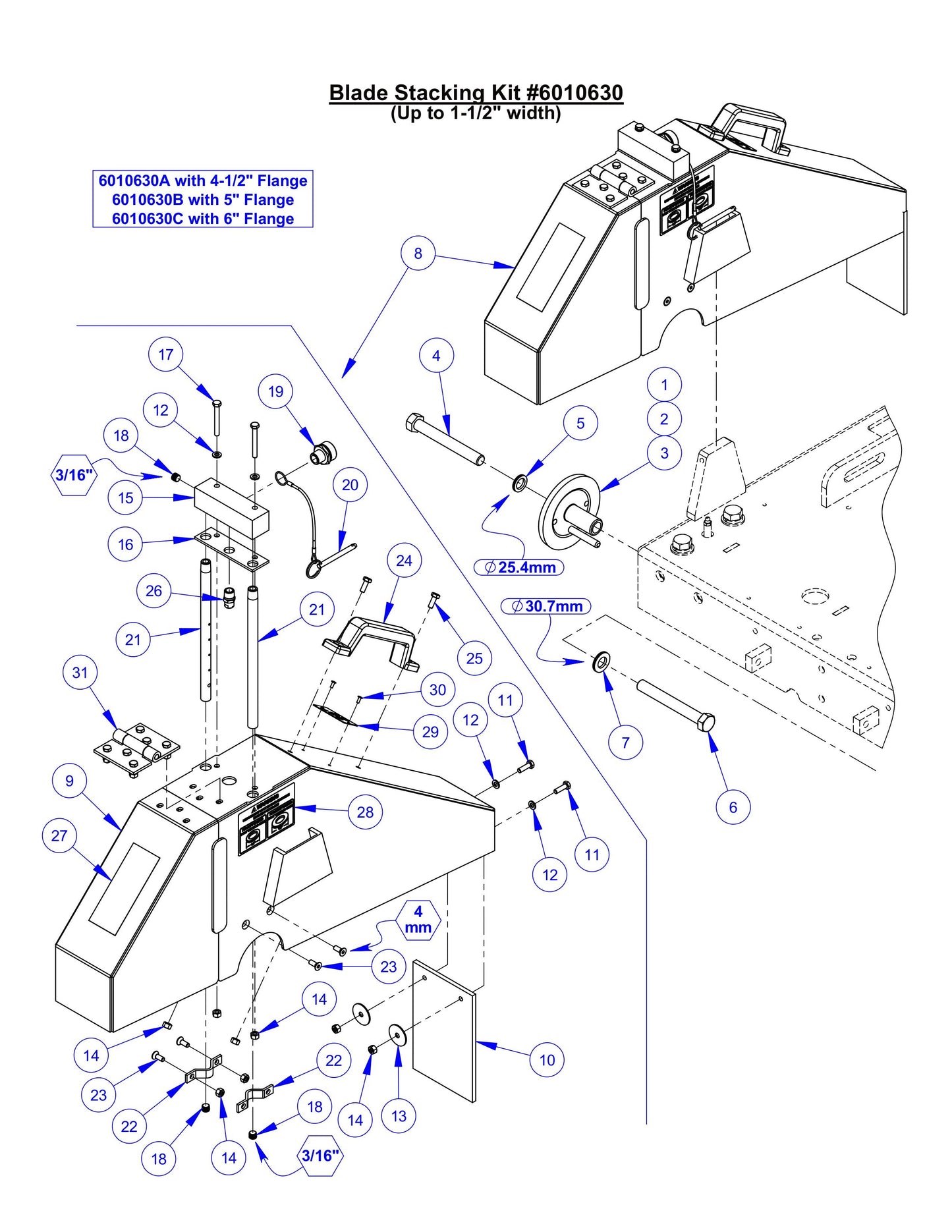

CC6561, CC6561-3, CC6571, CC6571-3 Optional Blade Stacking Assembly (Upto 1-1/2" width) Parts

CC6561, CC6561-3, CC6571, CC6571-3 Optional Blade Stacking Assembly (Upto 1-1/2" width) Parts

  • CC6561, CC6561-3, CC6571, CC6571-3 Optional Blade Stacking Assembly (Upto 1-1/2" width) Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Outer Flange 4-1/2" Dia *special* W/ 3" Long Pin 6010159 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$263.34
2
6011183 Outer Flange 5"X3 with Pin fits CC6571 by Core Cut Diamond Products
$279.18
3
6010477 Outer Flange 6"X3 with Pin fits CC6571 by Core Cut Diamond Products
$298.98
4
2900210 Cap Screw, Hex Hd., 5/8"-11 x 5" LH for CC3500J Concrete Saw Core Cut by Diamond Products
$41.00
5
2901569 Wedge Lock Washer Pair 5/8" LH for CC5555-3 Concrete Saw Core Cut by Diamond Products
$15.10
6
2900502 Cap Screw, Hex Hd., 5/8-11 x 5" for CC7874XL Concrete Saw Core Cut by Diamond Products
$10.76
7
2900412 Wedge Lock Washer Pair 5/8" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$12.31
8
6010620 20" Wide Blade Guard Assembly for CC3500J Concrete Saw Core Cut by Diamond Products
$891.00
9
6010621 20" Wide Blade Guard Front & Rear Only for CC3500J Concrete Saw Core Cut by Diamond Products
$589.05
10
6010296 Splash Flap for CC3500J Concrete Saw Core Cut by Diamond Products
$33.20
11
2900310 Cap Screw, Hex Hd., M6-1.0 x 20mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
12
2901494 Flat Washer M6 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900083 Fender Washer 1/4" x 1-1/4" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900302 Lock Nut, M6-1.0 Nylon Insert for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
15
6010288 Water Manifold for CC3500J Concrete Saw Core Cut by Diamond Products
$42.13
16
2500988 Water Manifold Gasket for CC3500J Concrete Saw Core Cut by Diamond Products
$8.66
17
2901355 Cap Screw, Hex Hd., M6-1.0 x 50mm for CC6540E CONCRETE SAW Core Cut by Diamond Products
$2.99
18
3200001 Plug 1/8" NPT for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
19
3200002 Fitting 3/8" M. Pipe to 3/4" M. Garden for CC5555-3 Concrete Saw Core Cut by Diamond Products
$22.32
20
2900278 Lanyard with Lock Pin for CC3500J Concrete Saw Core Cut by Diamond Products
$21.00
21
6010085 Water Tube for 20" Guard for CC3500J Concrete Saw Core Cut by Diamond Products
$33.01
22
6048155 Water Tube Clamp for CC1100 Concrete Saw Core Cut by Diamond Products
$3.99
23
2900308 Cap Screw, Flat Hd., M6-1.0 x 16mm for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
24
Diamond Products GRAB HANDLE 2506125
$36.48
25
2900341 Cap Screw, Hex Hd., M6-1.0 x 16mm for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$2.99
26
3200208 Nozzle, 1/4" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$34.44
27
1800001 Warning Label for CC1507E Basement Saw Core Cut by Diamond Product
$3.99
28
1802090 Label Wedge Locking Washer for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
29
Blade Guard Size Tag 20" 1801369D Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$14.58
30
2900287 Rivet, 1/8" Dia. for CC3520E/CC3530E Concrete Saw Core Cut by Diamond Products
$2.99
31
Hinge Assembly (metric) For 18"-24" Blade Guards 6048027 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$46.04
View full details
