CC6571, CC6561 Belt Tensioner Assembly Parts

CC6571, CC6561 Belt Tensioner Assembly Parts

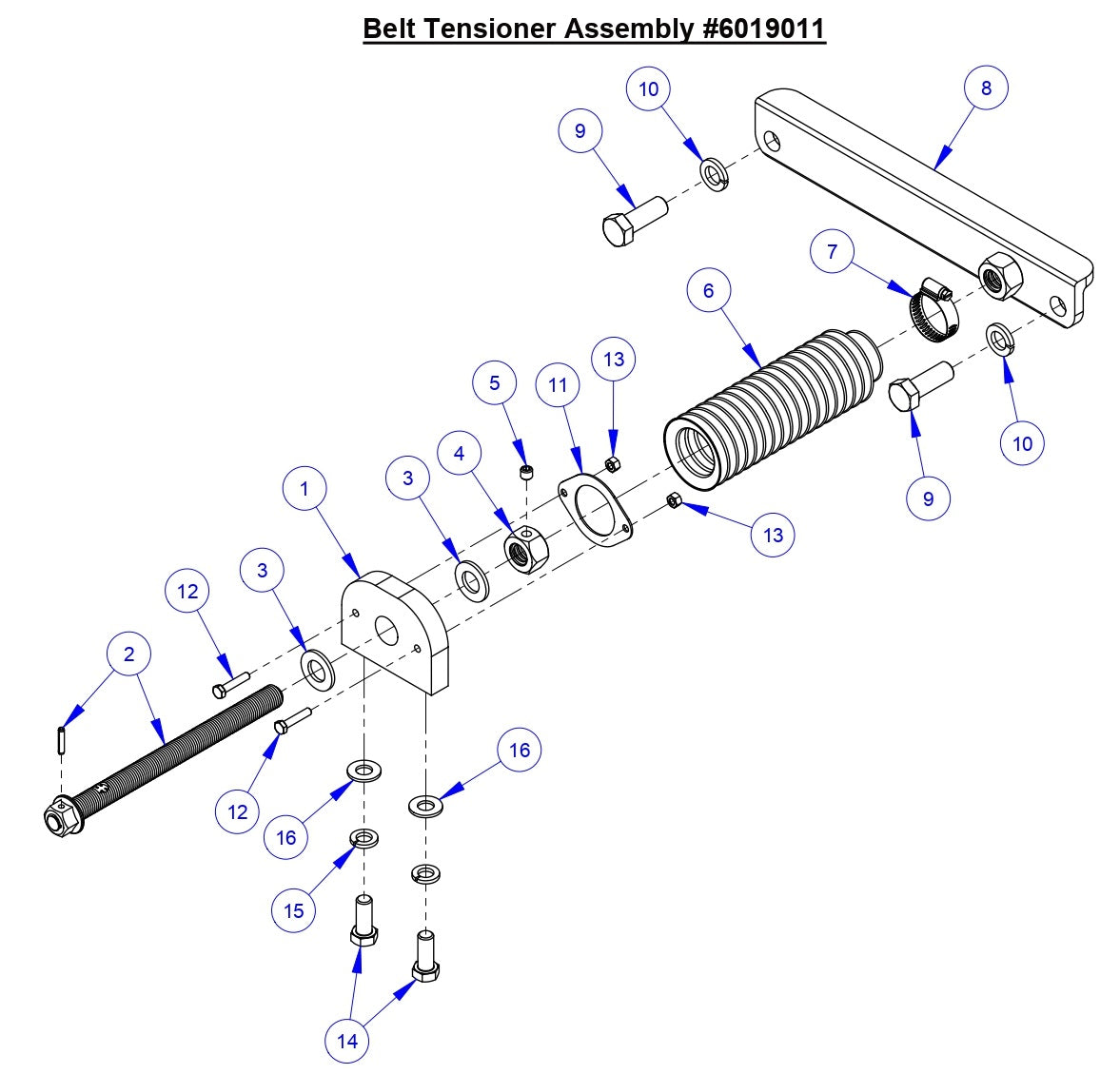

  • CC6561/CC6571 Belt Tensioner Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6019027 Lead Screw Mounting Block for CC6561 Concrete Saw Core Cut by Diamond Products
$75.45
2
6019073 Lead Screw for CC6561 Concrete Saw Core Cut by Diamond Products
$115.00
2
2901566 Roll Pin, 3/16" x 15/16" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
3
2901565 Thrust Washer, 3/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$6.99
4
6019074 Lead Screw Lock Nut for CC6561 Concrete Saw Core Cut by Diamond Products
$36.00
5
2900131 Set Screw, Soc. Hd., 3/8-16 x 3/8" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
6
6048036 Bellows for CC6561 Concrete Saw Core Cut by Diamond Products
$64.90
7
3202142 Hose Clamp #24 for CC6561 Concrete Saw Core Cut by Diamond Products
$12.00
8
6019026 Lead Screw Adjustment Bar for CC6561 Concrete Saw Core Cut by Diamond Products
$97.81
9
2900147 Cap Screw, Hex Hd., 5/8-11 x 1-3/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$6.99
10
2900113 Lock Washer, 5/8" Split for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
11
6019028 Bellows Mount Flange for CC6561 Concrete Saw Core Cut by Diamond Products
$10.11
12
2900342 Cap Screw, Hex Hd., M6-1.0 x 30mm for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900302 Lock Nut, M6-1.0 Nylon Insert for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900025 Cap Screw, Hex Hd., 1/2-13 x 1-1/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
15
2900084 Lock Washer, 1/2" Split for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
16
2900058 Flat Washer, 1/2" SAE for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
