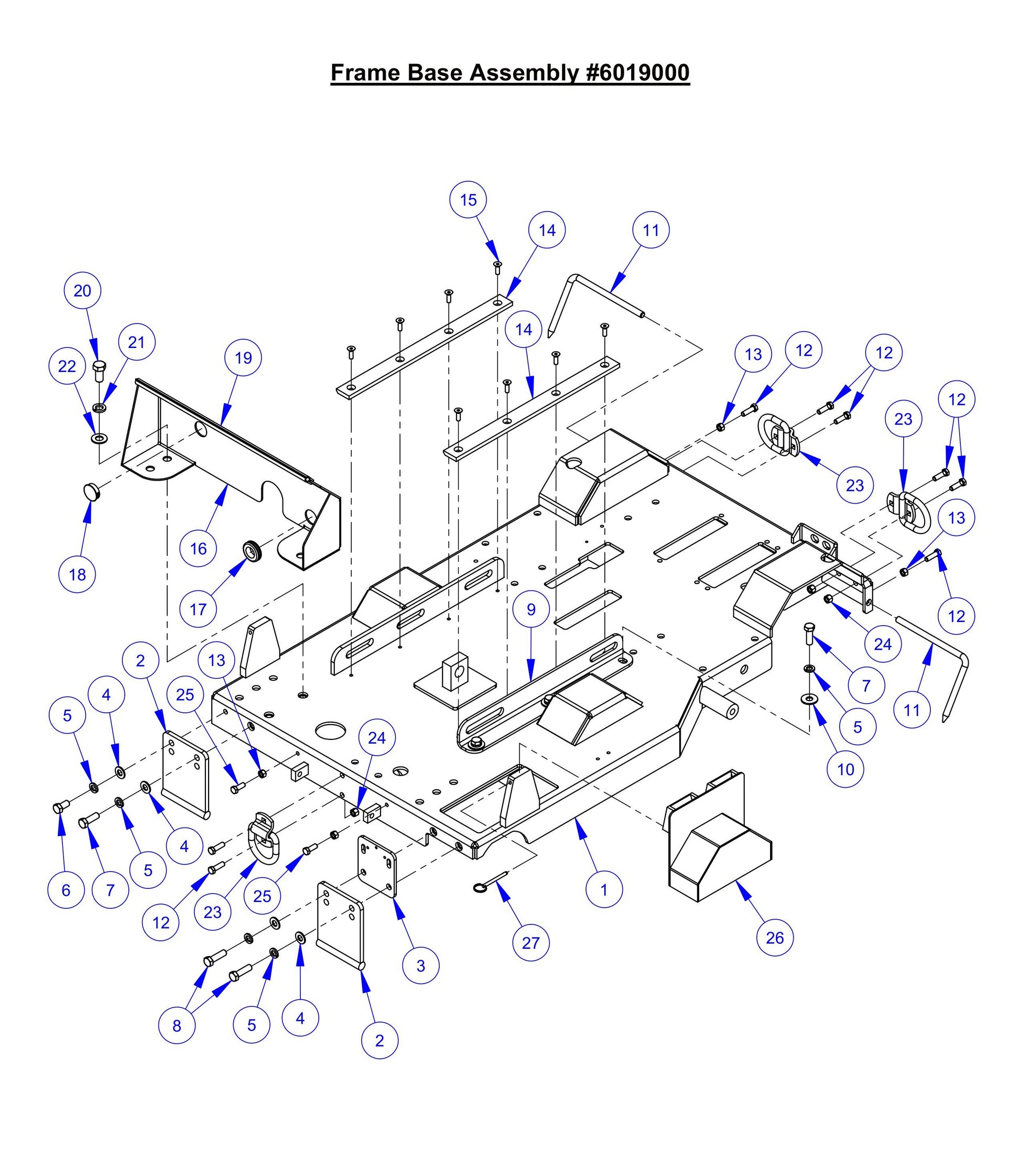

CC6561, CC6571 Frame Base Assembly Parts

CC6561, CC6571 Frame Base Assembly Parts

  • CC6561, CC6571 Frame Base Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6019020 Frame Base for CC6561 Concrete Saw Core Cut by Diamond Products
$2,248.29
2
6010681 Skid Plate for CC6561 Concrete Saw Core Cut by Diamond Products
$57.58
3
6010973 Guard Attachment Plate for CC6561 Concrete Saw Core Cut by Diamond Products
$54.72
4
2900058 Flat Washer, 1/2" SAE for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
5
2900084 Lock Washer, 1/2" Split for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900086 Cap Screw, Hex Hd., 1/2-13 x 1" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
7
2900499 Cap Screw, Hex Hd., 1/2-13 x 1-1/2" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
8
2900139 Cap Screw, Hex Hd., 1/2-13 x 1-3/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
9
6019021 Engine Guide for CC6561 Concrete Saw Core Cut by Diamond Products
$68.44
10
2900127 Flat Washer, 1/2" USS for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
11
6010683 Rear Pointer Rod for CC6561 Concrete Saw Core Cut by Diamond Products
$19.60
12
2900013 Cap Screw, Hex Hd., 3/8-16 x 1-1/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900033 Hex Nut, 3/8-16 for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
14
6019022 Engine Slide Bar for CC6561 Concrete Saw Core Cut by Diamond Products
$32.37
15
2900174 Cap Screw, Flat Hd., 5/16-18 x 1" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
16
6019099 Air Shield for CC6561 Concrete Saw Core Cut by Diamond Products
$131.67
17
2504455 Grommet, 1" I.D. for CC6561 Concrete Saw Core Cut by Diamond Products
$9.77
18
2506087 Plug, 1-3/8" Hole for CC6561 Concrete Saw Core Cut by Diamond Products
$4.99
19
6019115 Edge Trim Seal 20" for CC6561 Concrete Saw Core Cut by Diamond Products
$24.72
20
2900512 Cap Screw, Hex Hd., 5/8-11 x 1-1/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$4.99
21
2900113 Lock Washer, 5/8" Split for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
22
2900002 Flat Washer, 5/8" SAE for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
23
2504368 Tie Down for CC6561 Concrete Saw Core Cut by Diamond Products
$50.40
24
2900018 Locknut, 3/8-16, Nylon for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
25
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
26
6010645 Shaft/Flange Guard (Wide) for CC6561 Concrete Saw Core Cut by Diamond Products
$223.20
27
2900156 Lock Pin with Ring for CC6561 Concrete Saw Core Cut by Diamond Products
$11.40
