Description

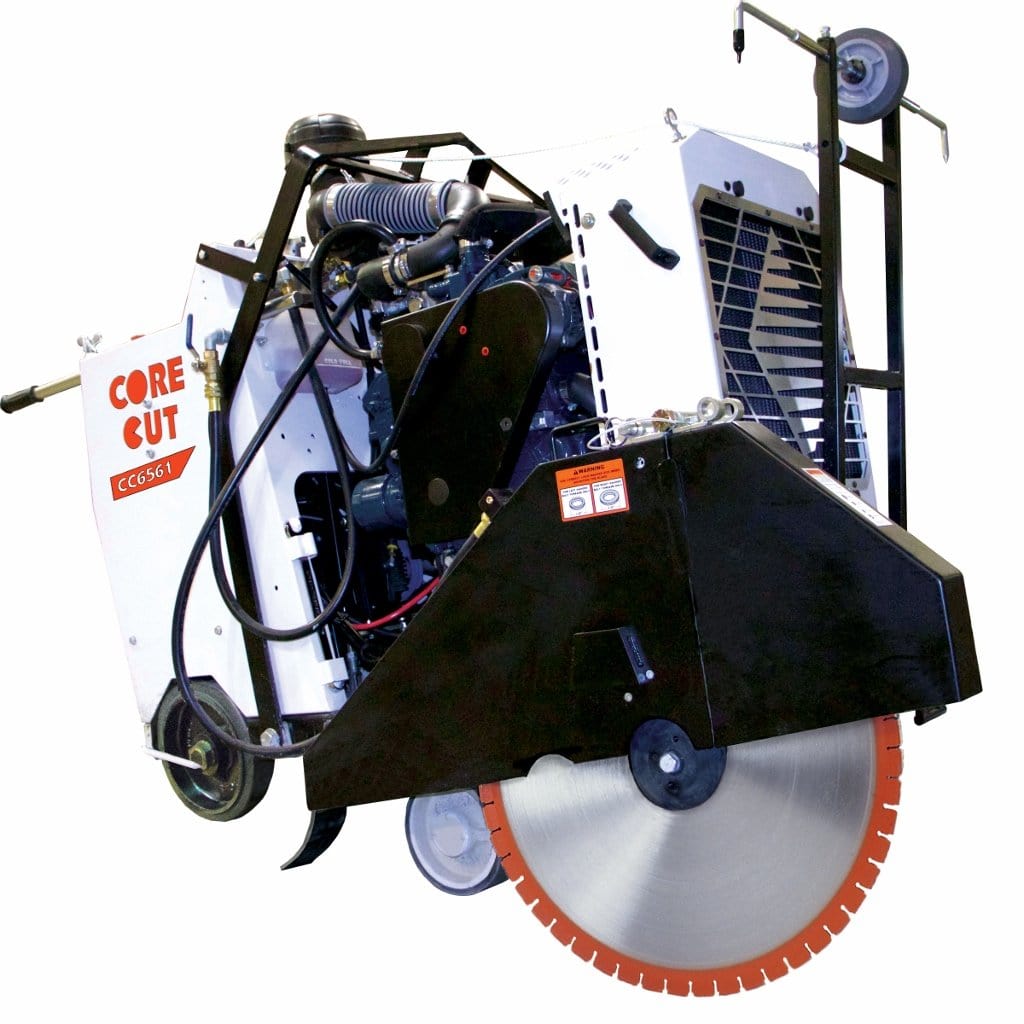

CC6561GK 14'' to 42" Gasoline Self Propelled Concrete Walk Behind Saw by Core Cut Diamond Products
*Self Propelled*
*Blade and Water Tank not included*
| SPECIFICATIONS - CC6561GK |
| BLADE CAPACITY |
14 INCHES TO 42 INCHES |
|
MAXIMUM CUTTING DEPTH
|
14" BLADE - 4 1/2" MAX CUT
20" BLADE - 7 1/2" MAX CUT
26" BLADE - 10 1/2" MAX CUT
30" BLADE - 11 3/4" MAX CUT
36" BLADE - 14 3/4" MAX CUT
42" BLADE - 17 3/4" MAX CUT
|
| ENGINE |
KUBOTA GASOLINE WG2503 EPA COMPLIANT |
| HORSEPOWER |
61HP |
| WEIGHT |
380 TO 460 LBS |
CC6561GK GASOLINE SELF PROPELLED CONCRETE CONCRETE WALK BEHIND SAW
Main Features -
- Liquid-cooled Kubota® gasoline WG2503, spark-ignited industrial 61HP engine that is fully compliant with EPA regulations
- Self-propelled Eaton Model 10 transmission
- Fits through a 36” door frame
- Strongest frame on the market
- Blade shaft diameter of 2" and has a 10 belt drive
- Right and left side blade mounting capability
- Fuel Capacity - 9 Gallons
- 4 stage air filter system
- Developed on an industrial diesel engine platform
- Very low noise and vibration
- Electronic fuel injection
- Modern computer engine controls (same as the CC6571D).
- The 3-way catalytic muffler that meets the latest EPA & CARB emission requirements
- Specifications similar to CC6549D, but with more power and less noise, vibration, and fumes
