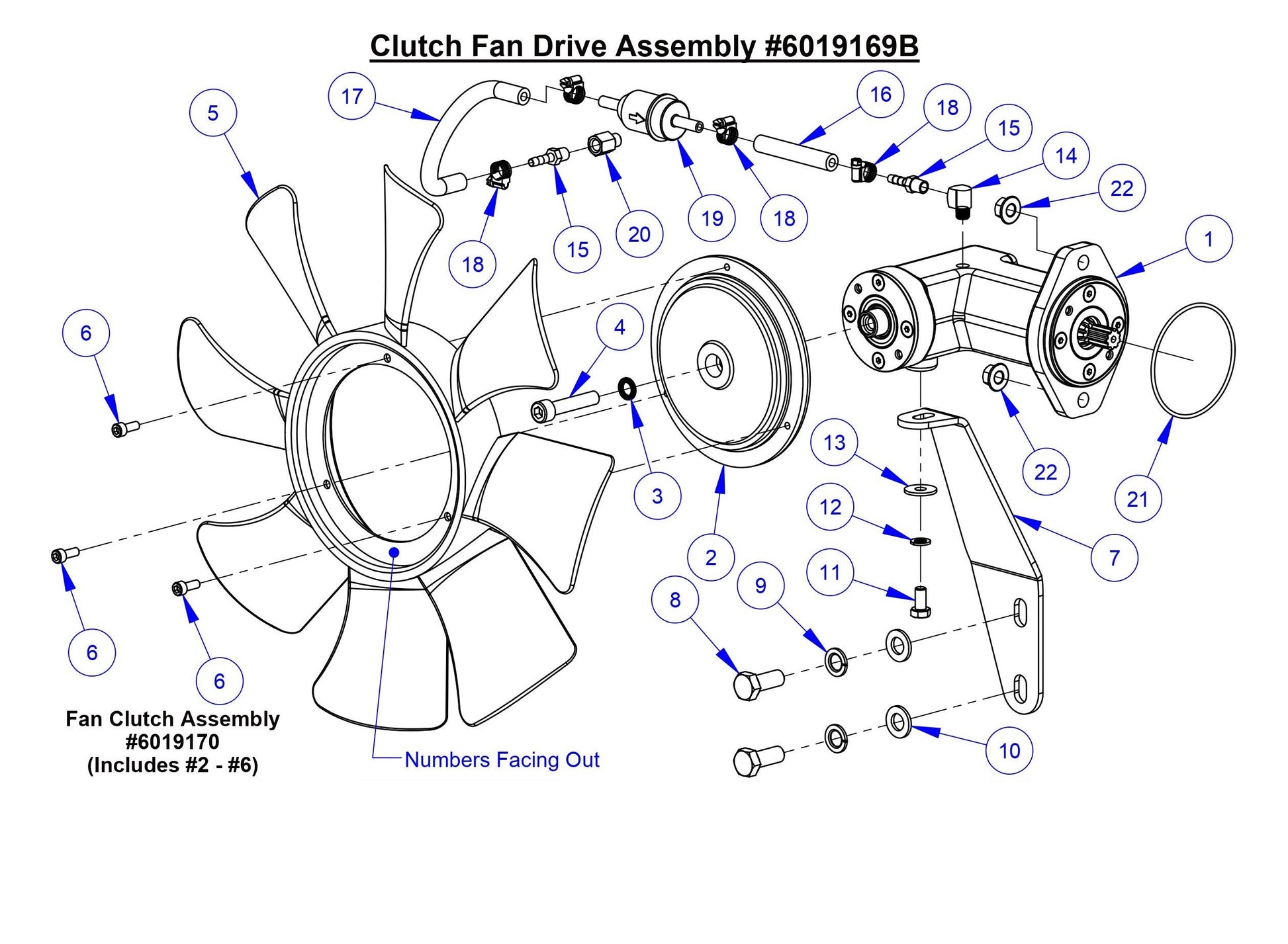

CC6566-3 Clutch Fan Drive Assembly Parts

CC6566-3 Clutch Fan Drive Assembly Parts

  • CC6566-3 Clutch Fan Drive Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2901575 Wedge Lock Washer Pair, M10 for CC6561-3 Concrete Saw Core Cut by Diamond Products
$4.19
4
2901506 Cap Screw, Soc. Hd., M10-1.5 x 50mm for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
6
2900553 Cap Screw, Soc. Hd., M6-1.0 x 16mm for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
9
2900699 Lock Washer, M12 Split for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
10
2901357 Flat Washer, M12 for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
12
2900763 Lock Washer M8 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
18
3200062 Hose Clamp #4 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$7.33
19
2501785 Filter, Diesel Fuel for CC7874XL Concrete Saw Core Cut by Diamond Products
$34.44
20
3202099 Adapter, 1/8" M. BSPT to 1/8" F. Pipe for CC6561-3 Concrete Saw Core Cut by Diamond Products
$8.04
1
Diamond Products RIGHT ANGLE DRIVE ASSY. FOR CC6571 SAW 6019176
$1,335.00
2
Fan Clutch, Viscous Cw 2504585 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$215.59
5
Diamond Products FAN, 17" KUBOTA (DRILLED) FOR CC6571 SAW 6019143
$388.75
7
Diamond Products FAN DRIVE BRACE (CC6571) 6019038
$43.38
8
2900746 Cap Screw, Hex Hd., M12-1.25 x 30mm for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
13
2900868 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900383 Fender Washer M8 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
15
3200156 Street Elbow, 1/8" NPT for CB20E-XL Hydraulic Power Unit Core Cut by Diamond Products
$8.18
21
3200018 Fitting, 1/8" M. Pipe to 1/4" Hose Barb for CC7874XL Concrete Saw Core Cut by Diamond Products
$10.86
22
Diamond Products O-RING AS568A-152 VITON 2503897
$8.32
