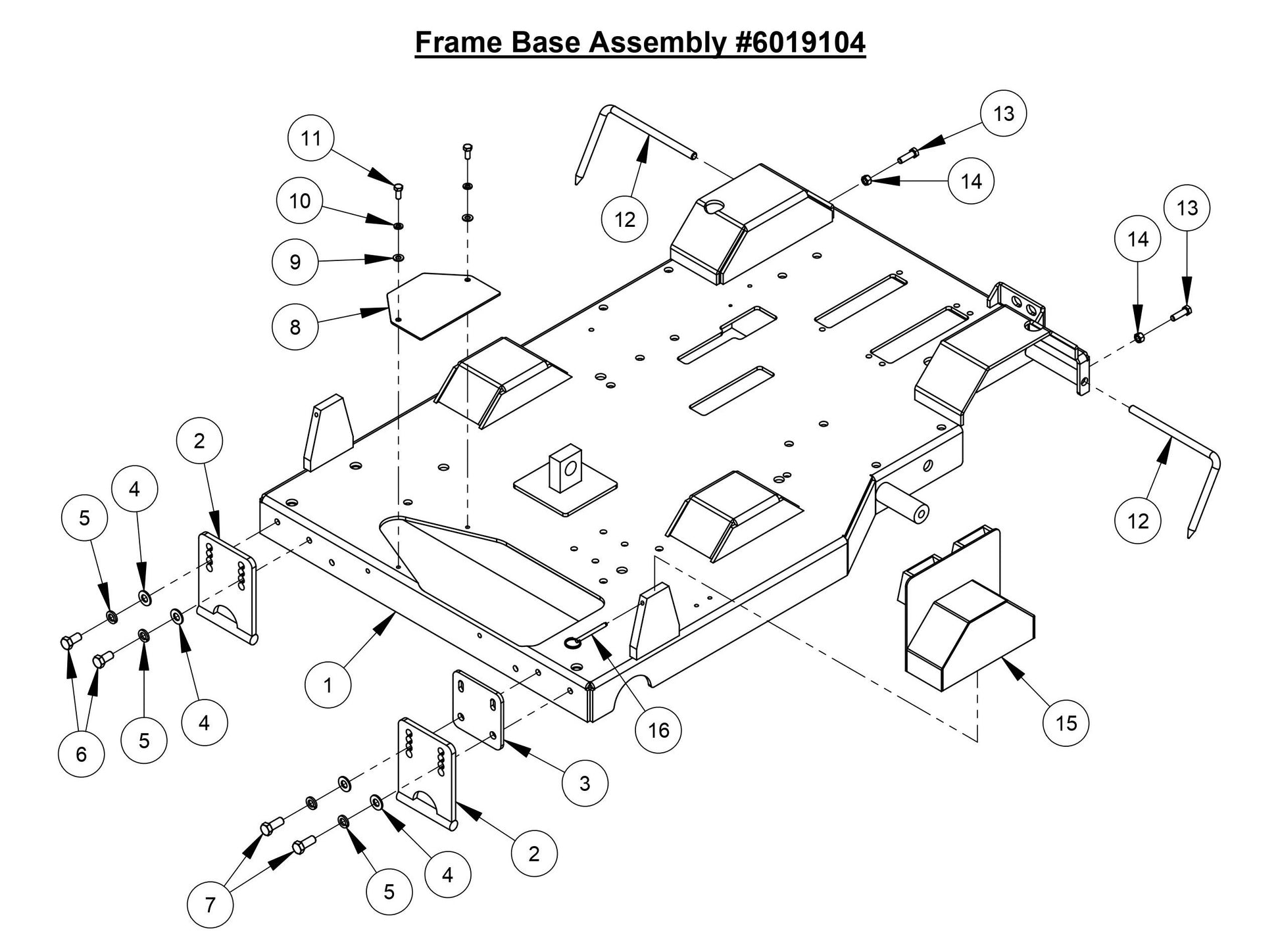

CC6566-3 Frame Base Assembly Parts

CC6566-3 Frame Base Assembly Parts

  • CC6566-3 Frame Base Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010968 Frame Base Weldment for CC6561-3 Concrete Saw Core Cut by Diamond Products
$2,548.26
2
6017157 Skid Plate for CC6561-3 Concrete Saw Core Cut by Diamond Products
$59.35
3
6010973 Guard Attachment Plate for CC6561-3 Concrete Saw Core Cut by Diamond Products
$54.72
4
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
5
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900086 Cap Screw, Hex Hd., 1/2-13 x 1" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
7
2900025 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
8
6010974 Cover Plate for CC6561-3 Concrete Saw Core Cut by Diamond Products
$37.52
9
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900019 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
6010683 Rear Pointer Rod for CC6561-3 Concrete Saw Core Cut by Diamond Products
$19.60
13
2900013 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
15
6010645 Shaft/Flange Guard (Wide) for CC6561-3 Concrete Saw Core Cut by Diamond Products
$223.20
16
2900156 Lock Pin with Ring for CC3500J Concrete Saw Core Cut by Diamond Products
$11.40
