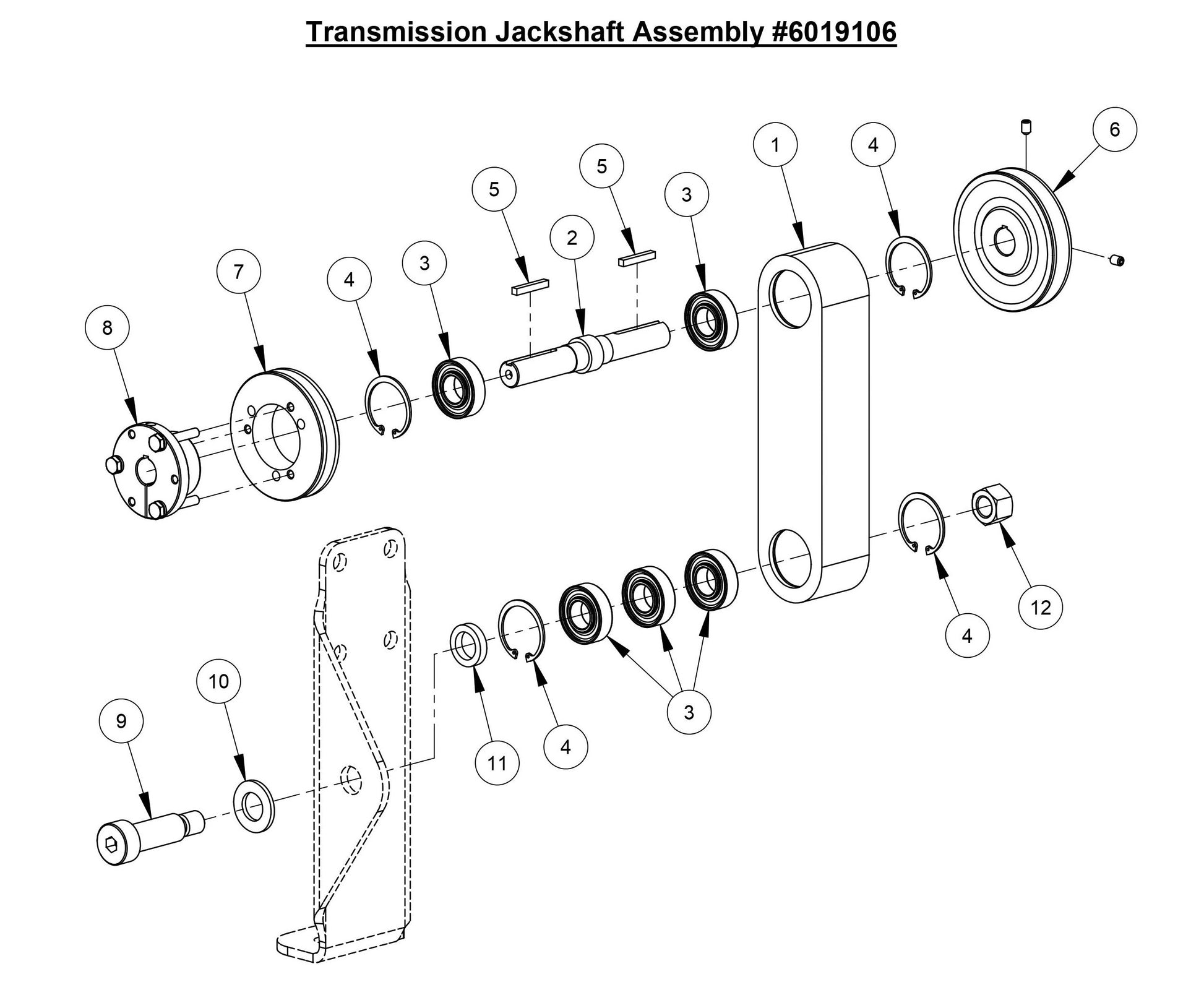

CC6566-3 Transmission Jackshaft Assembly Parts

CC6566-3 Transmission Jackshaft Assembly Parts

  • CC6566-3 Transmission Jackshaft Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010667 Jackshaft Pivot Housing for CC6561-3 Concrete Saw Core Cut by Diamond Products
$141.57
2
6010666 Idler Jackshaft for CC6561-3 Concrete Saw Core Cut by Diamond Products
$75.41
3
2501743 Ball Bearing, 20mm x 42mm x 12mm for CC6561-3 Concrete Saw Core Cut by Diamond Products
$12.11
4
2501748 Retaining Ring, 42mm Internal for CC6561-3 Concrete Saw Core Cut by Diamond Products
$2.45
5
6048229 Key, 3/16" Sq. x 1-1/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
6
2500455 Pulley, 4" with Setscrews for CC6561-3 Concrete Saw Core Cut by Diamond Products
$52.73
7
2503672 Sheave, 3.65" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$74.25
8
2503845 QD Bushing, SH x 3/4" w/Fasteners for CC6561-3 Concrete Saw Core Cut by Diamond Products
$42.39
9
2901372 Shoulder Bolt, 20mm x 50mm (M16-2.0) for CC6561 Concrete Saw Core Cut by Diamond Products
$36.71
10
2900003 Flat Washer 3/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
11
6010685 Bearing Spacer, 1/4" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$40.03
12
2900670 Lock Nut, M16-2.0 Nylon Insert for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
