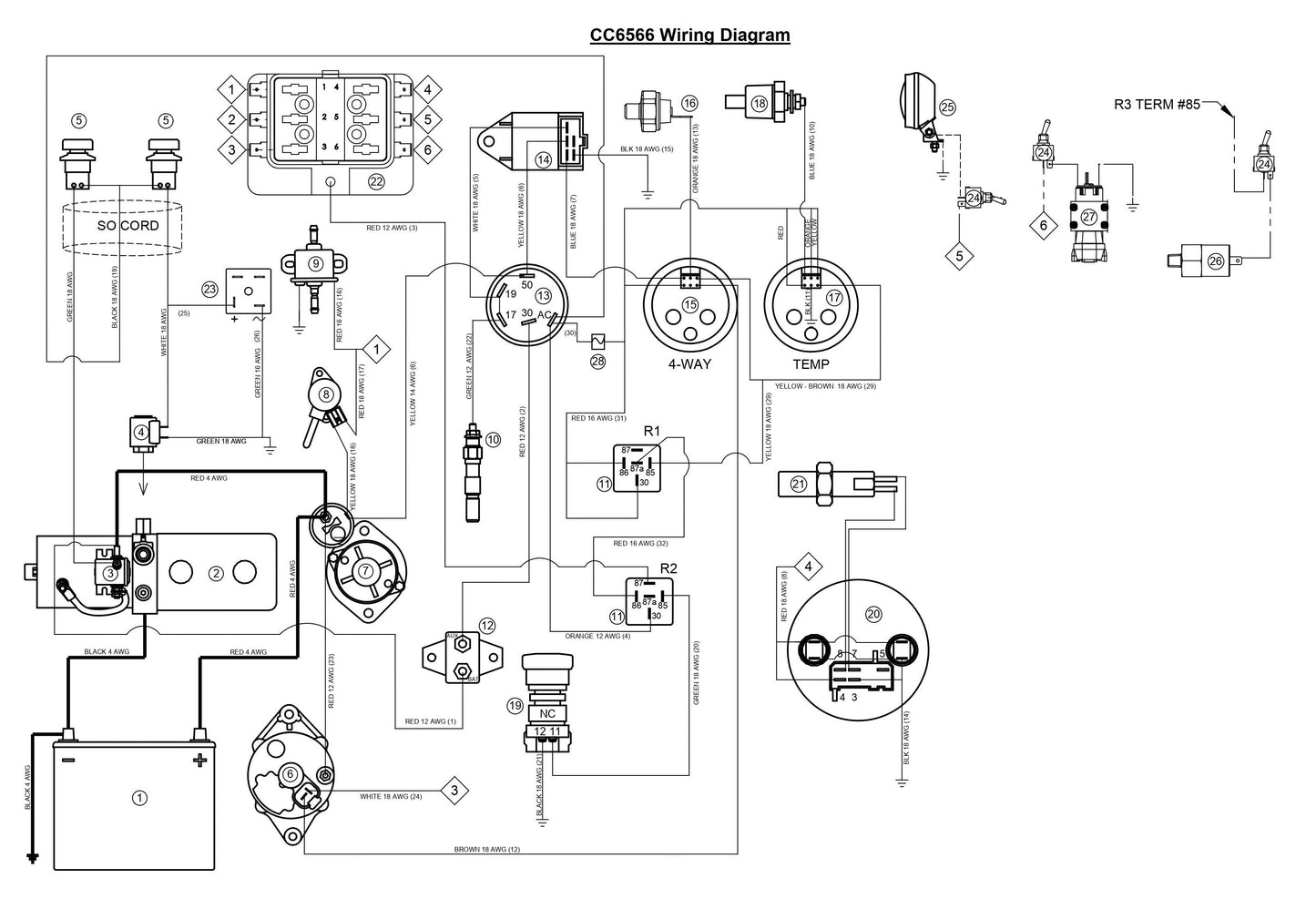

CC6566-3 Wiring Diagram

CC6566-3 Wiring Diagram

  • CC6566-3 Wiring Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2703210 Solenoid Start Switch for CC6561-3 Concrete Saw Core Cut by Diamond Products
$100.04
4
2700243 Valve Coil for CC6561-3 Concrete Saw Core Cut by Diamond Products
$48.12
4
2700244 Valve Stem for CC6561-3 Concrete Saw Core Cut by Diamond Products
$126.72
5
2800373 Pushbutton Switch (B&W) for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$86.09
13
2705001 Ignition Switch & Keys for CC6561-3 Concrete Saw Core Cut by Diamond Products
$157.41
13
2705000 Ignition Keys Only (Pair) for CC6561-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
19
2801367 E-Stop Switch for CC5555-3 Concrete Saw Core Cut by Diamond Products
$81.10
20
6010416 Tach/Hour Meter (VDO) Calibrated for CC3500J Concrete Saw Core Cut by Diamond Products
$593.01
21
2800169 Magnetic Sensor for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$258.39
22
2801439 Fuse, 10 Amp Mini (Red) for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$6.99
24
2800062 Toggle Switch for CC6540E CONCRETE SAW Core Cut by Diamond Products
$51.65
28
2801439 Fuse 10 Amp Mini (Red) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
View full details
