CC6566, CC6566-3 Air Cleaner Assembly Parts

CC6566, CC6566-3 Air Cleaner Assembly Parts

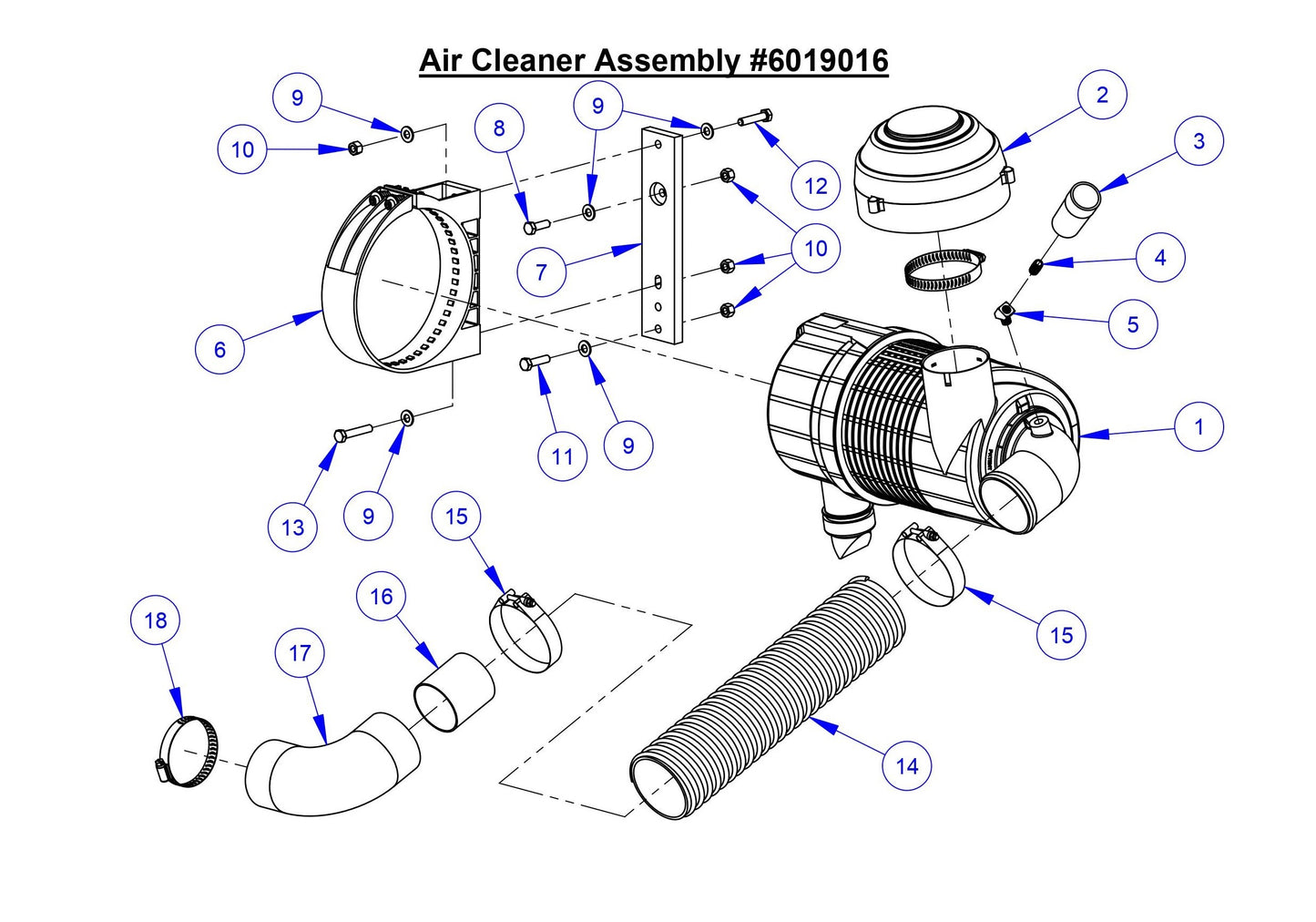

  • CC6566 Air Cleaner Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2503852 Air Cleaner Complete for CC6561 Concrete Saw Core Cut by Diamond Products
$244.53
1
2501386 Outer Primary Filter for CC6561 Concrete Saw Core Cut by Diamond Products
$91.47
1
2501387 Inner Safety Filter for CC6561 Concrete Saw Core Cut by Diamond Products
$72.10
1
2500239 Rubber Dust Ejector Boot for CC6561 Concrete Saw Core Cut by Diamond Products
$17.31
2
2501388 Pre-Cleaner with Clamp for CC6561 Concrete Saw Core Cut by Diamond Products
$188.10
2
3200197 Hose Clamp #52 for CC6561 Concrete Saw Core Cut by Diamond Products
$8.57
3
2500423 Restriction Indicator for CC3500J Concrete Saw Core Cut by Diamond Products
$66.72
4
3200117 Close Nipple, 1/8" NPT for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
5
3200099 Street Elbow, 1/8" NPT x 45 Deg. for CC3500J Concrete Saw Core Cut by Diamond Products
$10.06
6
2501385 Mounting Band, Polymer for CC6561 Concrete Saw Core Cut by Diamond Products
$61.34
8
2900138 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900039 Lock Nut 5/16-18 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900217 Cap Screw Hex Hd. 5/16-18 x 1-1/4" Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
12
2900508 Cap Screw, Hex Hd., 5/16-18 x 1-1/2" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
13
2900538 Cap Screw, Hex Hd., 5/16-18 x 1-3/4" for CB21-XL Power Unit Core Bore Core Cut by Diamond Products
$3.99
15
3202098 T-Bolt Clamp, 3-1/2" for CC6561 Concrete Saw Core Cut by Diamond Products
$17.52
16
6010052 Connector Tube, 2-1/2" O.D. for CC6561 Concrete Saw Core Cut by Diamond Products
$27.06
17
2500232 Hose Elbow, 2-1/2" I.D. for CC6561 Concrete Saw Core Cut by Diamond Products
$44.71
18
3200096 Hose Clamp #40 for CC6561 Concrete Saw Core Cut by Diamond Products
$11.71
7
Diamond Products AIR CLEANER MOUNT-PLASTIC FOR CC3765 & CC6566 SAWS 6010325
$47.68
14
Diamond Products AIR CLEANER HOSE 3"IDX16" FLEXIBLE BLACK & GREY 6019096
$51.45
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
