CC6566, CC6566-3 Belt Guard Assembly Parts

CC6566, CC6566-3 Belt Guard Assembly Parts

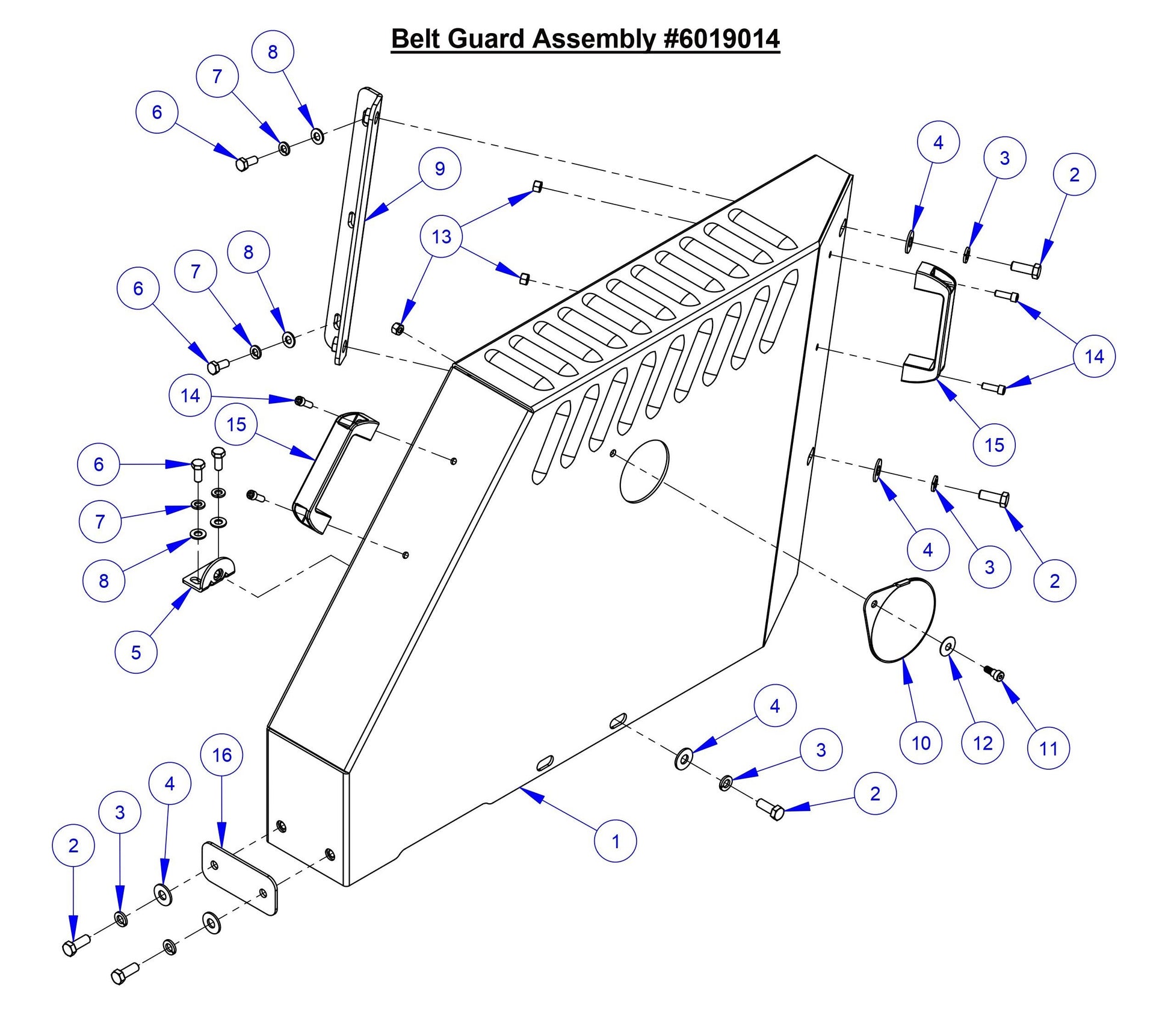

  • CC6566 Belt Guard Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6019083 Belt Guard for CC6561 Concrete Saw Core Cut by Diamond Products
$315.81
2
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
3
2900006 Lock Washer 3/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900473 Flat Washer, 3/8" USS for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
5
6010558 Guard Mounting Tab, 3/8-16 for CC3500J Concrete Saw Core Cut by Diamond Products
$20.51
6
2900019 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
9
6010556 Belt Guard Mount Bracket for CC6561 Concrete Saw Core Cut by Diamond Products
$44.62
10
6010768 Swing Cover Plate with Label for CC6561 Concrete Saw Core Cut by Diamond Products
$26.98
12
2900252 Belleville Washer, 5/16" for CC6561 Concrete Saw Core Cut by Diamond Products
$6.99
13
2900010 Lock Nut 1/4-20 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
2900247 Cap Screw, Soc. Hd., 1/4-20 x 3/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
15
2400145 Handle for CC6561 Concrete Saw Core Cut by Diamond Products
$13.54
16
6019147 Belt Guard Shim for CC6561 Concrete Saw Core Cut by Diamond Products
$20.11
11
2900246 Shoulder Screw 5/16" x 1/4" (1/4-20) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
