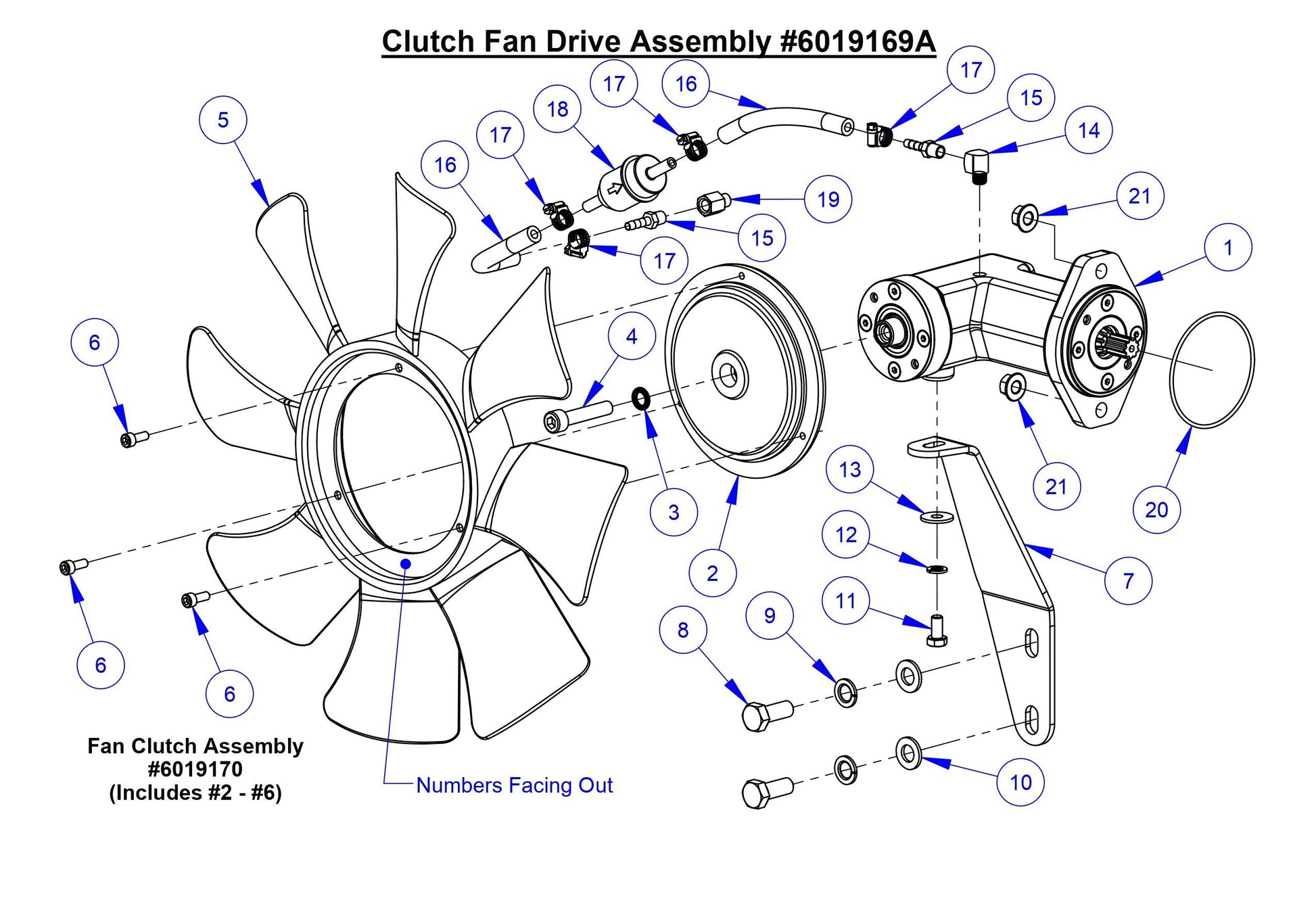

CC6566 Clutch Fan Drive Assembly Parts

CC6566 Clutch Fan Drive Assembly Parts

  • CC6566 Clutch Fan Drive Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
2901575 Wedge Lock Washer Pair, M10 for CC6561 Concrete Saw Core Cut by Diamond Products
$6.99
4
2901506 Cap Screw, Soc. Hd., M10-1.5 x 50mm for CC6561 Concrete Saw Core Cut by Diamond Products
$6.84
6
2900553 Cap Screw, Soc. Hd., M6-1.0 x 16mm for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
8
2900746 Cap Screw, Hex Hd., M12-1.25 x 30mm for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
9
2900699 Lock Washer, M12 Split for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
10
2901357 Flat Washer, M12 for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900868 Cap Screw, Hex Hd., M8-1.25 x 16mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$2.99
12
2900763 Lock Washer M8 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900383 Fender Washer M8 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
15
02250202-140 Supt Fuses-Releays 375C Cat by Sullair
$1,137.60
17
3200062 Hose Clamp #4 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$7.33
18
2501785 Filter, Diesel Fuel for CC7874XL Concrete Saw Core Cut by Diamond Products
$34.44
19
3202099 Adapter, 1/8" M. BSPT to 1/8" F. Pipe for CC6561 Concrete Saw Core Cut by Diamond Products
$10.79
1
Diamond Products RIGHT ANGLE DRIVE ASSY. FOR CC6571 SAW 6019176
$1,335.00
2
Fan Clutch, Viscous Cw 2504585 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$215.59
5
Diamond Products FAN, 17" KUBOTA (DRILLED) FOR CC6571 SAW 6019143
$388.75
7
Diamond Products FAN DRIVE BRACE (CC6571) 6019038
$43.38
14
3200156 Street Elbow, 1/8" NPT for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$8.18
16
Diamond Products HOSE, 1/4"ID X 5-1/2"LONG 6019093
$8.39
20
Diamond Products O-RING AS568A-152 VITON 2503897
$8.32
21
Diamond Products M10-1.25 HEX FLANGE NUT 2901398
$3.99
