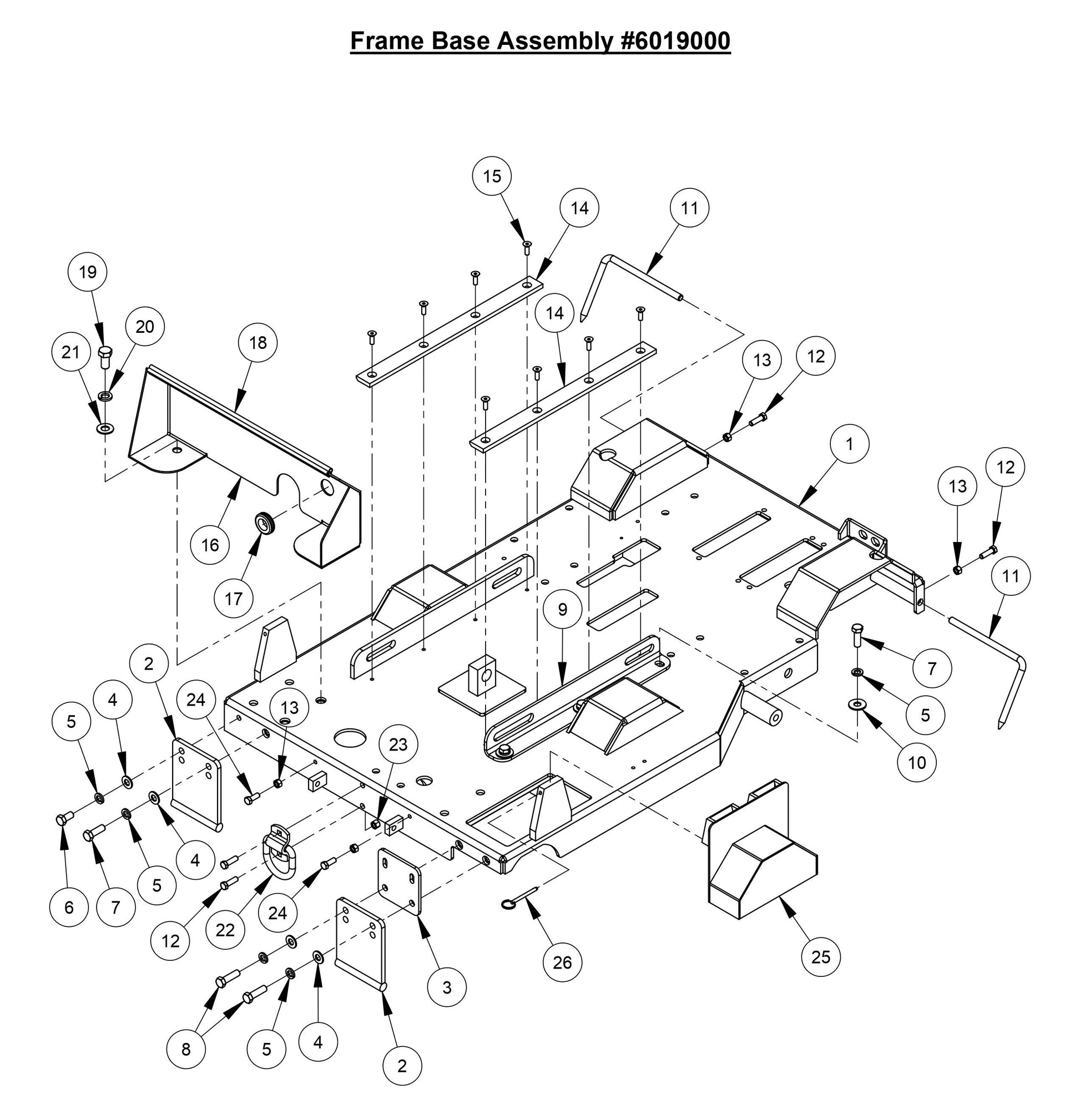

CC6566 Frame Base Assembly Parts

CC6566 Frame Base Assembly Parts

  • CC6566 Frame Base Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6019020 Frame Base for CC6561 Concrete Saw Core Cut by Diamond Products
$2,248.29
2
6010681 Skid Plate for CC6561 Concrete Saw Core Cut by Diamond Products
$57.58
3
6010973 Guard Attachment Plate for CC6561 Concrete Saw Core Cut by Diamond Products
$54.72
4
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
5
2900084 Lock Washer 1/2" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900086 Cap Screw, Hex Hd., 1/2-13 x 1" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
7
2900499 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
8
2900139 Cap Screw, Hex Hd., 1/2-13 x 1- 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
9
6019021 Engine Guide for CC6561 Concrete Saw Core Cut by Diamond Products
$68.44
10
2900127 1/2" USS Flat Washer for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
11
6010683 Rear Pointer Rod for CC6561 Concrete Saw Core Cut by Diamond Products
$19.60
12
2900013 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900033 Hex Nut 3/8-16 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
14
6019022 Engine Slide Bar for CC6561 Concrete Saw Core Cut by Diamond Products
$32.37
15
2900174 Cap Screw, Flat Hd., 5/16-18 x 1" for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
16
6019099 Air Shield for CC6561 Concrete Saw Core Cut by Diamond Products
$131.67
17
2504455 Grommet, 1" I.D. for CC6561 Concrete Saw Core Cut by Diamond Products
$9.77
18
6019115 Edge Trim Seal 20" for CC6561 Concrete Saw Core Cut by Diamond Products
$24.72
19
2900512 Cap Screw, Hex Hd., 5/8-11 x 1-1/4" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$4.99
20
2900113 Lock Washer 5/8" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
21
2900002 Flat Washer, 5/8" SAE for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
22
2504368 Tie Down for CC6561 Concrete Saw Core Cut by Diamond Products
$50.40
23
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
24
2900005 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
25
6010645 Shaft/Flange Guard (Wide) for CC6561 Concrete Saw Core Cut by Diamond Products
$223.20
26
2900156 Lock Pin with Ring for CC6540E CONCRETE SAW Core Cut by Diamond Products
$11.40
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.

Do you accept returns?

Yes, most new, uninstalled items can be returned under our standard policy. Please see our Returns & Refunds Policy for eligibility, timeframes, and any exceptions.
