CC6566, CC6566-3 Fuel Tank Assembly Parts

CC6566, CC6566-3 Fuel Tank Assembly Parts

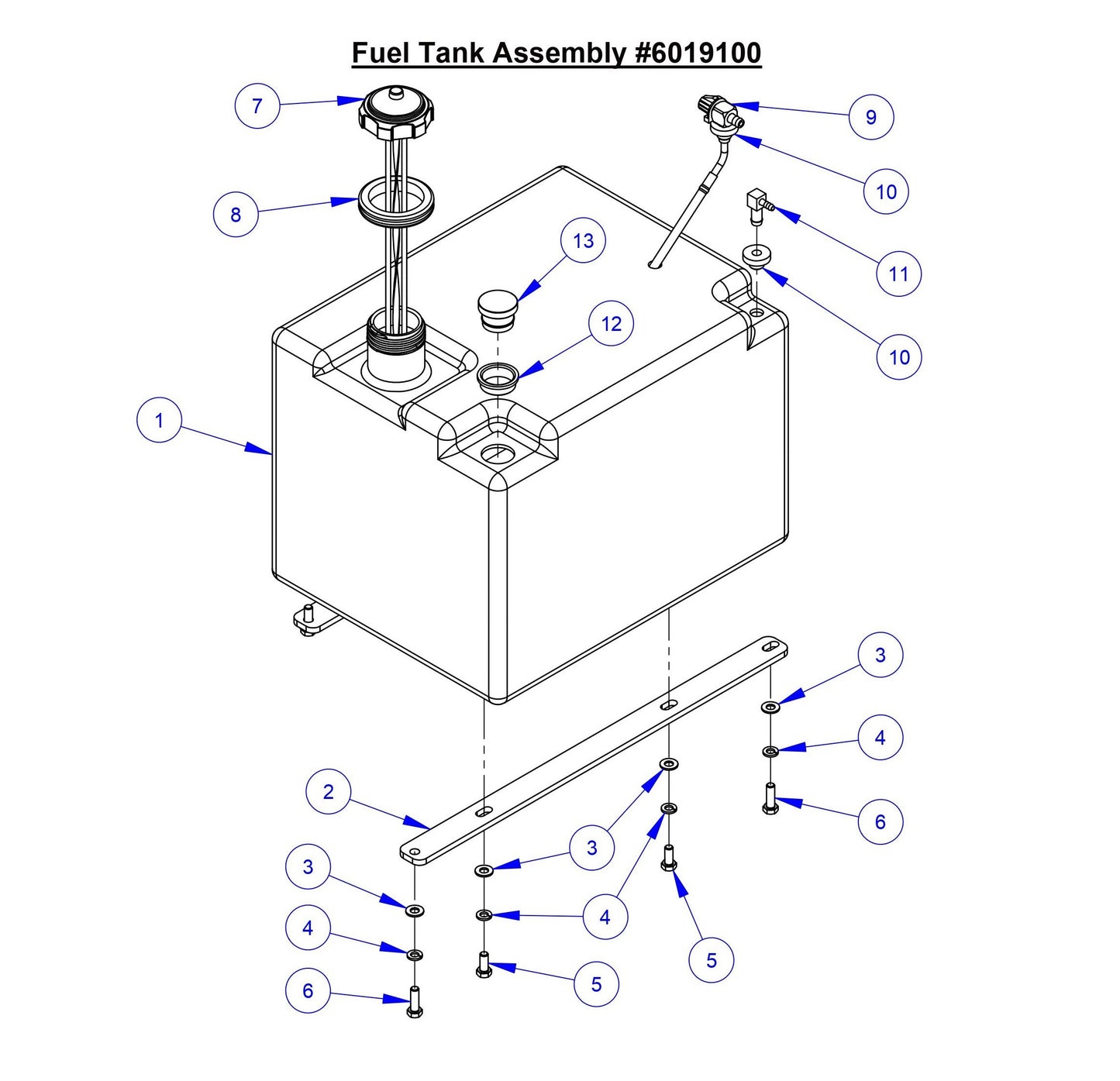

  • CC6566 Fuel Tank Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6019160 Fuel Tank for CC6561 Concrete Saw Core Cut by Diamond Products
$385.11
2
6010257 Fuel Tank Mount Bar for CC6561 Concrete Saw Core Cut by Diamond Products
$26.65
3
2900022 Flat Washer 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900031 Lock Washer 5/16" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900019 Cap Screw Hex Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900138 5/16-18x1.00 HEX CAP SCREW for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
8
2500205 Fuel Tank Grommet for CC3500J Concrete Saw Core Cut by Diamond Products
$6.91
9
2501777 Fuel Valve w/Pick-Up Tube for CC6561 Concrete Saw Core Cut by Diamond Products
$35.17
10
2501215 Bushing, Tank (Rubber) for CC6561 Concrete Saw Core Cut by Diamond Products
$4.99
12
2503963 Grommet, Fuel Sender for CC6561 Concrete Saw Core Cut by Diamond Products
$6.01
7
2504786 Fuel Tank Cap & Gauge for CC6571 Concrete Saw Core Cut by Diamond Products
$69.98
11
Diamond Products TANK ELBOW 3/16" BARB 2503709
$10.56
13
Diamond Products HOLE PLUG 6019395
$39.56
