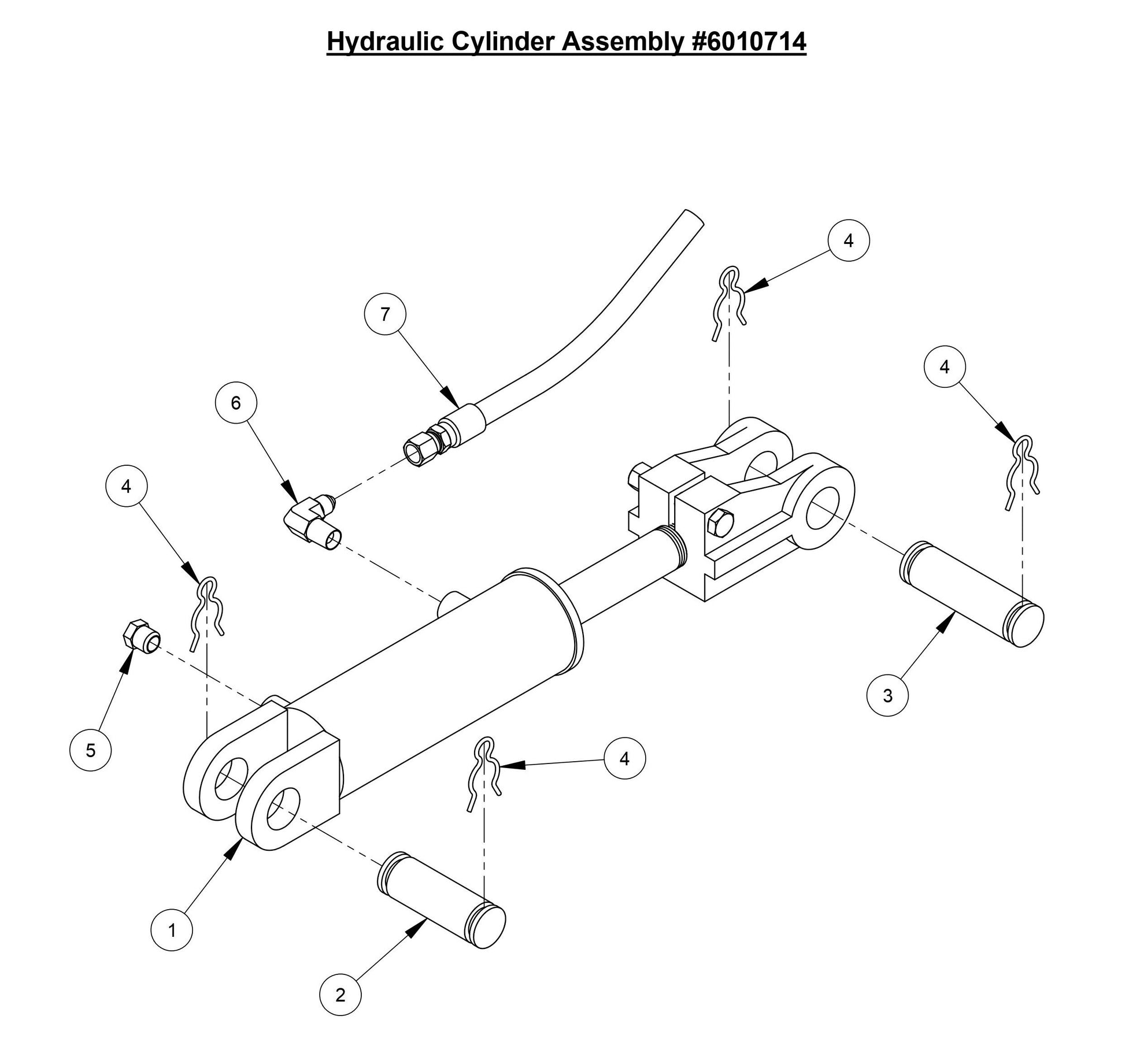

CC6566, CC6566-3 Hydraulic Cylinder Assembly Parts

CC6566, CC6566-3 Hydraulic Cylinder Assembly Parts

  • CC6566 Hydraulic Cylinder Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2500177 Hydraulic Cylinder for CC3500J Concrete Saw Core Cut by Diamond Products
$374.22
2
6010031 Cylinder Pin, 1" Dia. x 3" Long for CC6561 Concrete Saw Core Cut by Diamond Products
$21.64
3
6010119 Cylinder Pin, 1" Dia. x 3-1/2" Long for CC6561 Concrete Saw Core Cut by Diamond Products
$22.90
4
2900064 Hair Pin Cotter, 3/4" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
5
3200067 Breather Vent, 1/4" NPT for CC6561 Concrete Saw Core Cut by Diamond Products
$11.33
6
3200057 Elbow, 1/4" M. Pipe to 1/4" M. JIC for CC100 SINGLE HEAD FLOOR GRINDER Core Cut by Diamond Products
$9.37
7
3200054 Hose Assembly, 32" Long for CC6540E CONCRETE SAW Core Cut by Diamond Products
$78.52
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
