CC6566, CC6566-3 Rotary Tensioner Assembly Parts

CC6566, CC6566-3 Rotary Tensioner Assembly Parts

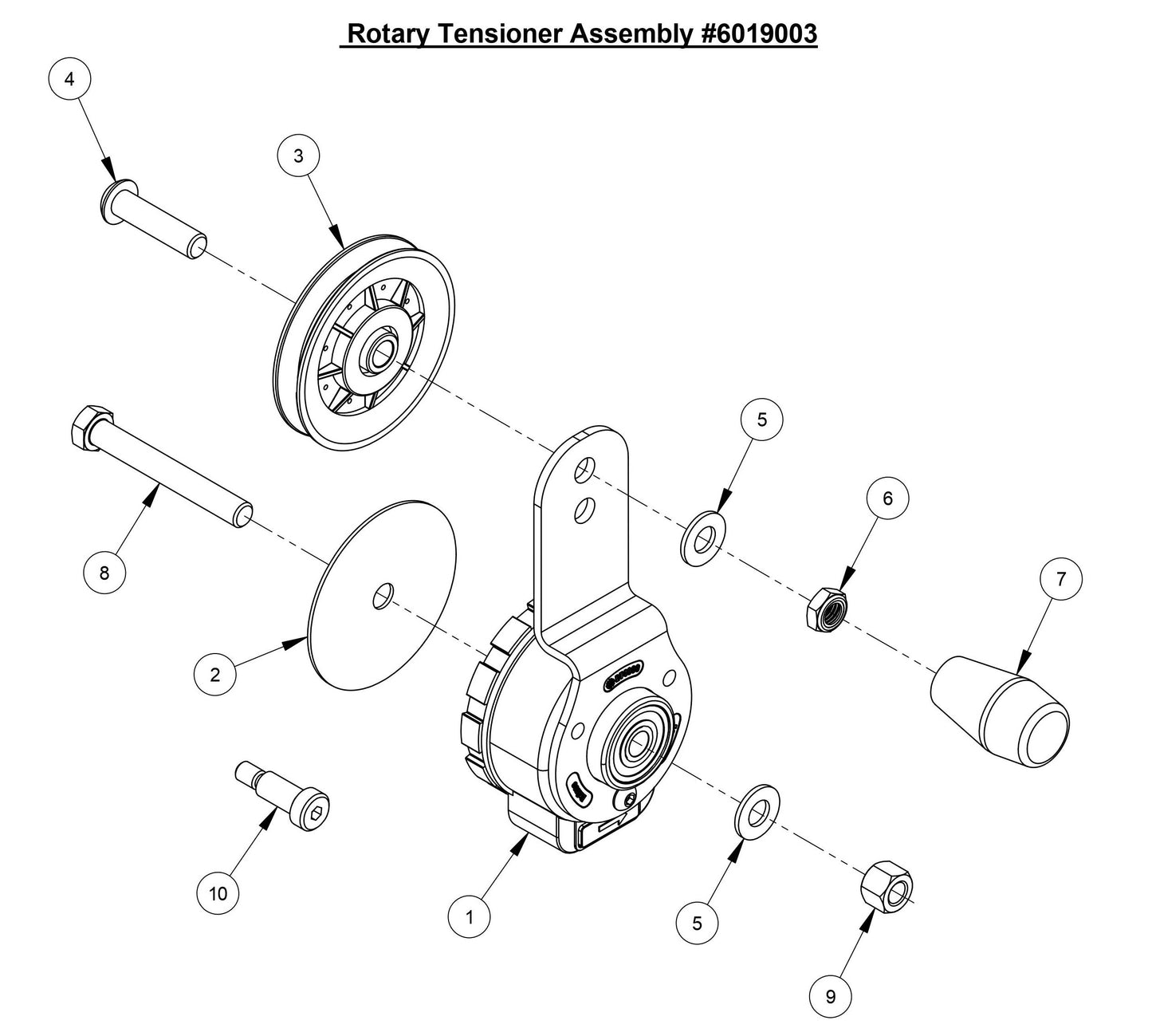

  • CC6566 Rotary Tensioner Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2501750 Rotary Tensioner for CC6561 Concrete Saw Core Cut by Diamond Products
$253.44
2
6019067 Rotary Tensioner Shim for CC6561 Concrete Saw Core Cut by Diamond Products
$23.39
3
2501751 Idler Pulley 4" for CC6561 Concrete Saw Core Cut by Diamond Products
$55.51
4
2900288 Cap Screw, Button Hd., 1/2-13 x 2" for CC3500J Concrete Saw Core Cut by Diamond Products
$8.65
5
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
6
2900543 Jam Lock Nut, 1/2-13 for CC6561 Concrete Saw Core Cut by Diamond Products
$3.99
7
2501754 Knob, 1/2-13 Tapered for CC6561 Concrete Saw Core Cut by Diamond Products
$20.95
8
2900400 Cap Screw, Hex Hd., 1/2-13 x 3-3/4" for CC6561 Concrete Saw Core Cut by Diamond Products
$6.99
9
2900026 Lock Nut 1/2-13 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
10
1/2"X1" Shoulder Screw 2900587 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$9.96
View full details
