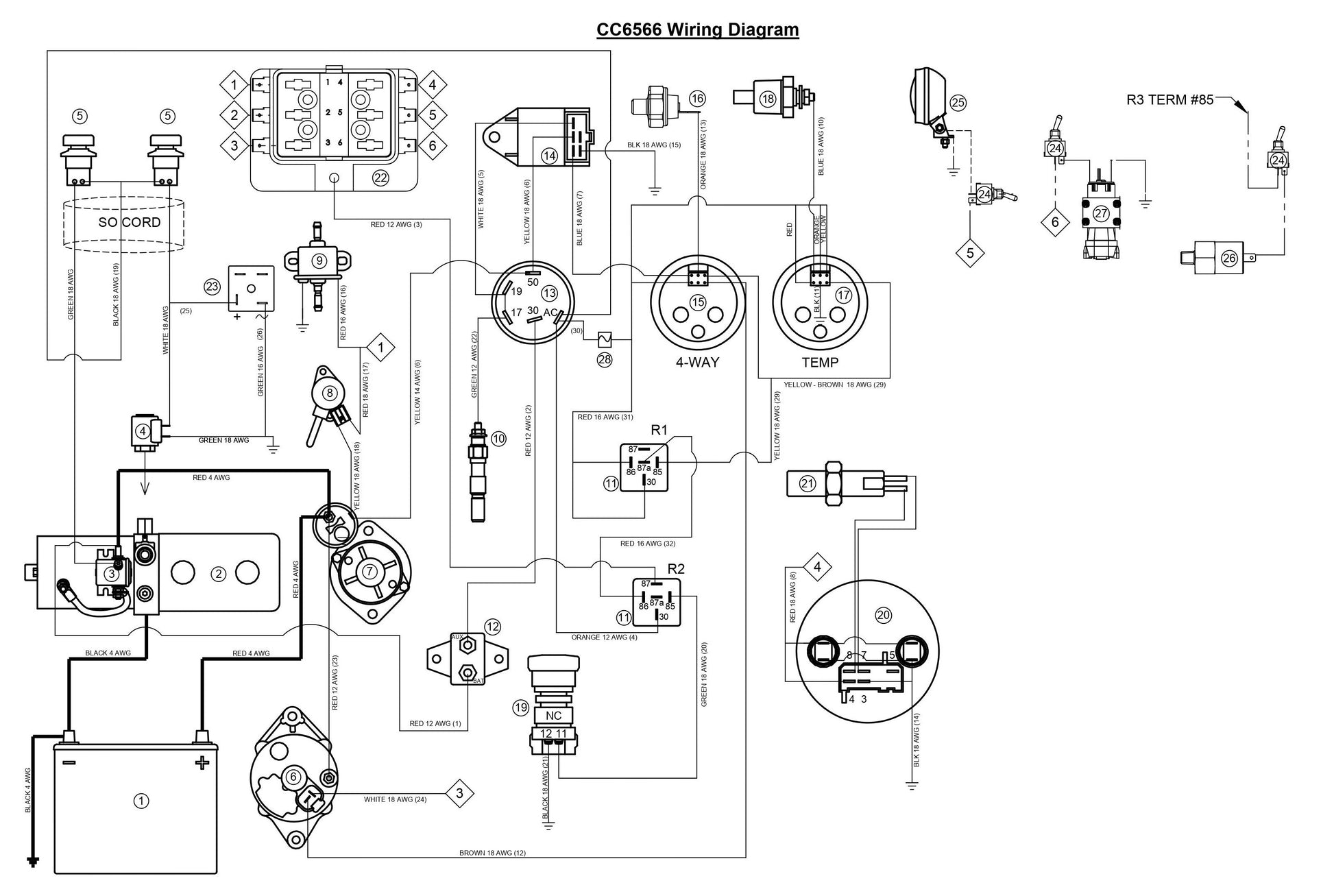

CC6566 Wiring Diagram

CC6566 Wiring Diagram

  • CC6566 Wiring Diagram
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2800465 Battery, 12 Volt Group Size 24 for CC6540E CONCRETE SAW Core Cut by Diamond Products
$311.85
2
2600070 Hydraulic Pump Unit for CC3500J Concrete Saw Core Cut by Diamond Products
$956.00
3
2703210 Solenoid Start Switch for CC6561 Concrete Saw Core Cut by Diamond Products
$100.04
4
2700243 Valve Coil for CC6561 Concrete Saw Core Cut by Diamond Products
$48.12
4
2700244 Valve Stem for CC6561 Concrete Saw Core Cut by Diamond Products
$126.72
5
2800372 Pushbutton Switch (B&G) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$81.78
5
2800373 Pushbutton Switch (B&W) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$86.09
11
2800144 Relay, 50 Amp, 12 V, SPDT for CB18BV-XL Hydraulic Power Unit Core Cut by Diamond Products
$27.64
12
2800643 Circuit Breaker 40 Amp for CC5555-3 Concrete Saw Core Cut by Diamond Products
$15.37
12
2800364 Circuit Breaker Boot for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
13
2705001 Ignition Switch & Keys for CC5555-3 Concrete Saw Core Cut by Diamond Products
$157.41
13
2705000 Ignition Keys Only (Pair) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$32.00
19
2801367 E-Stop Switch for CC5555-3 Concrete Saw Core Cut by Diamond Products
$81.10
20
6010416 Tach/Hour Meter (VDO) Calibrated for CC3500J Concrete Saw Core Cut by Diamond Products
$593.01
21
2800169 Magnetic Sensor for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$258.39
22
2801439 Fuse 10 Amp Mini (Red) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
28
2801439 Fuse 10 Amp Mini (Red) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
24
2800062 Toggle Switch for CC6540E CONCRETE SAW Core Cut by Diamond Products
$51.65
25
2500194 Spot Light, 12 Volt for CC3500J Concrete Saw Core Cut by Diamond Products
$57.00
26
2800060 Water Pressure Safety Switch for CC3500J Concrete Saw Core Cut by Diamond Products
$120.78
27
2600200 Water Pump, 12V Diaphragm for CC3500J Concrete Saw Core Cut by Diamond Products
$500.94
View full details
