CC6571-3 Access Door Assembly Parts

CC6571-3 Access Door Assembly Parts

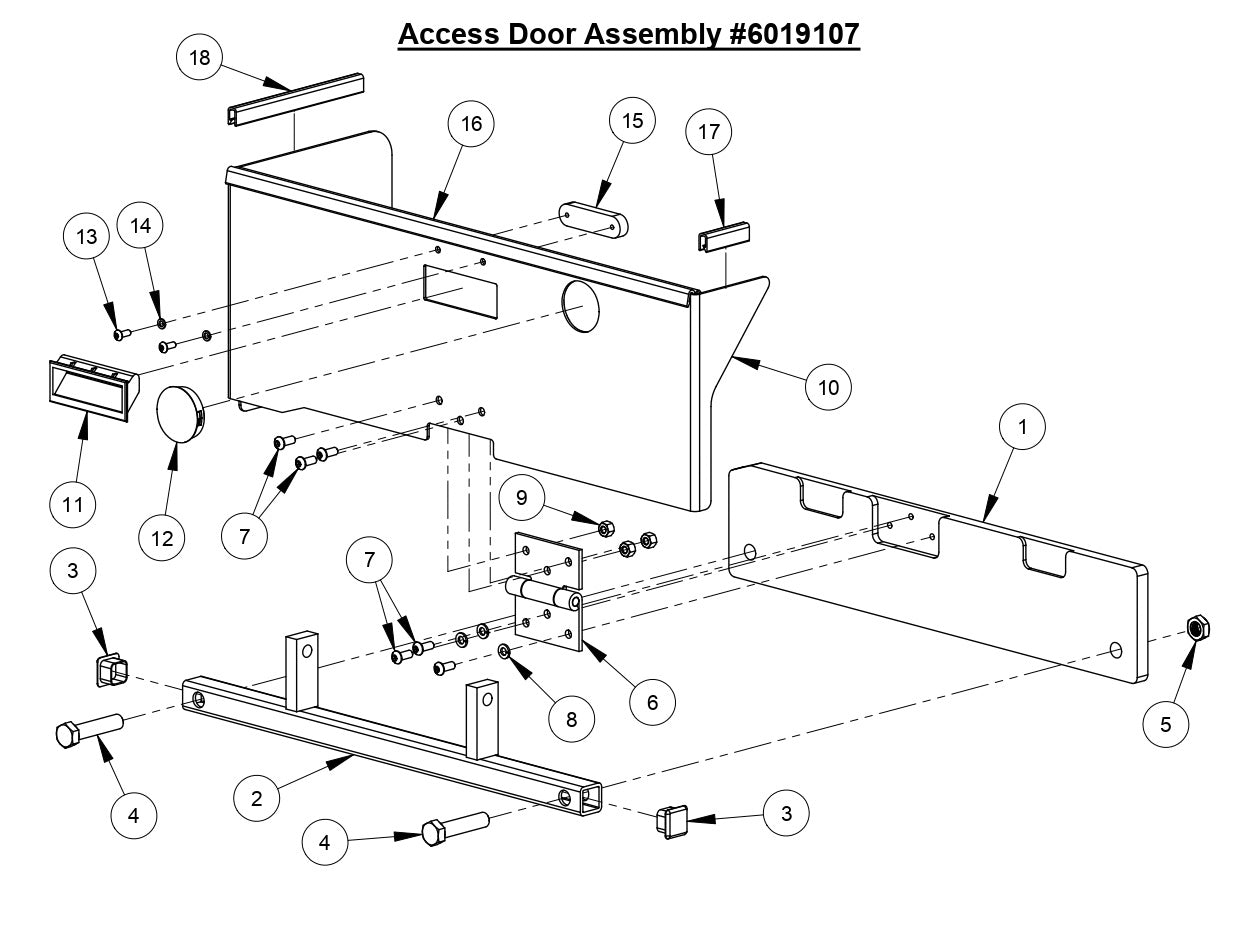

  • CC6571-3 Access Door Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6019081 Attachment Plate for CC6561-3 Concrete Saw Core Cut by Diamond Products
$140.58
2
6010979 Pointer Mount for CC6561-3 Concrete Saw Core Cut by Diamond Products
$98.34
3
2500573 Plug, 1" Square Tube for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
4
2900192 Cap Screw, Hex Hd., 1/2-13 x 2-1/4" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
5
2900543 Jam Lock Nut, 1/2-13 for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
6
Hinge Blade Guard 2500270 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$57.63
7
2900863 Cap Screw, Button Hd., 1/4-20 x 5/8" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
8
2900024 Lock Washer, 1/4" Split for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900010 Lock Nut, 1/4-20 Nylon for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
10
Diamond Products ACCESS DOOR (CC6571) 6019082
$87.00
12
2504563 Plug, 1-3/4" Hole for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
13
2901312 Cap Screw, Button Hd., #10-24 x 1/2" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
15
Diamond Products STRIKE PLATE (CC6571-3) 6019084
$41.01
16
6019127 Edge Trim Seal 21-3/4" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$21.00
17
6019128 Edge Trim 2" for CC6561-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
18
6019119 Edge Trim 6" for CC6561-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
11
2503687 Pocket Pull Handle for CC6561-3 Concrete Saw Core Cut by Diamond Products
$11.27
14
2900038 Lock Washer, #10 Split for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
