CC6571-3 Clutch Fan Drive Assembly Parts

CC6571-3 Clutch Fan Drive Assembly Parts

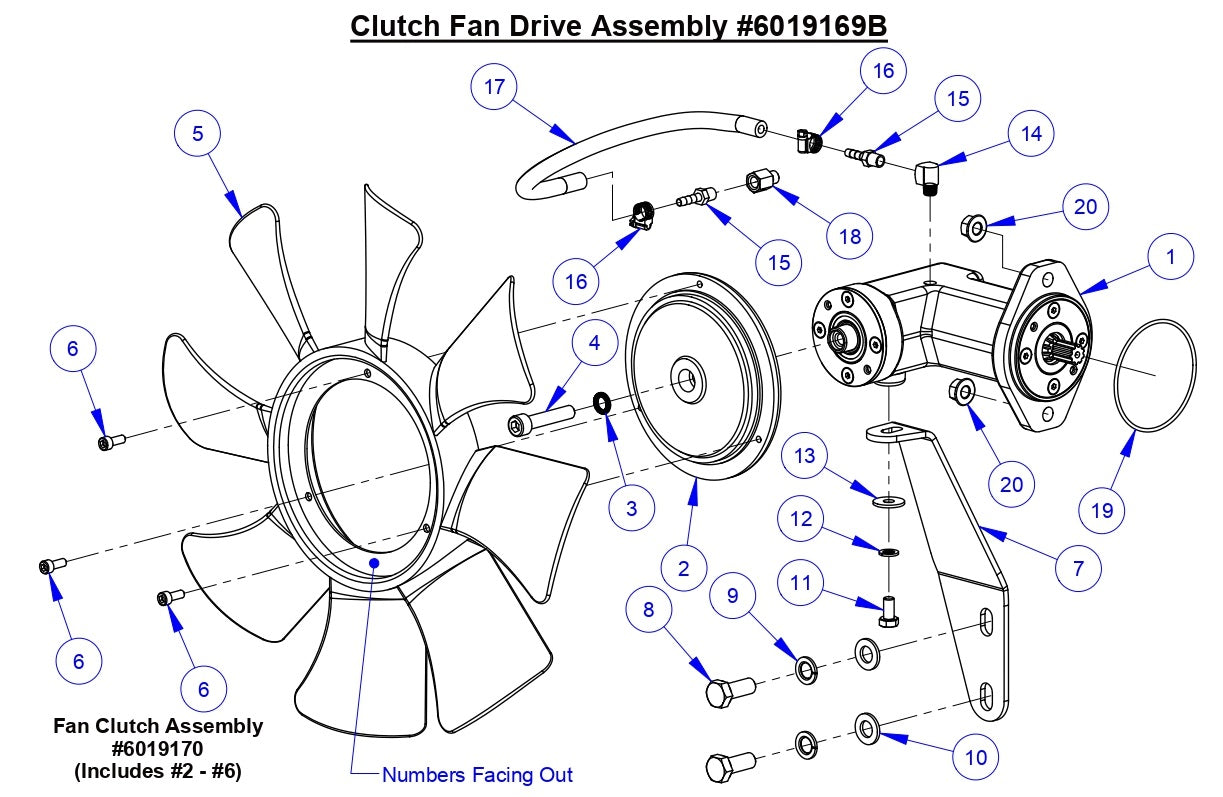

  • CC6571-3 Clutch Fan Drive Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Right Angle Drive Assy. For CC6571 Saw 6019176 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$1,230.57
2
Fan Clutch, Viscous Cw 2504585 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$215.59
3
2901575 Wedge Lock Washer Pair, M10 for CC6561-3 Concrete Saw Core Cut by Diamond Products
$4.19
4
2901506 Cap Screw, Soc. Hd., M10-1.5 x 50mm for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
5
Fan, 17" Kubota (drilled) For CC6571 Saw 6019143 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$383.66
6
2900553 Cap Screw, Soc. Hd., M6-1.0 x 16mm for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
7
Fan Drive Brace (CC6571) 6019038 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$65.17
8
2900746 Cap Screw, Hex Hd., M12-1.25 x 30mm for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
9
2900699 Lock Washer, M12 Split for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
10
2901357 Flat Washer, M12 for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
11
2900868 Cap Screw, Hex Hd., M8-1.25 x 16mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$2.99
12
2900763 Lock Washer, M8 Split for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900383 Fender Washer, M8 for CC6540E CONCRETE SAW Core Cut by Diamond Products
$3.99
14
1/8" Street Elbow (brass) 3200156 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$16.71
15
1/8"M.PIPE- 1/4"HOSE Barb 3200018 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$8.86
16
3200062 Hose Clamp #4 for CC6561 Concrete Saw Core Cut by Diamond Products
$7.33
17
6019188 Hose, 1/4" I.D. x 13" Long for CC6571 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
18
3202099 Adapter, 1/8" M. BSPT to 1/8" F. Pipe for CC6561-3 Concrete Saw Core Cut by Diamond Products
$8.04
19
O-ring AS568A-152 Viton 2503897 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$15.86
20
M10-1.25 Hex Flange Nut 2901398 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$5.33
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
