CC6571-3 PTO Assembly Parts

CC6571-3 PTO Assembly Parts

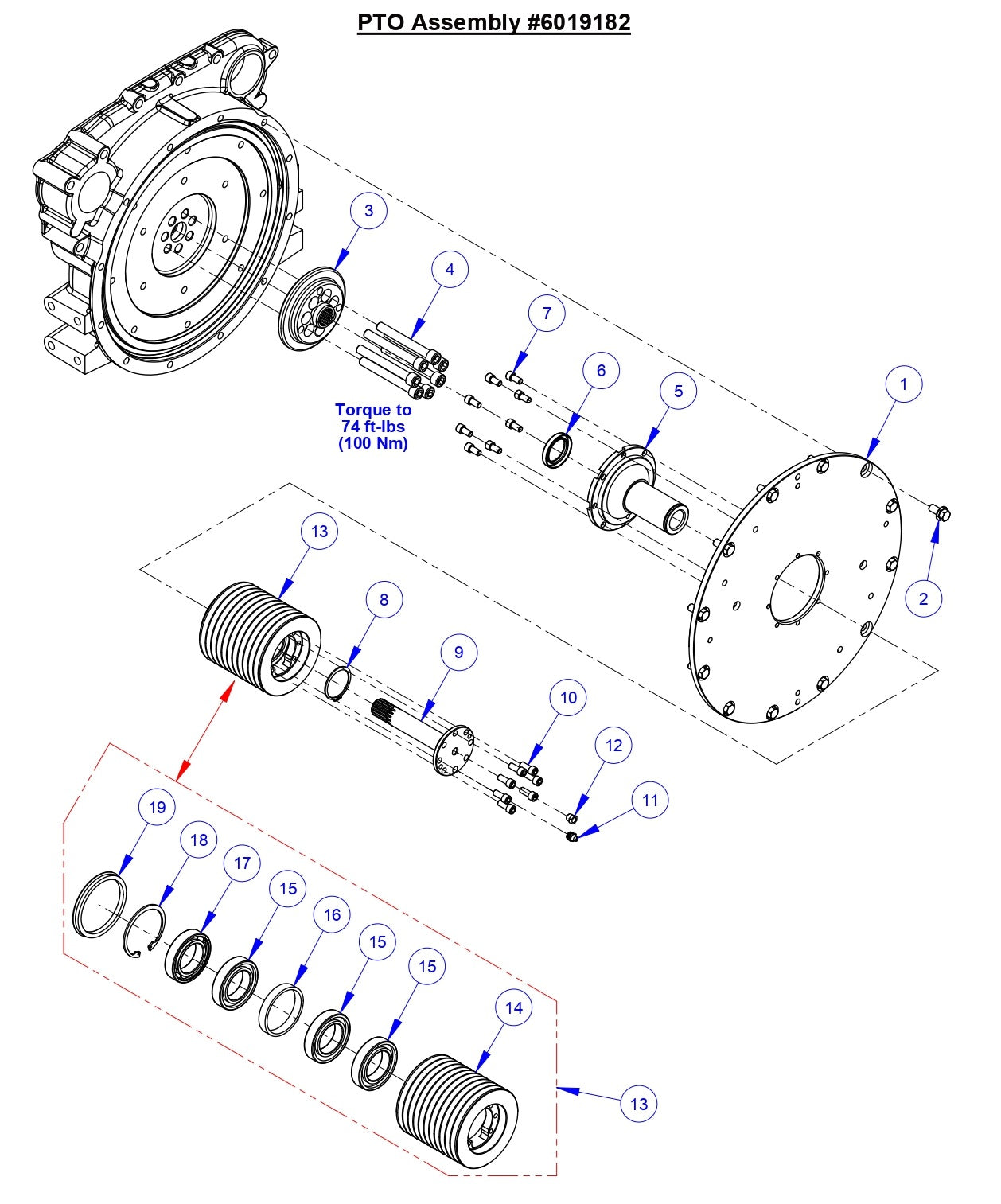

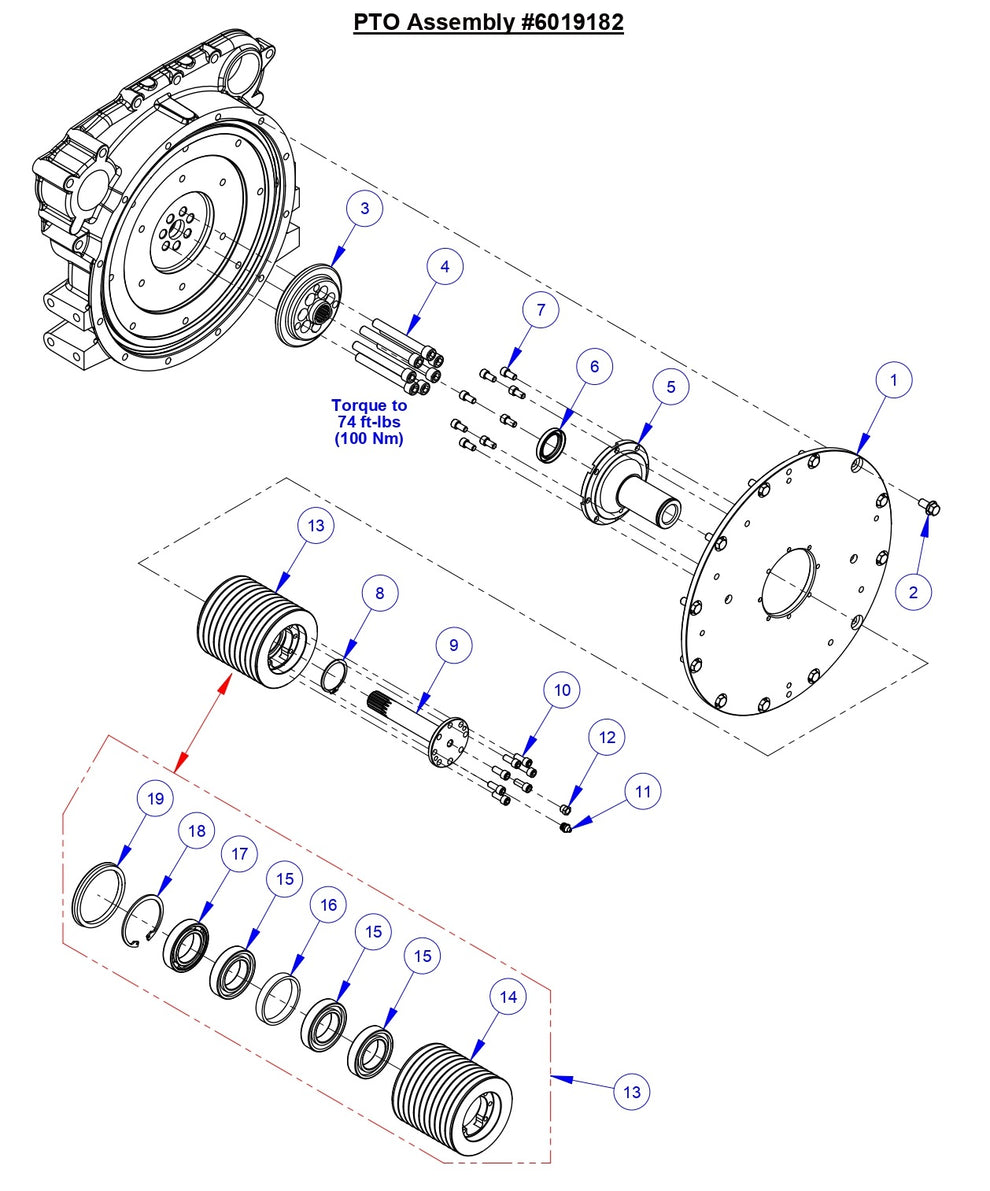

  • CC6571-3 PTO Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products INNER RING SUPPORT FOR CC6571-3 PTO 6019156
$624.69
2
2901394 Flange Bolt, Hex Hd., M10-1.25 x 20mm for CC6571 Concrete Saw Core Cut by Diamond Products
$6.99
3
6019141 Coupling Hub for CC6571 Concrete Saw Core Cut by Diamond Products
$374.30
4
M12-1.25 X 100 Soc Hd Cap Fine Thread Class 12.9 2900882 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$20.81
5
6019062 Shaft Support Sleeve for CC6561-3 Concrete Saw Core Cut by Diamond Products
$378.18
6
2503666 Seal, 1-3/8" x 2" x 5/16" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$32.28
7
2900898 Cap Screw, Soc. Hd., 5/16-18 x 5/8" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
8
2503758 Retaining Ring, 45mm External for CC6561-3 Concrete Saw Core Cut by Diamond Products
$11.82
9
6019064 Splined Drive Shaft for CC6561-3 Concrete Saw Core Cut by Diamond Products
$326.70
10
2900912 Cap Screw, Soc. Hd., 5/16-18 x 3/4" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
11
1/8 Npt Grease Fitting 2900062 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$3.99
12
3201998 Breather Vent, 1/8" NPT for CC6561-3 Concrete Saw Core Cut by Diamond Products
$8.35
13
6019183 Sheave Assembly for CC6561-3 Concrete Saw Core Cut by Diamond Products
$509.85
14
6019157 Sheave, 4.75" x 11 Groove for CC6561-3 Concrete Saw Core Cut by Diamond Products
$425.70
15
2503760 Ball Bearing, 45 x 75 x 16 open for CC6561-3 Concrete Saw Core Cut by Diamond Products
$17.69
16
Bearing Spacer 75 X 12 6019066 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$50.18
17
2503759 Ball Bearing, 45 x 75 x 16 w/seal for CC6561-3 Concrete Saw Core Cut by Diamond Products
$13.53
18
2503757 Retaining Ring, 75mm Internal for CC6561-3 Concrete Saw Core Cut by Diamond Products
$11.17
19
2503756 Seal, 80mm V-Ring for CC6561-3 Concrete Saw Core Cut by Diamond Products
$22.60
