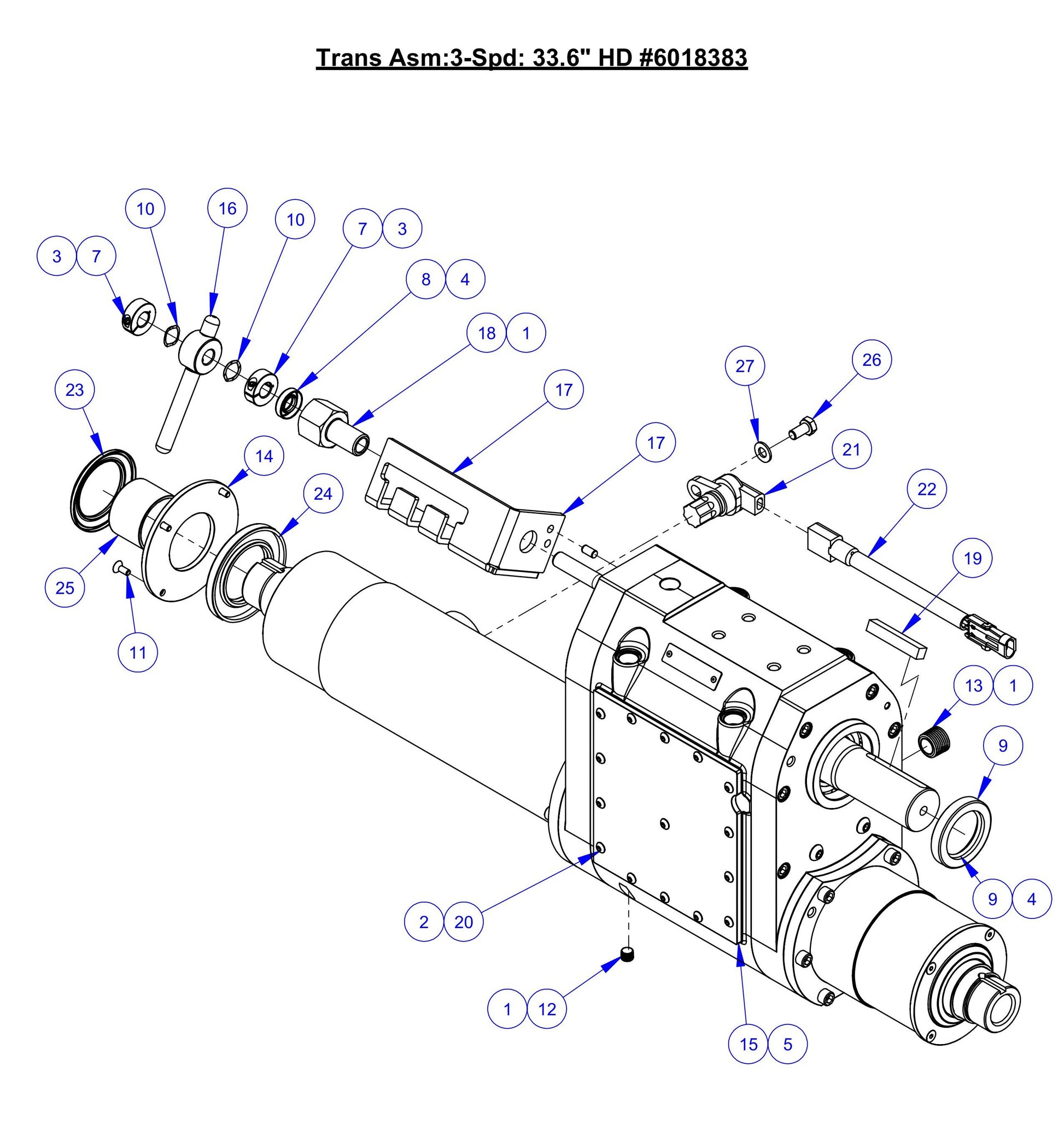

CC6571-3 Trans Asm:3-Spd: 33.6" HD Assembly Parts

CC6571-3 Trans Asm:3-Spd: 33.6" HD Assembly Parts

  • CC6571-3 Trans Asm:3-Spd: 33.6" HD Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2401311 Loctite #567 Thread Sealant for CC6561-3 Concrete Saw Core Cut by Diamond Products
$290.40
2
2401315 Loctite #242 Blue for CC6561-3 Concrete Saw Core Cut by Diamond Products
$92.06
3
2401316 Loctite #262 Red for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1,212.00
4
2502046 Grease, Fuchs Synthetic for CC6561-3 Concrete Saw Core Cut by Diamond Products
$104.38
5
2503802 Permatex Ultra Black for CC6561-3 Concrete Saw Core Cut by Diamond Products
$112.00
6
2503930 Gear Oil, 75W90 Synthetic for CC6561-3 Concrete Saw Core Cut by Diamond Products
$50.89
7
2504769 1/2" Split Shaft Collar for CC6561-3 Concrete Saw Core Cut by Diamond Products
$6.76
8
2506441 Oil Seal, 1/2 x 1.00 x 1/4" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$14.57
9
2506443 Oil Seal, 40 x 60 x 10mm for CC6561-3 Concrete Saw Core Cut by Diamond Products
$15.12
10
2506445 1/2" Wave Washer for CC6561-3 Concrete Saw Core Cut by Diamond Products
$9.62
11
2900978 Cap Screw, Flat Hd., #10-24 x 1/2" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
12
3200001 Plug, 1/8" NPT for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
13
3202334 1/2" NPTF Magnetic Pipe Plug for CC6561-3 Concrete Saw Core Cut by Diamond Products
$11.21
15
6018056 Heat Exchanger Cover Plate for CC6561-3 Concrete Saw Core Cut by Diamond Products
$47.08
16
6018063 Shift Lever Assembly for CC6561-3 Concrete Saw Core Cut by Diamond Products
$215.82
17
6018064 Shift Bracket for CC6561-3 Concrete Saw Core Cut by Diamond Products
$50.56
18
6018065 Shifter Housing for CC6561-3 Concrete Saw Core Cut by Diamond Products
$157.20
19
6047959 Key, 3/8" Sq. x 2-1/4" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$6.99
20
2901312 Cap Screw, Button Hd., #10-24 x 1/2" for CC6561-3 Concrete Saw Core Cut by Diamond Products
$1.99
21
2801642 Speed Sensor for CC5555-3 Concrete Saw Core Cut by Diamond Products
$87.16
23
2504835 Axial Face Seal fits CC6571 by Core Cut Diamond Products
$40.44
26
M8 X 16 Hex Head Capscrew 2900868 Fits Core Cut CC6571 Walk Behind Saw By Diamond Products
$2.99
27
2900022 Flat Washer, 5/16" SAE for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
14
Call for Price call for price call for price
22
Call for Price call for price call for price
24
Call for Price call for price call for price
25
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.
