CC6571, CC6571-3 Air Cleaner Assembly Parts

CC6571, CC6571-3 Air Cleaner Assembly Parts

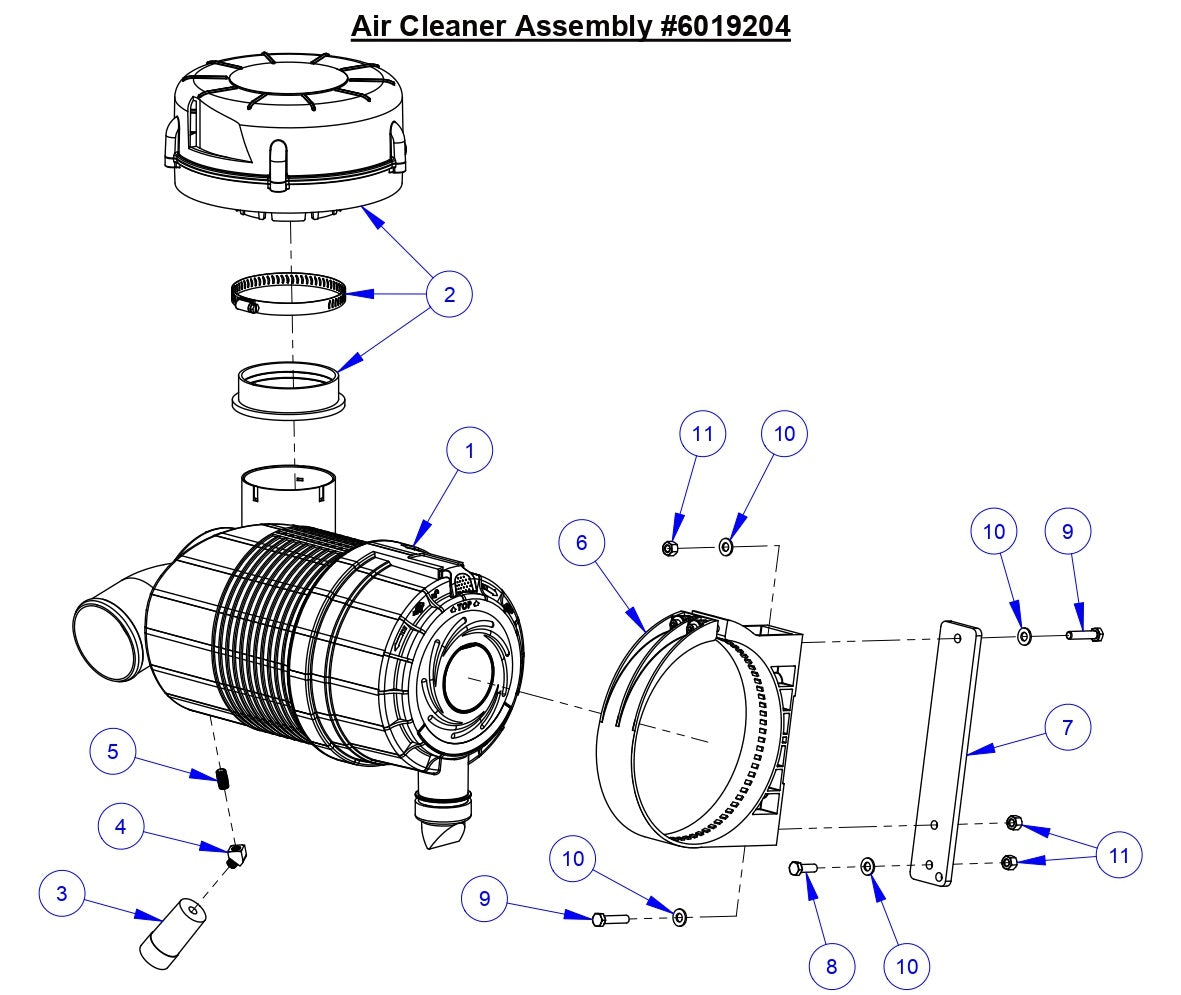

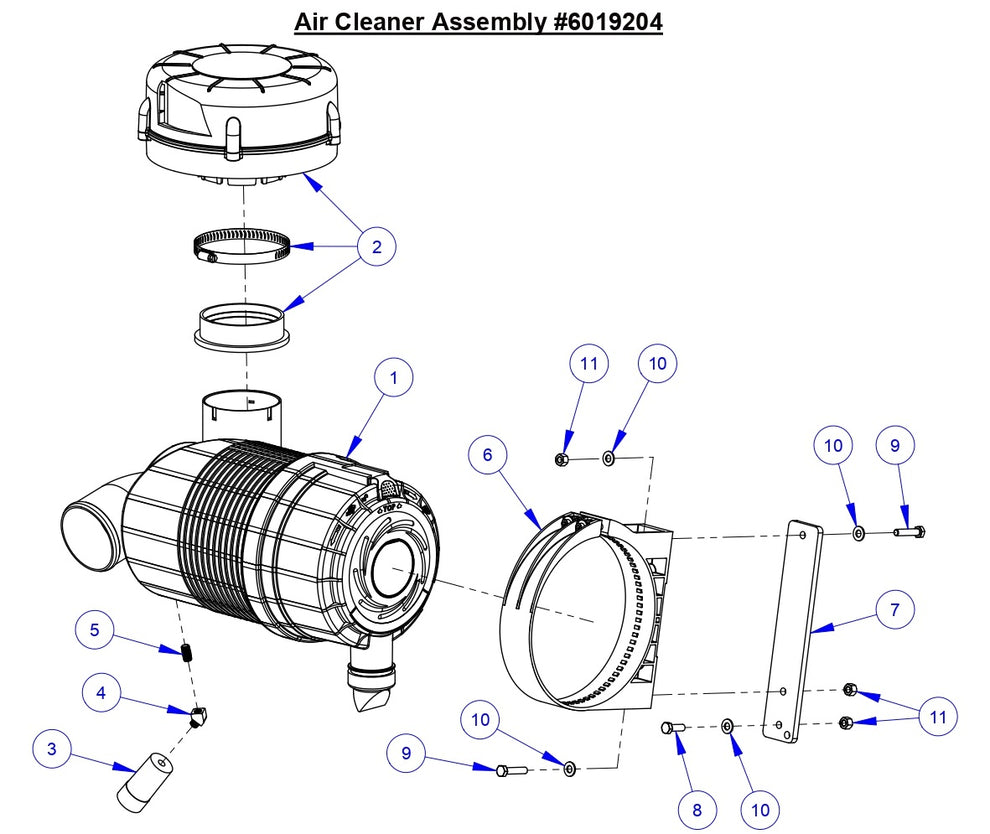

  • CC6571/CC6571-3 Air Cleaner Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2502182 Air Cleaner Complete for CC6571 Concrete Saw Core Cut by Diamond Products
$248.49
1
2501352 Outer Primary Filter for CC6571 Concrete Saw Core Cut by Diamond Products
$135.90
1
2501353 Inner Safety Filter for CC6571 Concrete Saw Core Cut by Diamond Products
$90.00
1
2500239 Rubber Dust Ejector Boot for CC6571 Concrete Saw Core Cut by Diamond Products
$35.30
2
2501504 Pre-Cleaner w/Clamp & Adapter Ring for CC6571 Concrete Saw Core Cut by Diamond Products
$223.74
3
2500423 Restriction Indicator for CC6571 Concrete Saw Core Cut by Diamond Products
$84.20
4
3200099 Street Elbow, 1/8" NPT x 45 Deg. for CC6571 Concrete Saw Core Cut by Diamond Products
$19.30
5
3200117 Close Nipple, 1/8" NPT for CC6571 Concrete Saw Core Cut by Diamond Products
$5.95
6
2501351 Mounting Band, Polymer for CC6571 Concrete Saw Core Cut by Diamond Products
$79.00
7
6017387 Air Filter Mount Plate for CC6571 Concrete Saw Core Cut by Diamond Products
$55.30
8
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900508 Cap Screw, Hex Hd., 5/16-18 x 1-1/2" for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900022 Flat Washer 5/16" SAE 5/16" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900039 Lock Nut, 5/16-18 Nylon for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
