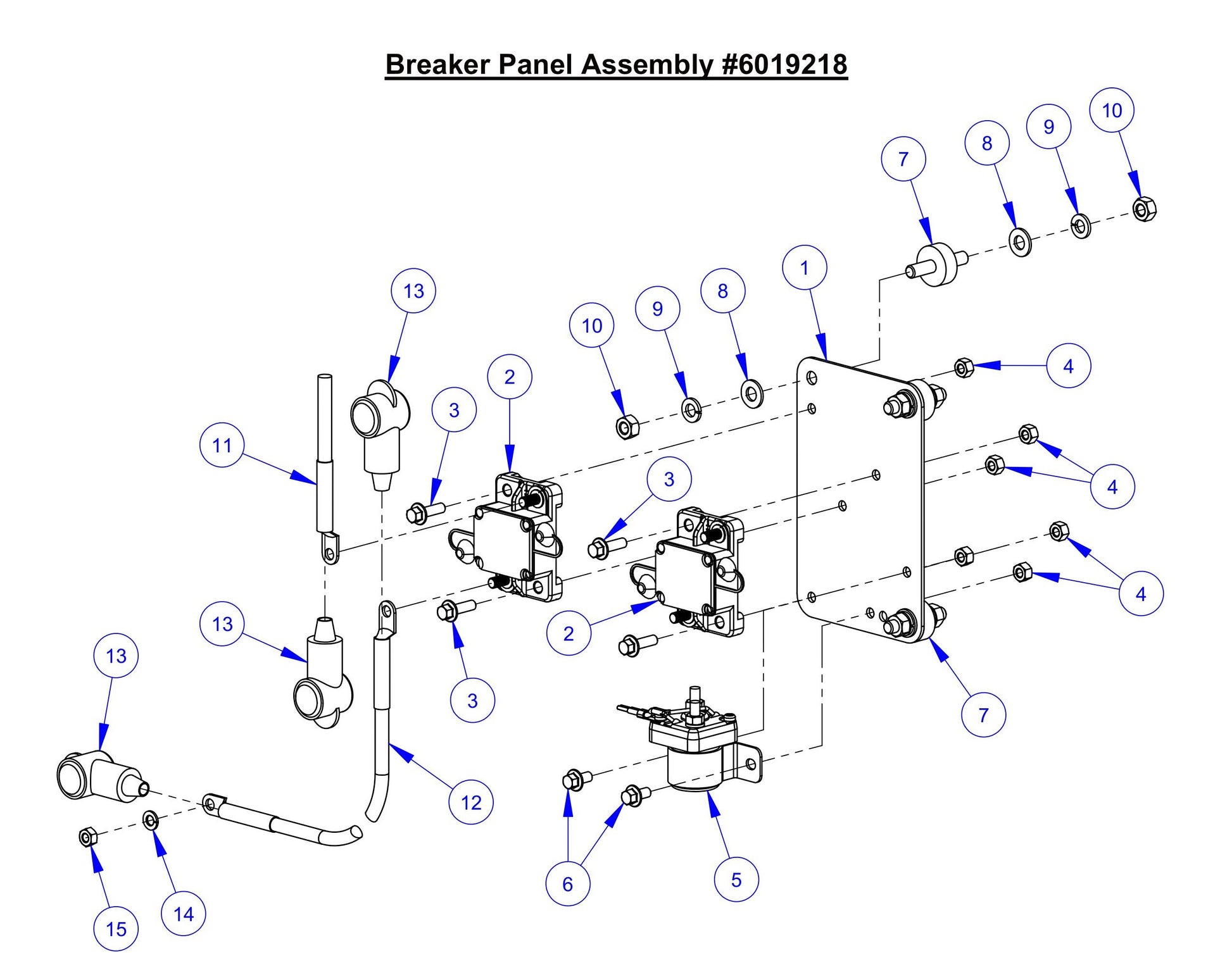

CC6571, CC6571-3 Breaker Panel Assembly Parts

CC6571, CC6571-3 Breaker Panel Assembly Parts

  • CC6571, CC6571-3 Breaker Panel Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6019255 Breaker Panel for CC6571 Concrete Saw Core Cut by Diamond Products
$25.09
2
2801277 Circuit Breaker, 100 Amp for CC6571 Concrete Saw Core Cut by Diamond Products
$85.01
3
2900328 Flange Bolt, M6 x 20mm for CC6571 Concrete Saw Core Cut by Diamond Products
$3.99
4
2900302 Lock Nut, M6-1.0 Nylon Insert for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
5
2808227 Glow Plug Relay fits CC6571 by Core Cut Diamond Products
$333.63
6
2901370 Cap Screw, Hex hd., M6-1.0X12mm fits CC6571 by Core Cut Diamond Products
$2.99
7
2506010 Vibration Isolator, 5/16-18 for CC6571 Concrete Saw Core Cut by Diamond Products
$40.80
8
2900022 Flat Washer, 5/16" SAE for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
9
2900031 Lock Washer, 5/16" Split for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900141 Hex Nut, 5/16-18 for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
11
2802008 Cable 33" (Red) for CC6571 Concrete Saw Core Cut by Diamond Products
$71.02
12
2802009 Cable 41" (Red) for CC6571 Concrete Saw Core Cut by Diamond Products
$68.40
13
2800197 Battery Boot, Small (Red) for CC6571 Concrete Saw Core Cut by Diamond Products
$14.20
14
2900765 Lock Washer, M6 Split for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900305 Hex Nut, M6-1.0 for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
