CC6571, CC6571-3 Control Lever Assembly Parts

CC6571, CC6571-3 Control Lever Assembly Parts

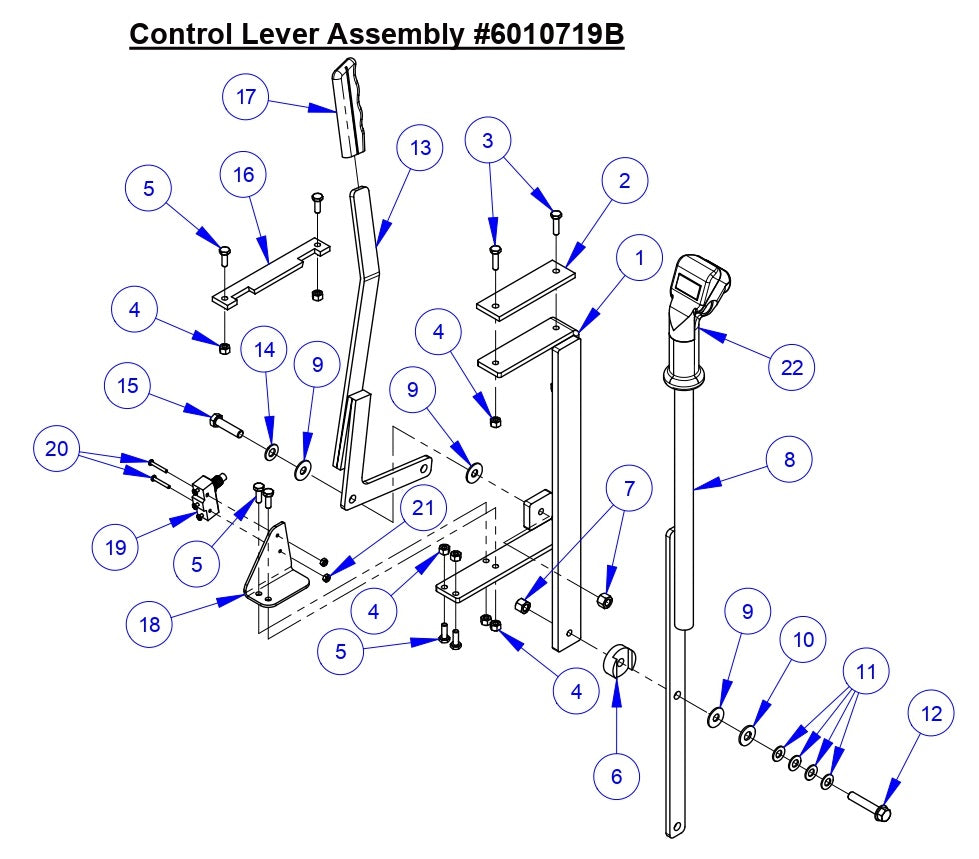

  • CC6571CC6571-3 Control Lever Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6010056 Lever Support Weldment for CC6571 Concrete Saw Core Cut by Diamond Products
$129.20
2
2501339 Rubber Support Mount for CC6571 Concrete Saw Core Cut by Diamond Products
$26.60
3
2900008 Cap Screw, Hex Hd., 1/4-20 x 1" for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900010 Lock Nut, 1/4-20 Nylon for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900144 Cap Screw, Hex Hd., 1/4-20 x 3/4" for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
6
6010055 Friction Spacer for CC6571 Concrete Saw Core Cut by Diamond Products
$28.60
7
2900018 Lock Nut, 3/8-16 Nylon for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
8
6010314 Speed Control Lever for CC6571 Concrete Saw Core Cut by Diamond Products
$102.40
9
2900153 Friction Washer, 3/8" for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900473 Flat Washer, 3/8" USS for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900474 Belleville Washer for CC6571 Concrete Saw Core Cut by Diamond Products
$7.46
12
2900472 Cap Screw, Hex Flange Hd., 3/8-16 x 2" for CC6571 Concrete Saw Core Cut by Diamond Products
$5.00
13
6010057 Engagement Lever Weldment for CC6571 Concrete Saw Core Cut by Diamond Products
$85.90
14
2900014 Flat Washer, 3/8" SAE for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
15
2900029 Cap Screw, Hex Hd., 3/8-16 x 1-1/2" for CC6571 Concrete Saw Core Cut by Diamond Products
$5.95
16
6010058 Gate Plate for CC6571 Concrete Saw Core Cut by Diamond Products
$36.20
17
2500002 Lever Grip for CC6571 Concrete Saw Core Cut by Diamond Products
$22.60
18
6019256 Switch Bracket for CC6571 Concrete Saw Core Cut by Diamond Products
$24.75
19
2800926 Door Interlock Switch for CC6571 Concrete Saw Core Cut by Diamond Products
$64.57
20
2900532 Machine Screw, Pan Hd., #6-32 x 1" for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
21
2901325 Lock Nut, #6-32 Nylon for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
22
6010319 Control Grip Assembly for CC6571 Concrete Saw Core Cut by Diamond Products
$226.71
View full details
