CC6571, CC6571-3 ECU Assembly Parts

CC6571, CC6571-3 ECU Assembly Parts

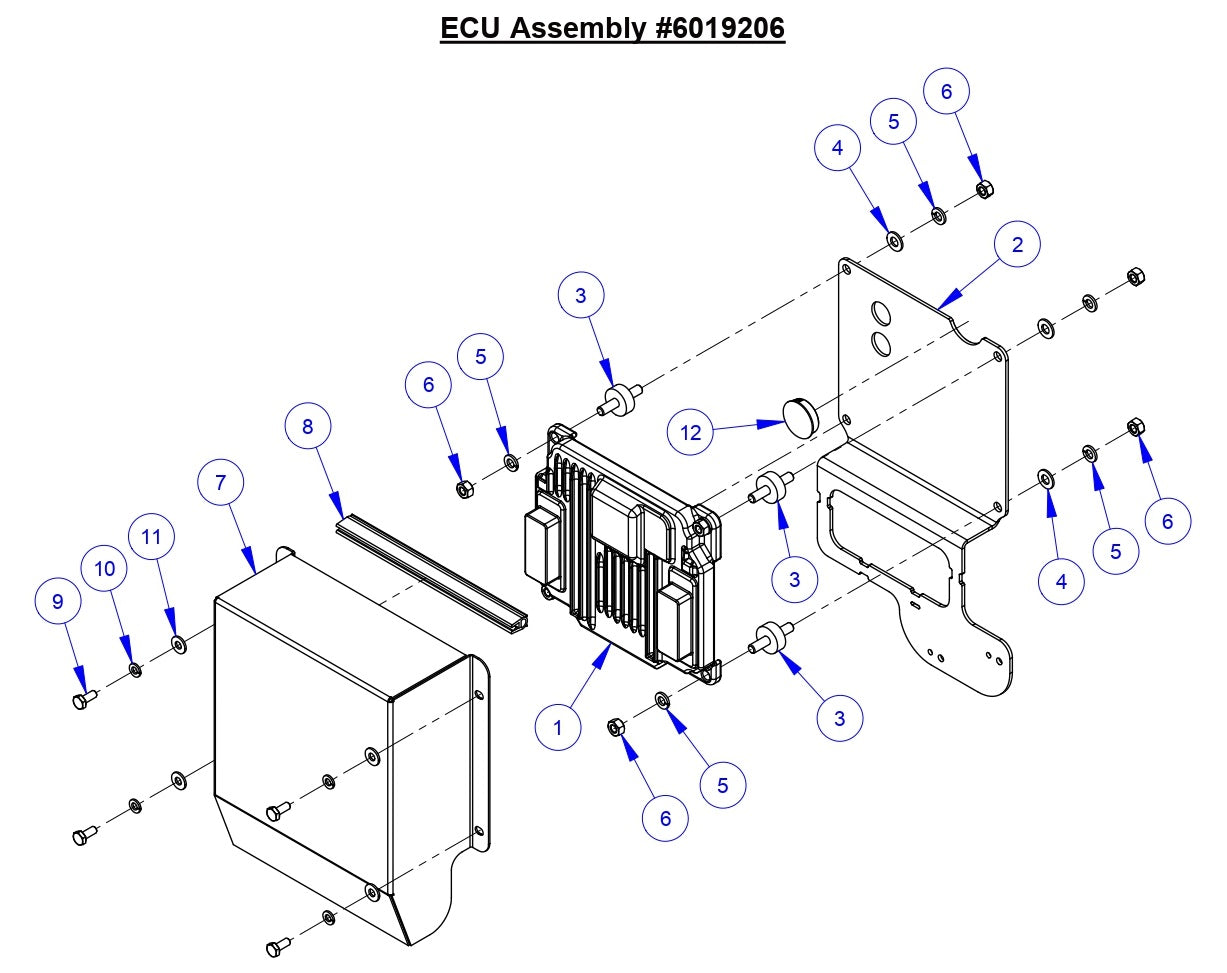

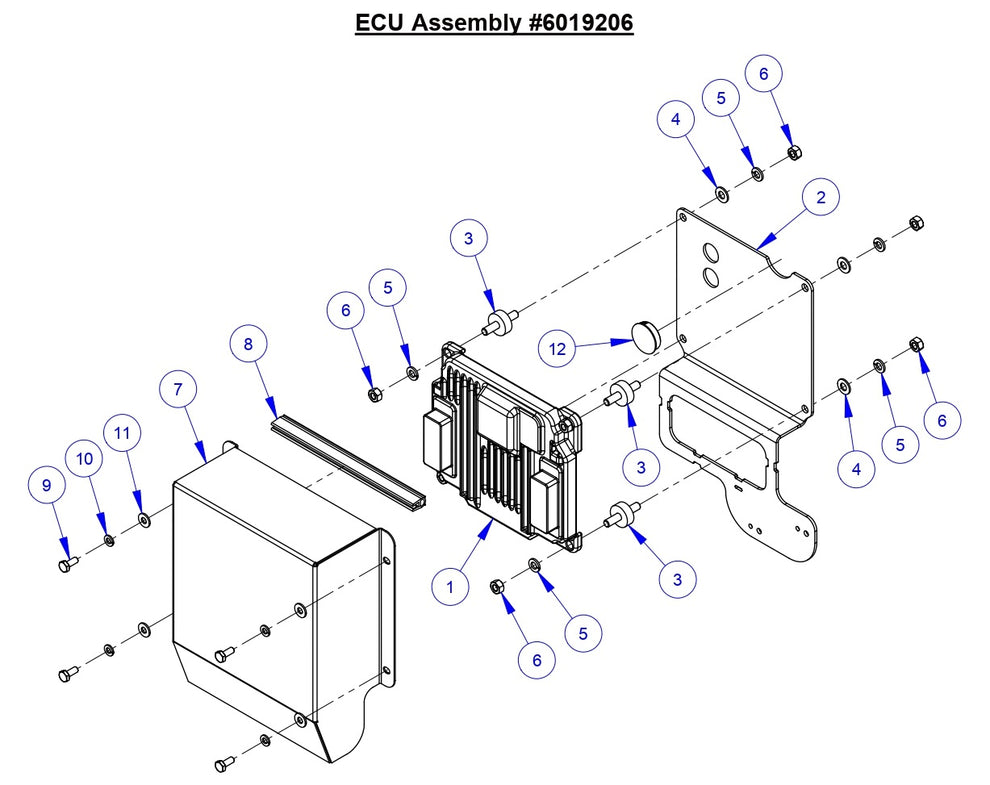

  • CC6571/CC6571-3 ECU Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2705148 Engine Control Unit (ECU) for CC6571 Concrete Saw Core Cut by Diamond Products
$7,360.65
2
6019276 ECU Mounting Bracket for CC6571 Concrete Saw Core Cut by Diamond Products
$102.60
3
2506010 Vibration Isolator, 5/16-18 for CC6571 Concrete Saw Core Cut by Diamond Products
$40.80
4
2900022 Flat Washer, 5/16" SAE for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900031 Lock Washer, 5/16" Split for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900141 Hex Nut, 5/16-18 for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
7
6019240 ECU Cover for CC6571 Concrete Saw Core Cut by Diamond Products
$152.30
8
6019259 Edge Trim Seal 8-1/4" for CC6571 Concrete Saw Core Cut by Diamond Products
$28.10
9
2900023 Cap Screw, Hex Hd., 1/4-20 x 5/8" for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
10
2900024 Lock Washer, 1/4" Split for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
11
2900009 Flat Washer, 1/4" SAE for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
12
2501146 Plug, 1-1/4" Hole for CC6571 Concrete Saw Core Cut by Diamond Products
$3.99
