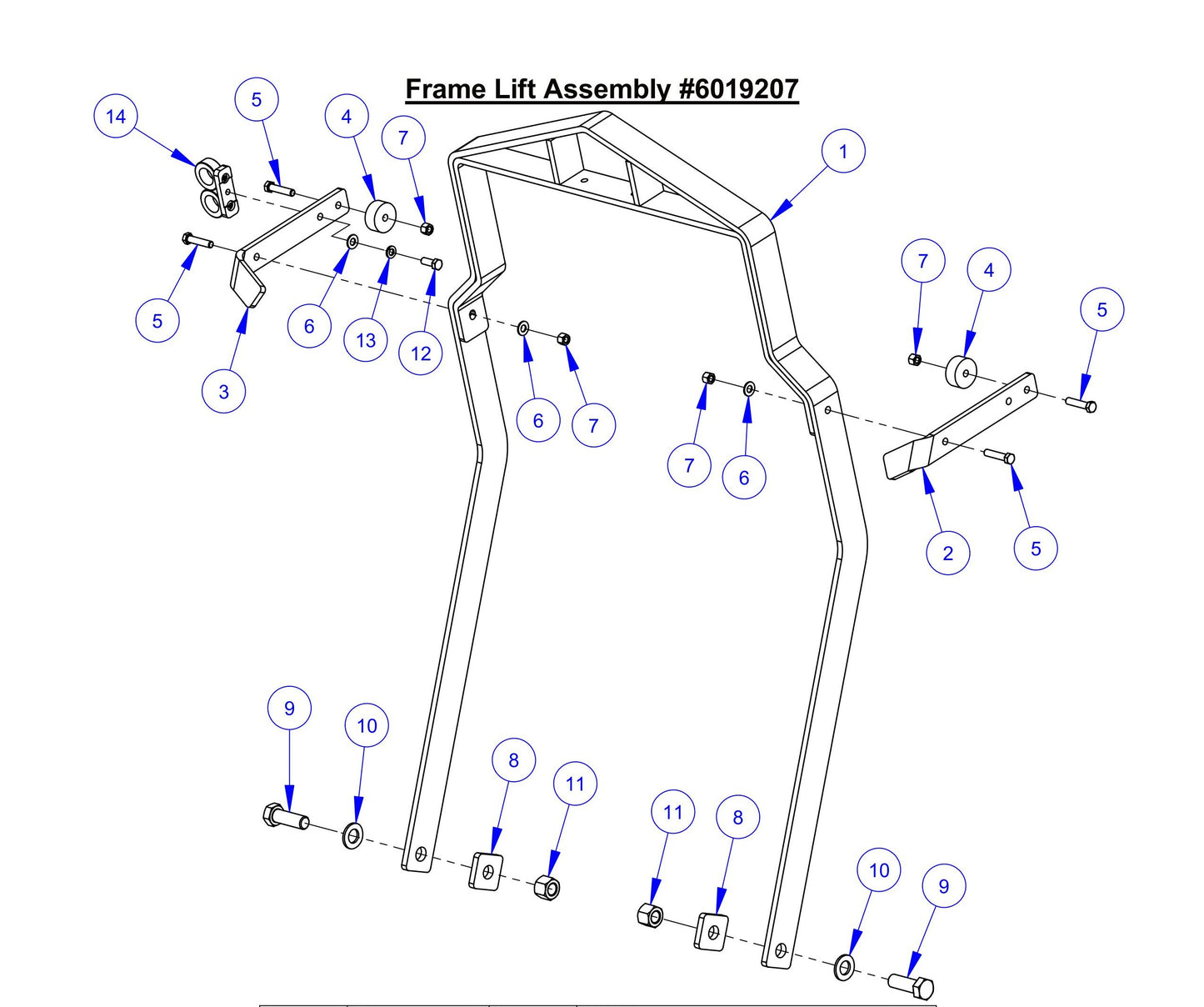

CC6571, CC6571-3 Frame Lift Assembly Parts

CC6571, CC6571-3 Frame Lift Assembly Parts

  • CC6571, CC6571-3 Frame Lift Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6019241 Frame Lift for CC6571 Concrete Saw Core Cut by Diamond Products
$664.29
2
Diamond Products FRAME LIFT STOP BRACE FOR LEFT MUFFLER SIDE 6019242A
$38.83
3
Diamond Products FRAME LIFT STOP BRACE FOR RIGHT BLADE SIDE 6019242B
$38.83
4
6019274 Spacer, 3/4" Thick for CC6571 Concrete Saw Core Cut by Diamond Products
$37.20
5
2900047 Cap Screw, Hex Hd., 3/8-16 x 1-3/4" for CC6571 Concrete Saw Core Cut by Diamond Products
$3.99
6
2900014 Flat Washer, 3/8" SAE for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
7
2900018 Locknut, 3/8-16, Nylon for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
8
6013053 Frame Lift Spacer for CC6571 Concrete Saw Core Cut by Diamond Products
$25.90
9
2900465 Cap Screw, Hex Hd., 3/4-10 x 2-1/4" for CC6571 Concrete Saw Core Cut by Diamond Products
$12.10
10
2900003 Flat Washer, 3/4" SAE for CC6571 Concrete Saw Core Cut by Diamond Products
$3.99
11
2900467 Lock Nut, 3/4-10 Nylon for CC6571 Concrete Saw Core Cut by Diamond Products
$11.10
12
2900005 Cap Screw, Hex Hd., 3/8-16 x 1" for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
13
2900006 Lock Washer, 3/8" Split fits CC6571 by Core Cut Diamond Products
$6.00
14
6011819 Handle Bar Storage Clamp fits CC6571 by Core Cut Diamond Products
Call for Price call for price call for price
View full details
