CC6571, CC6571-3 Fuel Cooler Assembly Parts

CC6571, CC6571-3 Fuel Cooler Assembly Parts

  • CC6571, CC6571-3 Fuel Cooler Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2506054 Fuel Cooler for CC6571 Concrete Saw Core Cut by Diamond Products
$226.00
2
6019280 Cooler Cushion for CC6571 Concrete Saw Core Cut by Diamond Products
$58.20
3
2902006 Cap Screw, Hex Hd., M5-0.8 x 16mm for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
4
2900767 Lock Washer, M5 Split for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
5
2900770 Fender Washer, M5 for CC6571 Concrete Saw Core Cut by Diamond Products
$2.99
6
3201461 Elbow, 1/2" M. JIC to 1/2" M. Pipe for CC6571 Concrete Saw Core Cut by Diamond Products
$20.30
7
3200283 Adapter, 1/2" M. Pipe x 1/2" M. JIC for CC6571 Concrete Saw Core Cut by Diamond Products
$13.80
8
3200229 Reducer, 1/2" M. to 1/4" F. Pipe for CC6571 Concrete Saw Core Cut by Diamond Products
$17.10
9
3200599 Elbow, 1/4" M. Pipe to 5/16" Hose Barb for CC6571 Concrete Saw Core Cut by Diamond Products
$25.20
10
3200062 Hose Clamp #4 for CC6571 Concrete Saw Core Cut by Diamond Products
$7.33
11
6017348 Fuel Hose, 5/16" I.D. x 24" for CC6571 Concrete Saw Core Cut by Diamond Products
$31.44
12
6019272 Fuel Hose, 5/16" I.D. x 36" for CC6571 Concrete Saw Core Cut by Diamond Products
$43.66
View full details

Frequently asked questions

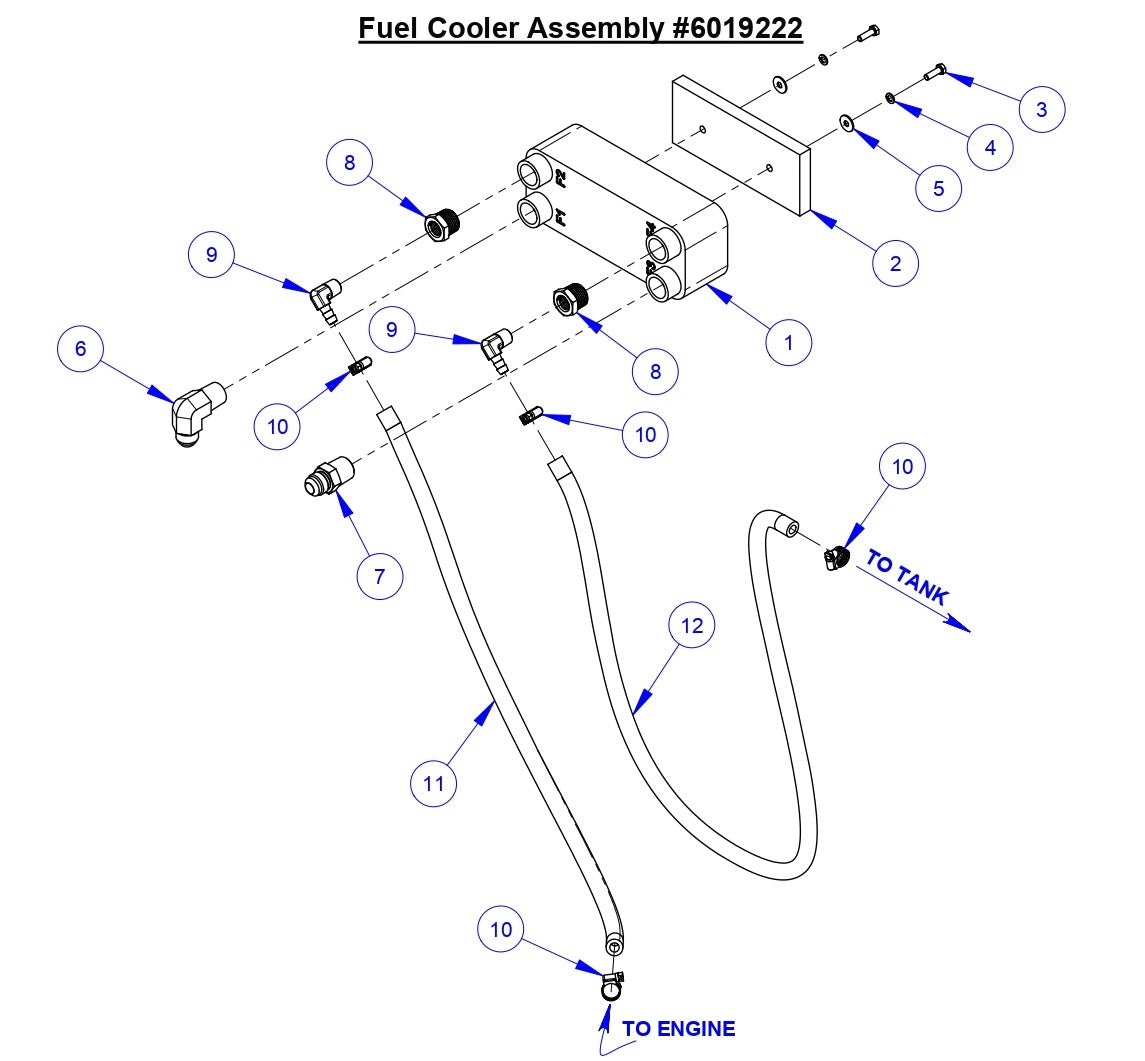

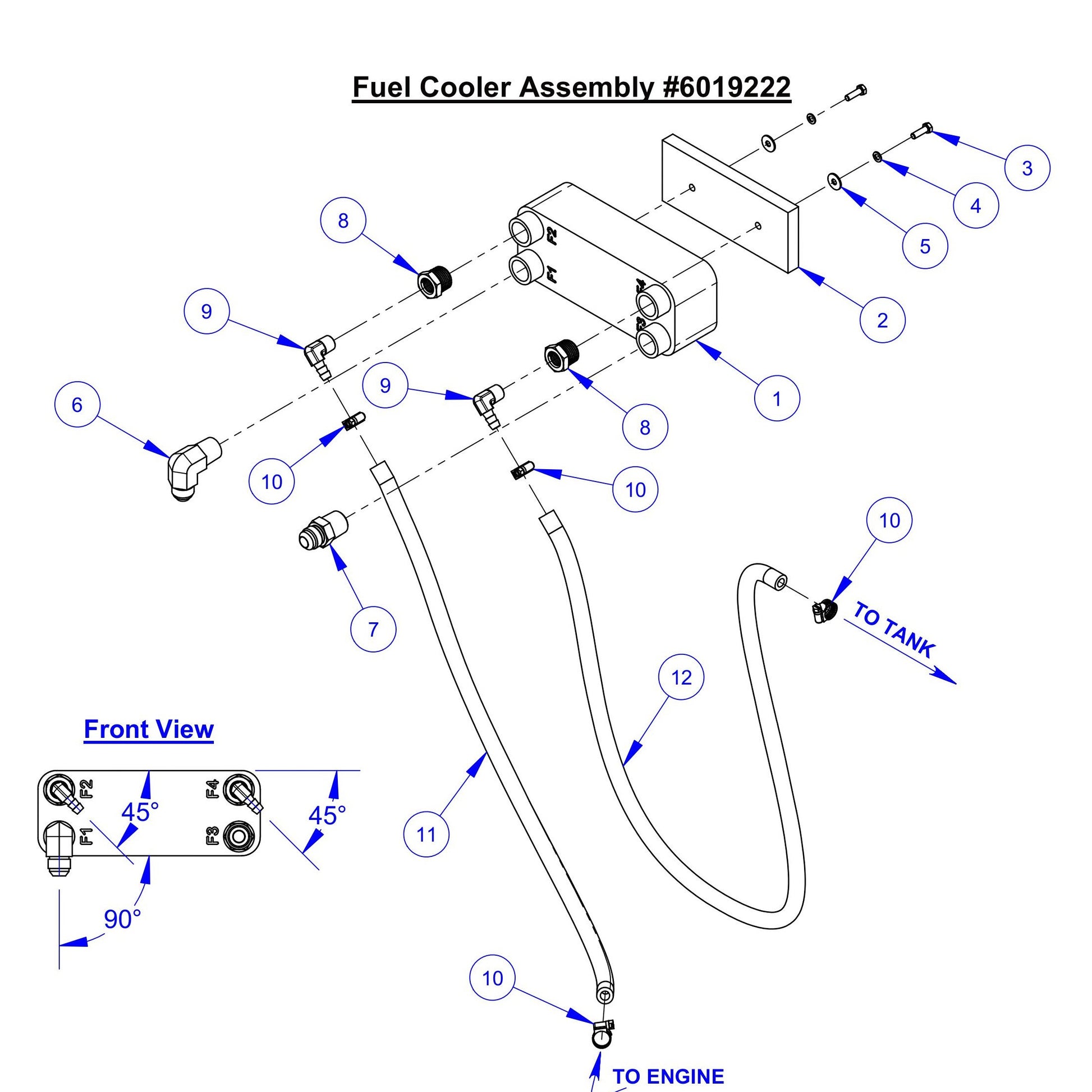

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.
