Description

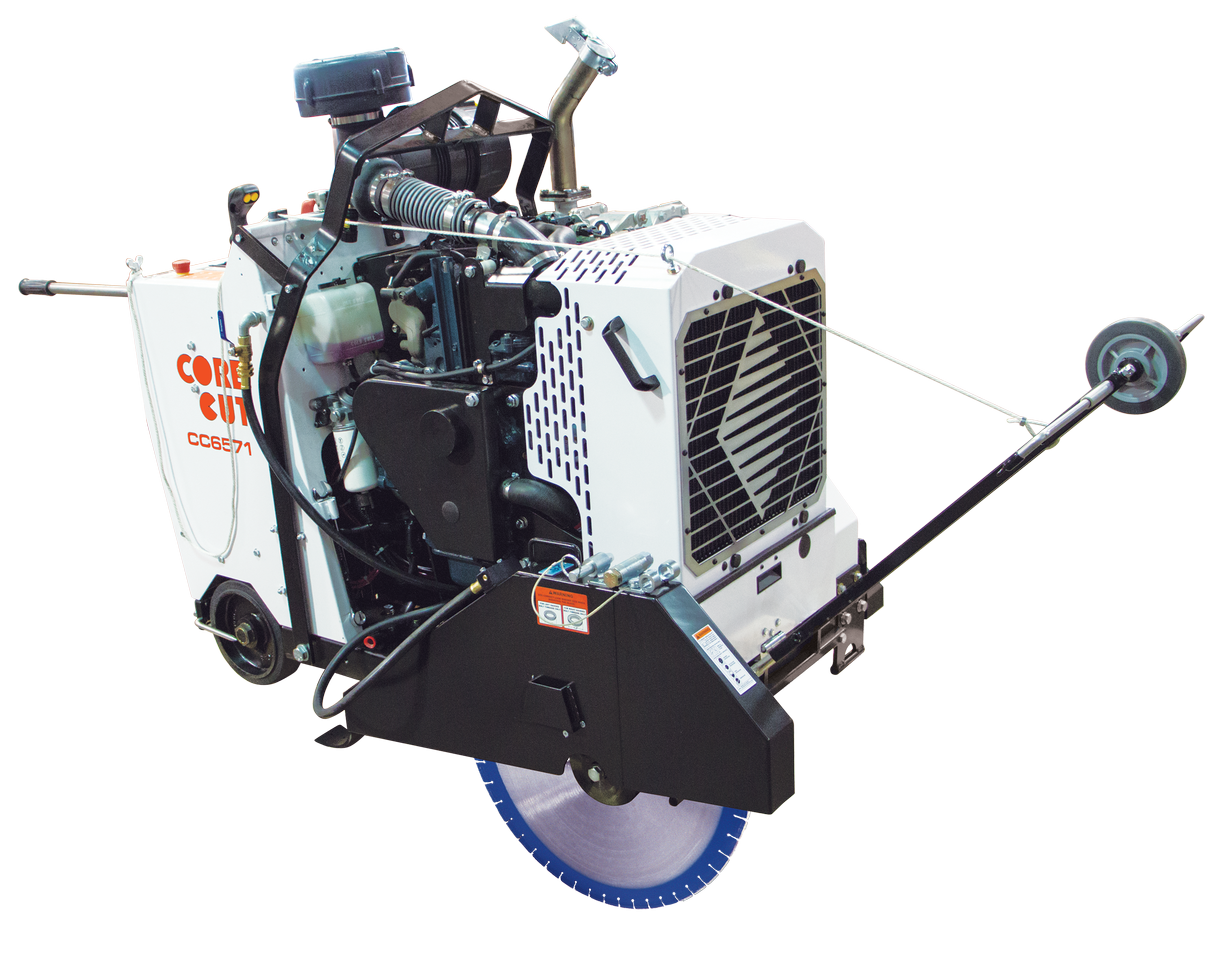

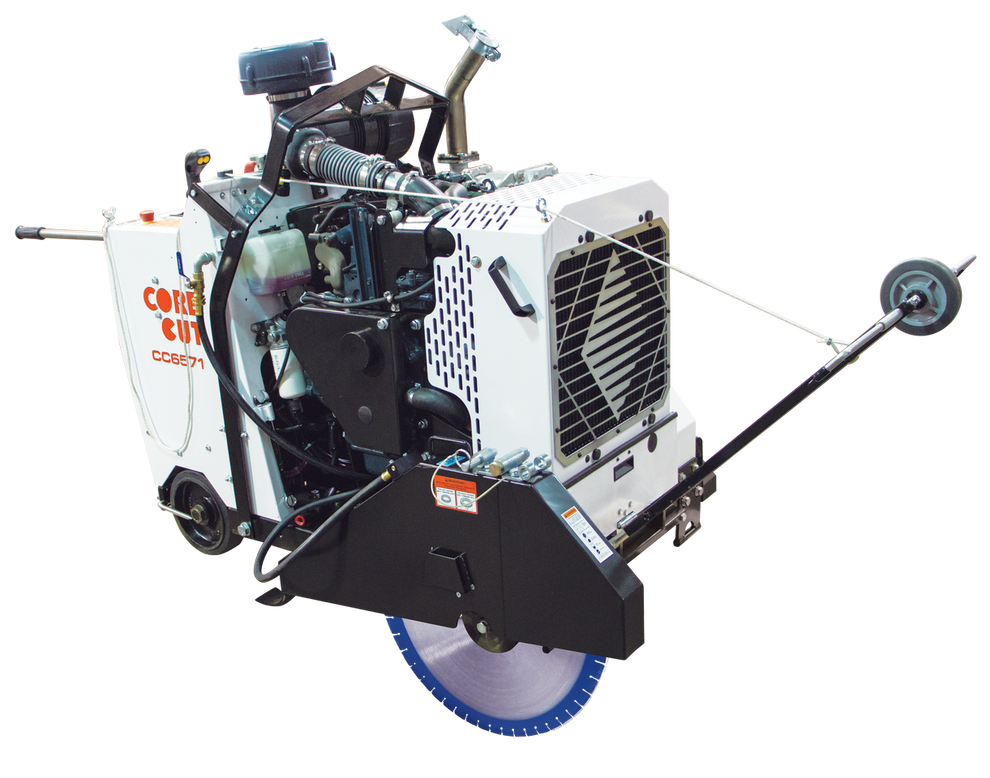

CC6571D Diesel Core Cut Walk Behind Saw
*Blade and Water Tank not included*
| SPECIFICATIONS - CC6571D DIESEL CORE CUT WALK BEHIND SAW |
| BLADE CAPACITY |
14 INCHES TO 42 INCHES |
|
MAXIMUM CUTTING DEPTH
|
14" BLADE - 4 1/2" MAX CUT
20" BLADE - 7 1/2" MAX CUT
26" BLADE - 10 1/2" MAX CUT
30" BLADE - 11 3/4" MAX CUT
36" BLADE - 14 3/4" MAX CUT
42" BLADE - 17 3/4" MAX CUT
|
| ENGINE |
KUBOTA |
| HORSEPOWER |
71HP |
| WEIGHT |
380 TO 460 LBS |
Main Features of CC6571D Diesel Liquid Cooled Walk Behind Saw -
The CC6571D comes with an Advanced Diesel Oxidation Catalyst and a Diesel Particulate Filter (DOC/DPF) that combines with Fully Electronic Controls to Optimize Combustion.
This saw has a Fuel capacity of 9 gallons
Powered by a 2.6L Turbocharged 4-Cylinder Kubota® V2607 Diesel Engine putting out 71.1HP (53 kW).
This Saw is Longer Lasting with a Higher Efficiency Rate since it is Liquid Cooled.
Strongest Frame on the Market.
Low Rear Weight for Easy Maneuvering and Reduced Operator Fatigue.
One-hand sawing control and parking brake.
Fits through a 36” wide door frame (when the guard is removed).
Comes with a Blade Shaft Diameter of 2” and an Arbor size of 1” with drive pin
Has a Blade Shaft Drive turned by 10 belts
The Blade Mounts to the Right or left
The Blade Raises & Lowers by an Electro-hydraulic pump
Air filter: 4 stage
Has a High-Pressure Common Rail Injection and EGR.
Has a Drive speed of 0-200 feet/minute
Minimizes Fuel Consumption and Maximizes Performance in a Compact Package.
