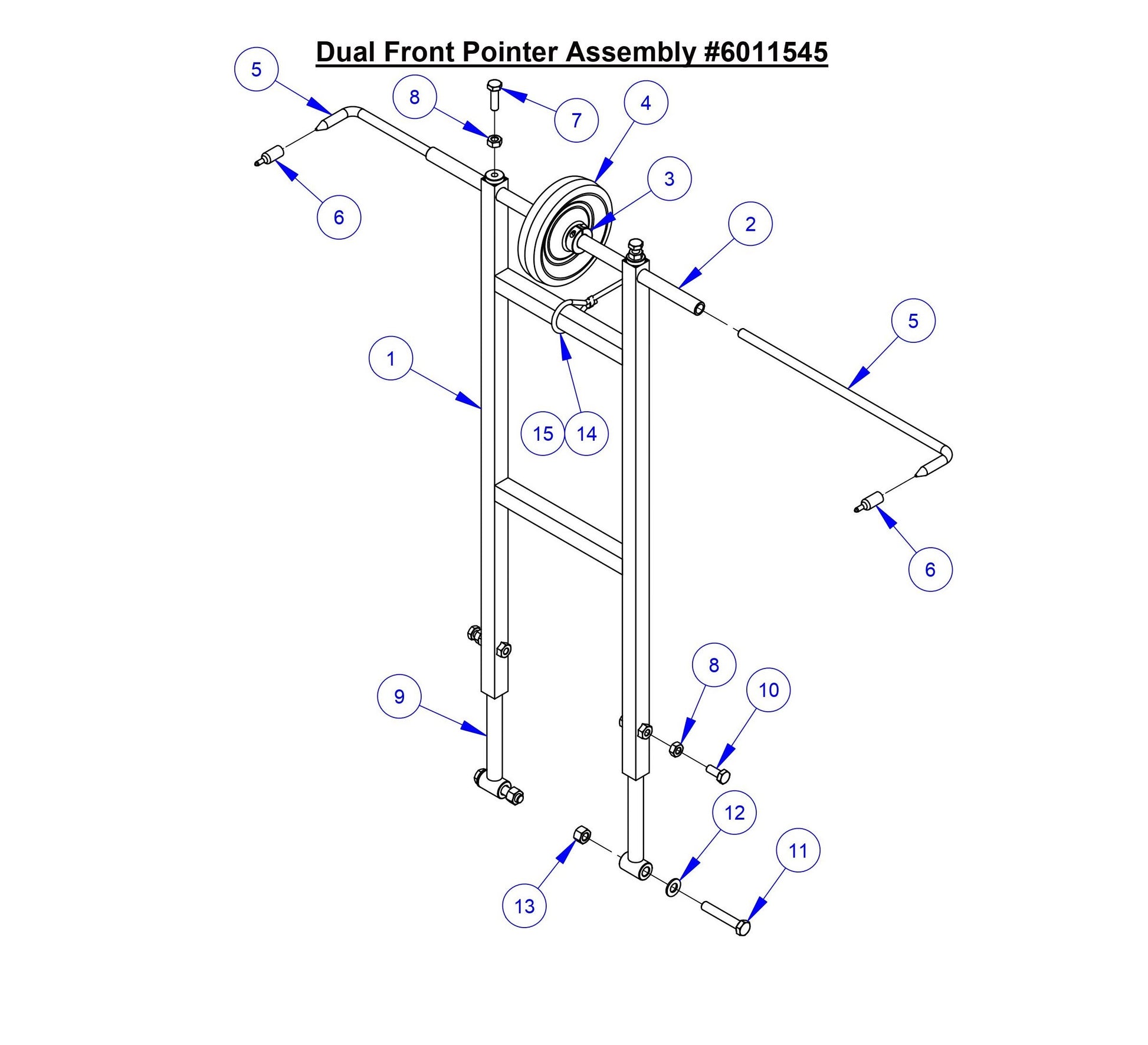

CC7574DD Dual Front Pointer Assembly Parts

CC7574DD Dual Front Pointer Assembly Parts

  • CC7574DD Dual Front Pointer Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
2
6011539 Pointer Tube, 20" for CC3500J Concrete Saw Core Cut by Diamond Products
$40.35
3
2504577 Shaft Collar, 3/4" Split for CC3500J Concrete Saw Core Cut by Diamond Products
$16.14
4
2504581 Wheel, 6" for CC3500J Concrete Saw Core Cut by Diamond Products
$37.00
5
6011536 Front Pointer Rod, 16" for CC6540E CONCRETE SAW Core Cut by Diamond Products
$18.18
7
2900315 Cap Screw Hex Hd., M10-1.5 x 35 for CC1113-XL Concrete Saw Core Cut by Diamond Products
$3.99
9
6011152 Front Pointer Arm for CC3500J Concrete Saw Core Cut by Diamond Products
$37.96
10
2900333 Cap Screw, Hex Hd., M10-1.5 x 25mm for CC190PRO Concrete Saw Core Cut by Diamond Products
$3.99
12
2900239 Friction Washer, 1/2" for CC3500J Concrete Saw Core Cut by Diamond Products
$3.99
14
6017241 Pointer Rope 11 Foot for CC3500J Concrete Saw Core Cut by Diamond Products
$15.00
15
3200221 Pinch Clamp, Two Ear for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
6
2500740 Pointer Cap for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
1
Diamond Products FRONT POINTER FRAME DUAL, METRIC 6011538
$159.39
8
2900325 Hex Nut M10-1.5 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
11
Diamond Products M12 X 70 HEX HD CAPSCREW 2901345
$7.68
13
2900327 Lock Nut, M12-1.75 Nylon Insert for CC190PRO Concrete Saw Core Cut by Diamond Products
$2.99
