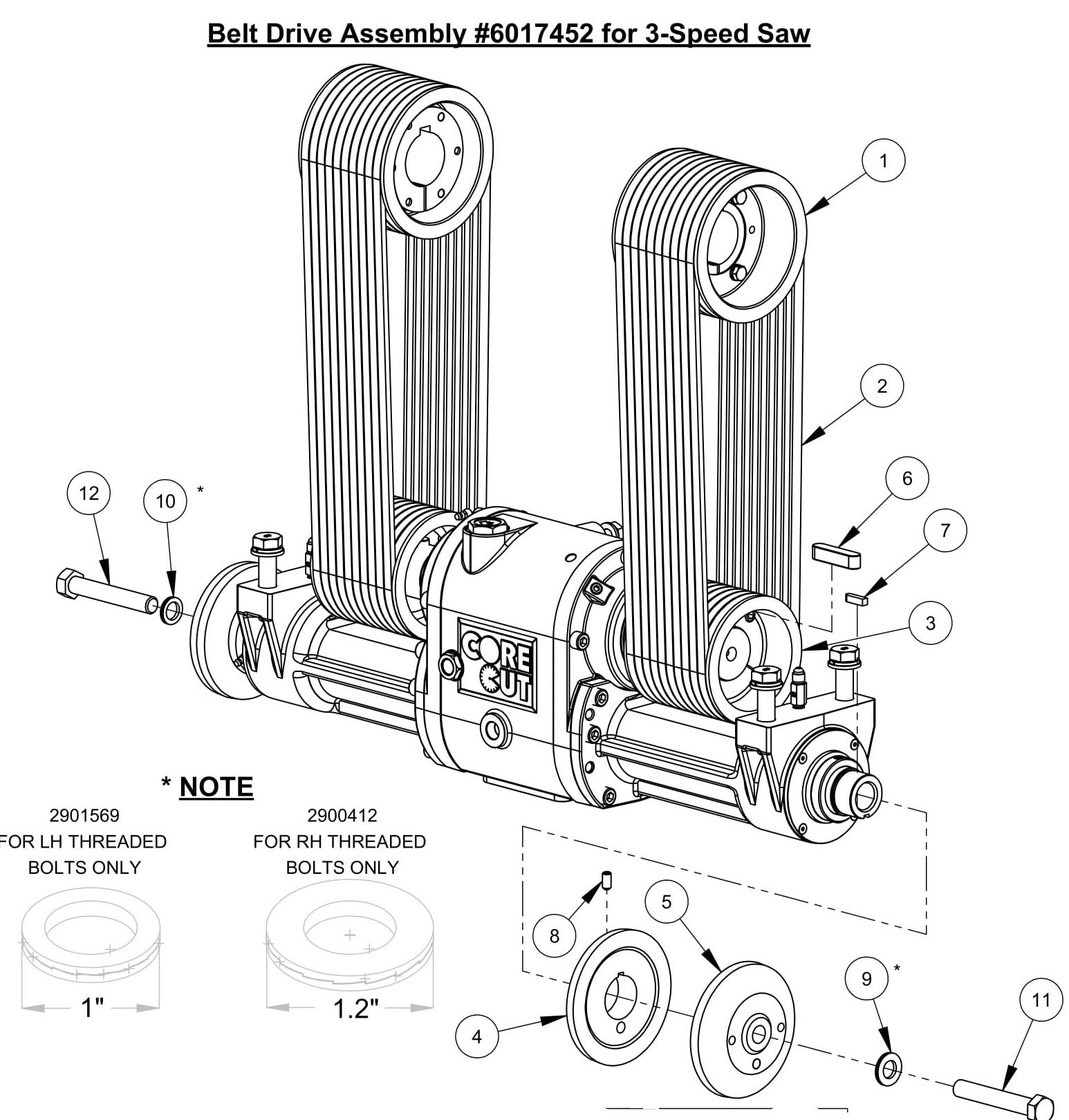

CC7574DK Belt Drive Assembly for 3-Speed Saw (30/26/20 Blade Drive) Parts

CC7574DK Belt Drive Assembly for 3-Speed Saw (30/26/20 Blade Drive) Parts

  • CC7574DK Belt Drive Assembly (30/26/20 BLADE DRIVE )
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
Diamond Products SHEAVE 4.75"-10 GROOVE W/ 2" TAPER LOCK BUSHING AT CENTER OF SHEAVE 6017435
$640.00
1
2503792 Sheave, 4.75" x 10 Groove Taper Style for CC6561-3 Concrete Saw Core Cut by Diamond Products
$428.67
4
6010255 Inner Flange 5" for CC3500J Concrete Saw Core Cut by Diamond Products
$97.00
5
6047907 Outer Flange 5" with Pin for CC3500J Concrete Saw Core Cut by Diamond Products
$143.55
7
6010040 Key, 1/4" Sq. x 15/16" for CC3500J Concrete Saw Core Cut by Diamond Products
$10.00
8
2900418 Set Screw, Soc. Hd., 5/16-18 x 5/8" for CC3500J Concrete Saw Core Cut by Diamond Products
$2.99
9
2900412 Wedge Lock Washer Pair 5/8" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$12.31
10
2901569 Wedge Lock Washer Pair 5/8" LH for CC5555-3 Concrete Saw Core Cut by Diamond Products
$15.10
11
2900146 Cap Screw, Hex Hd., 5/8-11 x 4" for CC3500J Concrete Saw Core Cut by Diamond Products
$15.86
12
2900130 Cap Screw, Hex Hd., 5/8-11 x 4" LH for CC3500J Concrete Saw Core Cut by Diamond Products
$30.88
1
Call for Price call for price call for price
2
Call for Price call for price call for price
6
Call for Price call for price call for price
View full details

Frequently asked questions

How do I use this diagram?

Match the Ref. # on the diagram to the row in the parts list at the right. Click a part name to see details, price, and add it to cart.

How do I make sure a part fits my machine?

Confirm your model/series and serial number range on the product page. Many
manufacturers have serial breaks, when in doubt, share your model and serial with us and we’ll verify fit.

What do the Ref. numbers and quantities mean?

The Ref. # points to the callout on the drawing. Qty shows how many of that item your
machine uses. Parts are sold individually unless noted as a kit.

Are these genuine parts?

Yes, we supply genuine OEM parts for all our brands. If a part has an approved
replacement, we ship the latest superseded revision.

Why does my original part number look different?

Manufacturers often supersede numbers. Our pages list the current orderable number and show older numbers in the description when available. Your old number will cross-reference to the correct part.

I can’t find a part in this diagram, can you still get it?

Yes. Some items are not pictured or are shared with other assemblies. Send us the model, serial, and a description (or photo) and we’ll locate it.

Is there a warranty on these parts?

Yes. DanseUSA passes the manufacturer’s warranty to you. Coverage applies to defects in materials and workmanship under normal use for 30 days from the purchase date, in line with the manufacturer’s warranty policy. Terms can vary by brand; the product page reflects
the applicable policy. If a claim is needed, we’ll help coordinate with the manufacturer.
