CC7574DK Diesel Core Cut Walk Behind Saw by Core Cut Diamond Products
*Blade and Water Tank not included*
| SPECIFICATIONS - CC7574DD Diesel Walk Behind Saw by Core Cut |
| BLADE CAPACITY |
20 INCHES TO 48 INCHES |
|
MAXIMUM CUTTING DEPTH
|
14" BLADE - 4 1/2" MAX CUT
20" BLADE - 7 1/2" MAX CUT
26" BLADE - 10 1/2" MAX CUT
30" BLADE - 11 3/4" MAX CUT
36" BLADE - 14 3/4" MAX CUT
42" BLADE - 17 3/4" MAX CUT
48" BLADE - 19 3/8" MAX CUT
|
| ENGINE |
DEUTZ TURBO DIESEL |
| HORSEPOWER |
74.3 HP |
| WEIGHT |
380 TO 460 LBS |

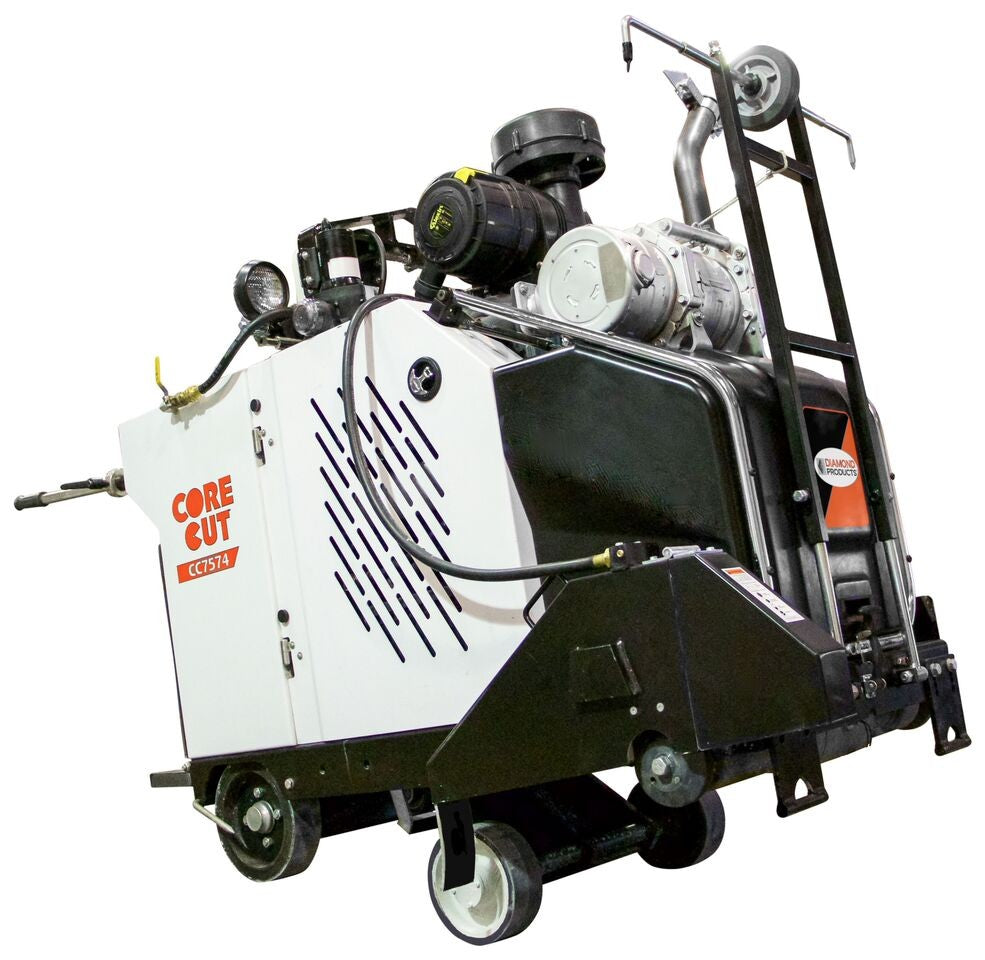

CC7574DK Diesel Core Cut Walk Behind Saw
Main Features -
The CC7574DK Saw comes with a Tier 4 Final Kubota® diesel engine that is putting out 74.5HP at 2,600 RPM and 70HP at the blade shaft.
Has a Self-propelled Eaton Model 10 transmission
Available with the enhanced clutch assembly that allows the blade to be disengaged while the engine is running (single speed only)
Strongest frame on the market
This saw comes with a Hydraulic wheel motor drive
Blade shaft gearbox-oil bath for low maintenance
High-pressure common-rail electronic fuel injection.
Modern computer interface engine controls
Capable of a 20”-48” Blade Capacity
EPA Tier 4 Compliant
Blade shaft diameter is 2”
Arbor Size is 1” with a Drive Pin
Has a Blade Shaft Drive turned by 20 V-belts and 4-Powerbands
This saw has a Fuel capacity of 9 gallons
4 stage Air Filter System with Restriction Indicator
Transmission Hydro pump powering dual wheel motors
