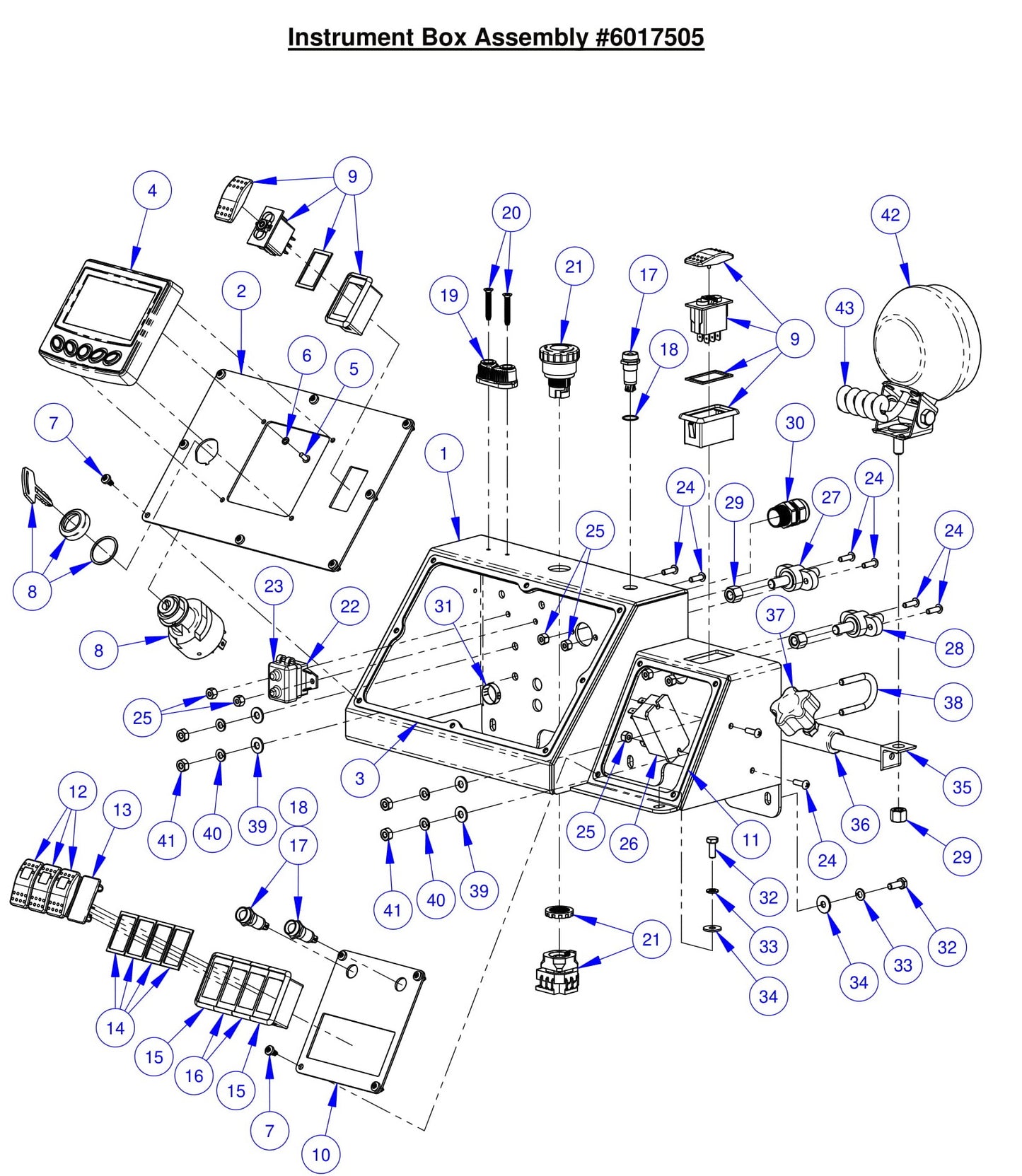

CC7574DK Instrument Box Assembly Parts

CC7574DK Instrument Box Assembly Parts

Skip to product information
1 of 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
3
Diamond Products INSTRUMENT PANEL GASKET FOR CC7574 6017526
$24.77
4
2801040 Murphy Display for CC6561 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
5
2900114 Machine Screw Rd. Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
6
2900677 Lock Washer #8 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
7
2900021 Machine Screw, Pan Hd., #10-24 x 3/8" for CG-1 MINI-GROOVER Core Cut by Diamond Products
$1.99
8
2705001 Ignition Switch & Keys for CC5555-3 Concrete Saw Core Cut by Diamond Products
$157.41
8
2705000 Ignition Keys Only (Pair) for CC5555-3 Concrete Saw Core Cut by Diamond Products
$32.00
9
6019158 Rocker Switch Assembly for CC5555-3 Concrete Saw Core Cut by Diamond Products
$51.55
9
2800259 Rocker Switch Actuator for CC5555-3 Concrete Saw Core Cut by Diamond Products
$10.64
9
2800260 Rocker Mount Panel for CC5555-3 Concrete Saw Core Cut by Diamond Products
$9.94
12
2800808 Rocker Switch for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$71.99
13
2800262 Rocker Mount Panel Plug for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$9.59
9
2800261 Rocker Panel Gasket for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.31
14
2800261 Rocker Panel Gasket for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.31
15
2800615 Rocker Mount End Panel for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$9.59
16
2800616 Rocker Mount Middle Panel for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$9.59
19
2501427 Rope Cleat for CC5555-3 Concrete Saw Core Cut by Diamond Products
$100.02
20
2900483 Tap Screw Flat Hd. #10-24 x 1-1/4" Flat Hd. for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
21
2801367 E-Stop Switch for CC5555-3 Concrete Saw Core Cut by Diamond Products
$81.10
22
2801276 Circuit Breaker 50 Amp for CC5555-3 Concrete Saw Core Cut by Diamond Products
$10.92
24
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CB15E-XL Hydraulic Power Unit Core Cut by Diamond Products
$2.99
25
2900017 Lock Nut #10-24 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
29
2900018 Lock Nut 3/8-16 Nylon for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
30
2800623 Cord Grip, 1/2" NPT Nylon for CC3500J Concrete Saw Core Cut by Diamond Products
$23.67
31
2503746 Plug, 13/16" Hole for CC3500J Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
32
2900341 Cap Screw, Hex Hd., M6-1.0 x 16mm for CC3538JK (EFI) Concrete Saw Core Cut by Diamond Products
$2.99
33
2900765 Lock Washer M6 Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
34
2901359 Fender Washer, M6 for CC6561 Concrete Saw Core Cut by Diamond Products
$2.99
35
6010106 Light bar for CC5555-3 Concrete Saw Core Cut by Diamond Products
$47.53
37
2400157 Hand Lock Knob 5/16-18 x 1" for CC5555-3 Concrete Saw Core Cut by Diamond Products
$26.80
38
2900241 U-Bolt, 1/2" Pipe for CC3500J Concrete Saw Core Cut by Diamond Products
$4.99
39
2900009 Flat Washer 1/4" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
40
2900024 Lock Washer 1/4" Split for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
41
2900125 1/4-20 Hex Nut for CG-2 Diesel Mini Groover Core Cut by Diamond Products
$2.99
42
2500194 Spot Light, 12 Volt for CC3500J Concrete Saw Core Cut by Diamond Products
$57.00
43
6017086 Coiled Light Cord (1 Foot) for CC3500J Concrete Saw Core Cut by Diamond Products
$55.95
9
2800258 Rocker Switch Body for CC5555-3 Concrete Saw Core Cut by Diamond Products
$36.83
11
Diamond Products SWITCH PANEL GASKET FOR CC7574 SAW 6017527
$14.83
17
Diamond Products INDICATOR LIGHT (RED) LED 2800915
$31.21
18
Diamond Products O-RING 12MM ID X 1MM WIDE 2503982
$2.99
23
2800364 Circuit Breaker Boot for CC5555-3 Concrete Saw Core Cut by Diamond Products
$6.99
26
Diamond Products RELAY, 30 AMP, 12V, DPST 2801262
$76.42
27
Diamond Products POWER STUD BLOCK (RED) FEED THROUGH, 3/8-16 2800627
$55.18
28
Diamond Products GROUND STUD BLOCK (BLACK) FEED THROUGH, 3/8-16 2800626
$49.50
36
Diamond Products LIGHT MOUNT TUBE 22" LONG 6017049
$64.41
1
Call for Price call for price call for price
2
Call for Price call for price call for price
10
Call for Price call for price call for price
View full details
