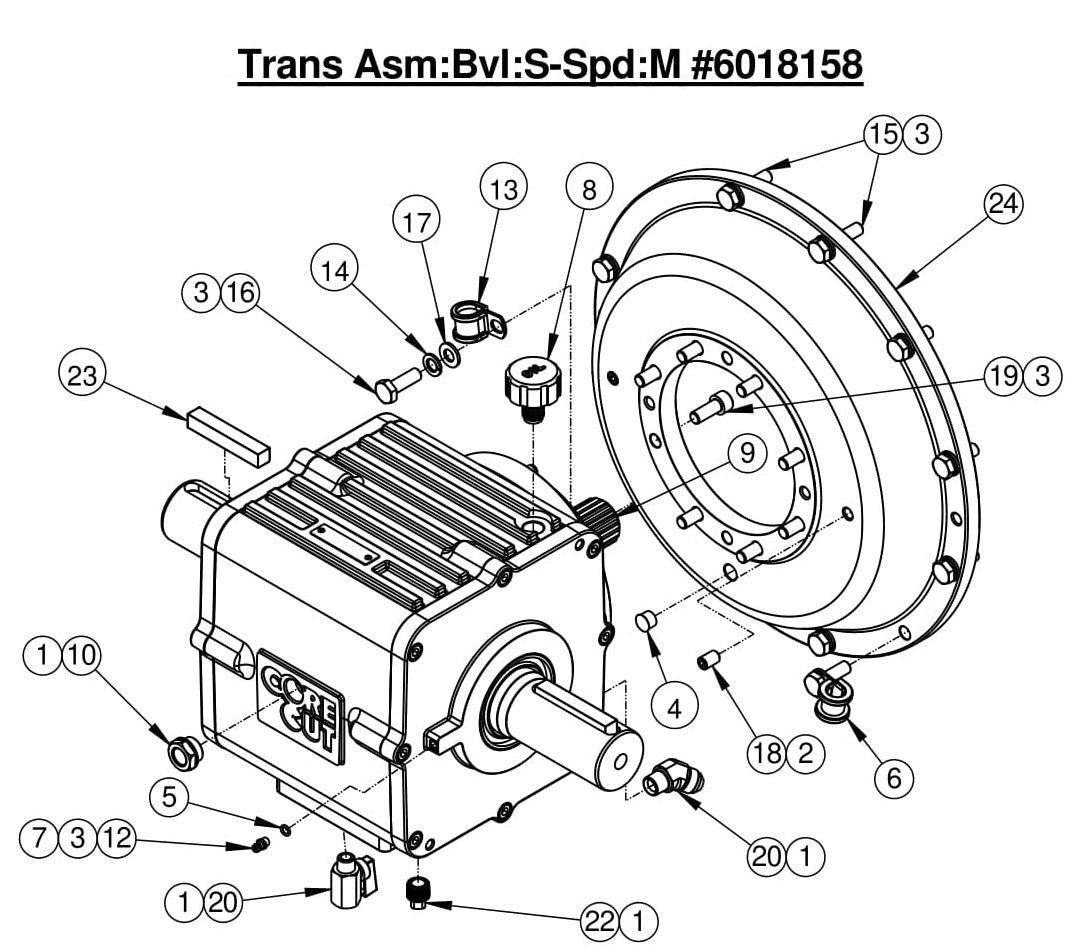

CC7574DK Trans Asm:Bvl:S-Spd:M Parts

CC7574DK Trans Asm:Bvl:S-Spd:M Parts

  • CC7574DK Trans Asm:Bvl:S-Spd:M
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2401311 Loctite #567 Thread Sealant for CC5555-3 Concrete Saw Core Cut by Diamond Products
$290.40
2
2401315 Loctite #242 Blue for CC5555-3 Concrete Saw Core Cut by Diamond Products
$92.06
3
2401316 Loctite #262 Red for CC5555-3 Concrete Saw Core Cut by Diamond Products
$1,212.00
4
2500204 Plug 1/2" Hole for CC5555-3 Concrete Saw Core Cut by Diamond Products
$2.99
5
2500939 O-Ring AS568A - 010 for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
6
2501434 Hose Clamp 5/8" x 3/4" Wide for CC5555-3 Concrete Saw Core Cut by Diamond Products
$4.99
7
2502046 Grease Fuchs Synthetic for CC5555-3 Concrete Saw Core Cut by Diamond Products
$104.38
8
Diamond Products FILLER BREATHER CAP 3/8"NPT THREAD 2503720
$30.65
10
2503872 Sight Glass, Oil Level for CC6561 Concrete Saw Core Cut by Diamond Products
$46.15
11
2503930 Gear Oil, 75W90 Synthetic for CC6561-3 Concrete Saw Core Cut by Diamond Products
$50.89
12
Diamond Products 1/4-28X1/2 GREASE FITTING 2703023
$3.99
14
2900321 Lock Washer, M10 Split for CC1113-XL Concrete Saw Core Cut by Diamond Products
$2.99
15
2900799 Cap Screw, Hex Hd., M10-1.25 x 40mm for CC500MXL2 Masonry Saw Core Cut by Diamond Products
$3.99
17
2901356 Flat Washer, M10 for CC1200XL Concrete Saw Core Cut by Diamond Products
$2.99
18
Diamond Products M10-1.25 X 16 SOC SETSCRE 2901500
$13.99
19
Diamond Products M10 X 25 SOC HD. CAPSCREW 2903166
$6.99
20
3200108 Ball Valve, 1/4" NPT for CC190PRO Concrete Saw Core Cut by Diamond Products
$38.47
20
Diamond Products 1/2"M.JIC TO 3/8"M.PIPE ELBOW 45 DEGREE 3201889
$12.91
22
Diamond Products 3/8" MAGNETIC PIPE PLUG (SQUARE HEAD) 3201999
$19.37
23
Diamond Products KEY:1/2 SQ X 3" 6011561
$13.64
24
Diamond Products BEVEL GEAR BOX FLANGE 6018170
$468.27
9
Call for Price call for price call for price
13
Call for Price call for price call for price
16
Call for Price call for price call for price
View full details
