CC7874XL 20" Blade Guard Assembly Parts

CC7874XL 20" Blade Guard Assembly Parts

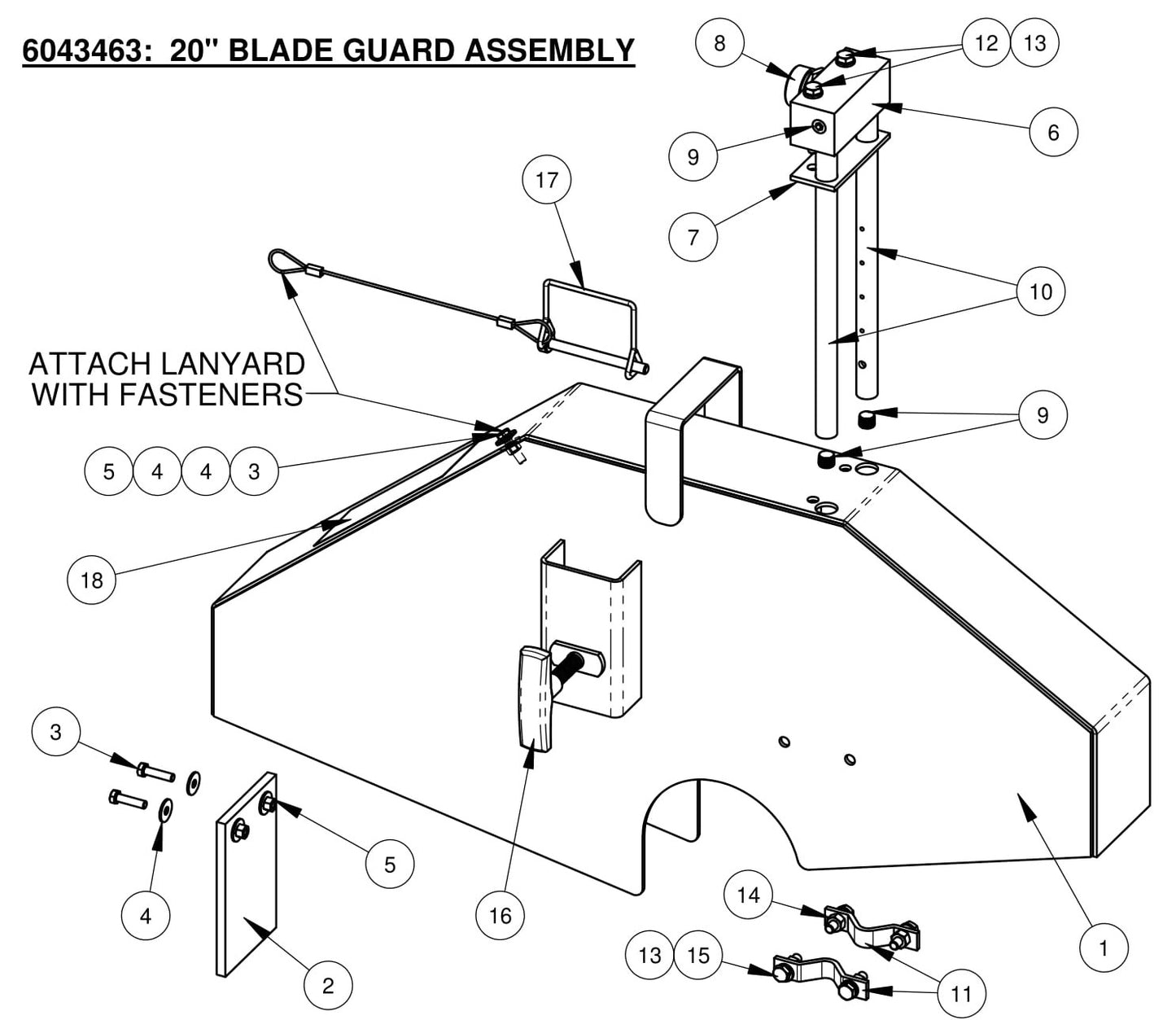

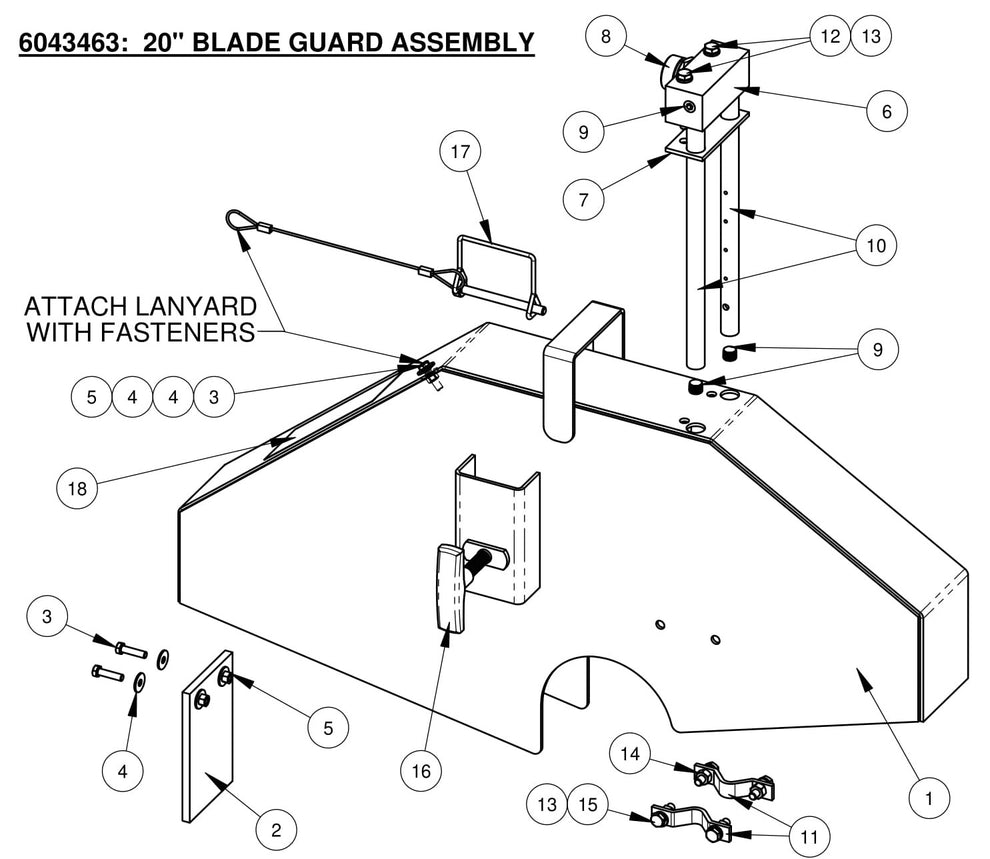

  • CC7874XL 20" Blade Guard Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6047214 20" Blade Guard Weldment for CC7874XL Concrete Saw Core Cut by Diamond Products
$380.16
2
6048039 Splash Flap for CC7874XL Concrete Saw Core Cut by Diamond Products
$8.57
3
2900309 Cap Screw, Hex Hd., M5-0.8 x 20mm for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
4
2900770 Fender Washer, M5 for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
5
2900301 Lock Nut, M5-0.8 Nylon Insert for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
6
6048123 Water Manifold for CC7874XL Concrete Saw Core Cut by Diamond Products
$27.11
7
2500829 Water Manifold Gasket for CC7874XL Concrete Saw Core Cut by Diamond Products
$6.99
8
3200002 Fitting, 3/8" M. Pipe to 3/4" M. Garden for CC7874XL Concrete Saw Core Cut by Diamond Products
$22.32
9
3200001 Plug, 1/8" NPT for CC7874XL Concrete Saw Core Cut by Diamond Products
$4.99
10
6010085 Water Tube for 20" Guard for CC7874XL Concrete Saw Core Cut by Diamond Products
$33.01
11
6048155 Water Tube Clamp for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
12
2900244 Cap Screw, Hex Hd., M6-1.0 x 45mm for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
13
2901494 Flat Washer, M6 for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
14
2900302 Lock Nut, M6-1.0 Nylon Insert for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
15
2900310 Cap Screw, Hex Hd., M6-1.0 x 20mm for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
16
2400199 Locking Knob 3/8 Stud for CC7874XL Concrete Saw Core Cut by Diamond Products
$24.75
17
6011344 Lockpin, 1/4 x 2-1/2" W/8" Lanyard for CC7874XL Concrete Saw Core Cut by Diamond Products
$25.46
18
1800001 Warning Label for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
View full details
