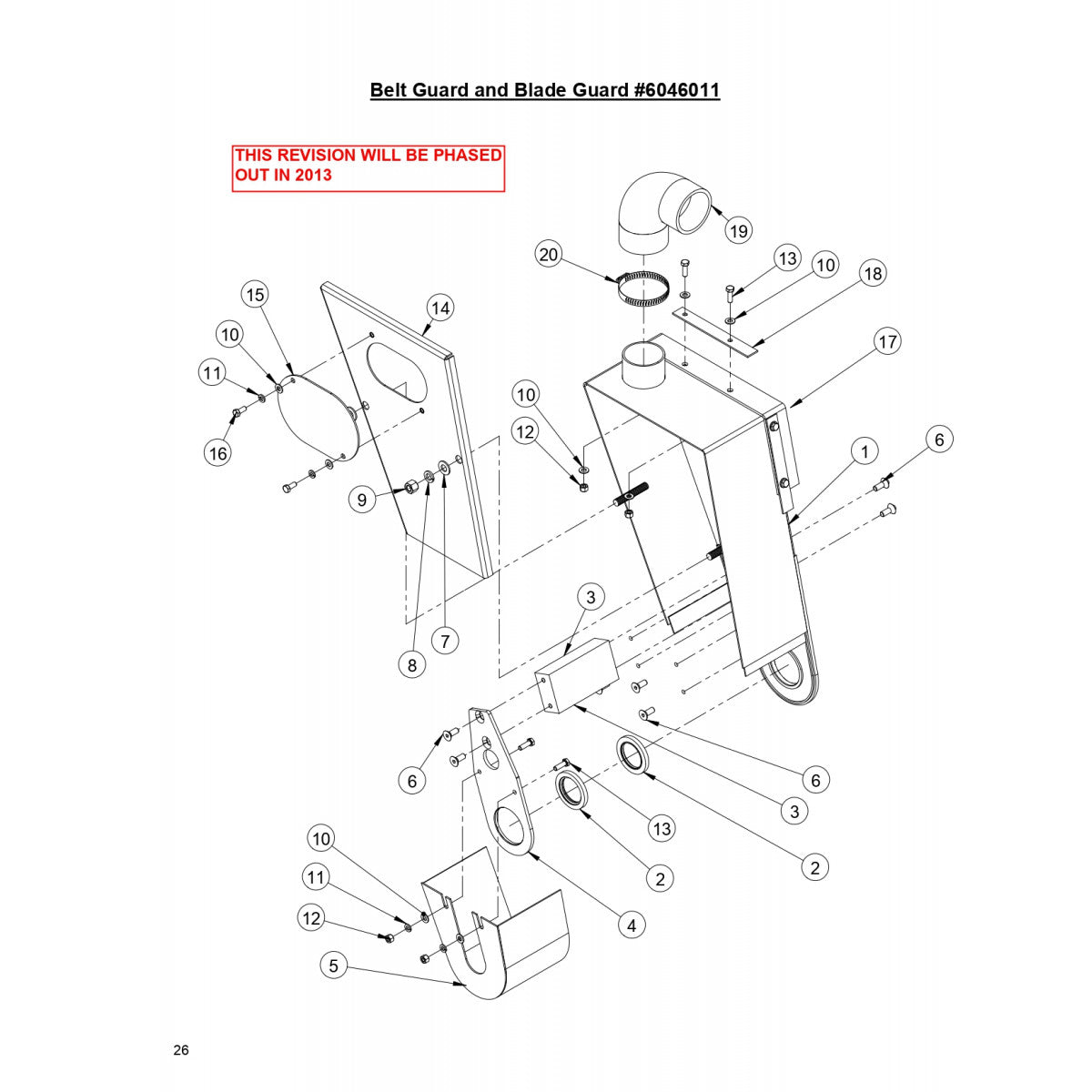

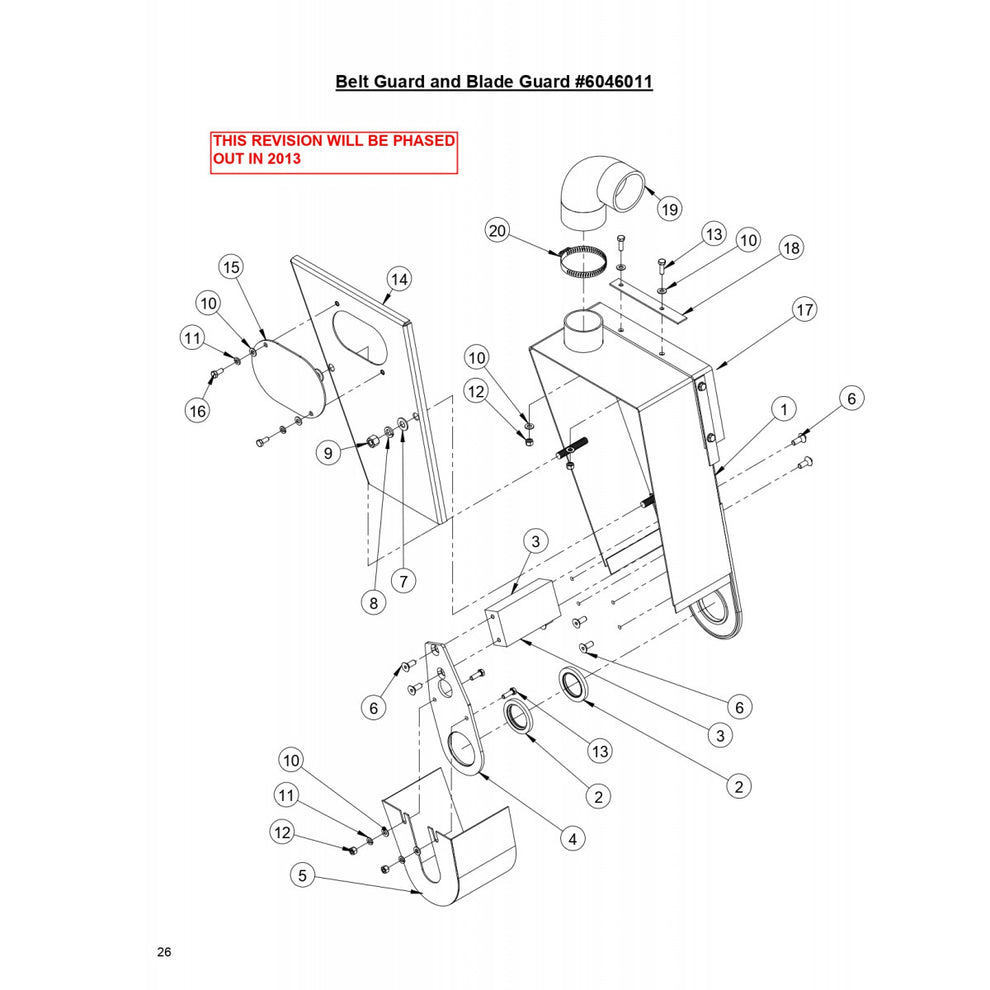

CC7874XL Belt Guard And Blade Guard Assembly Parts

CC7874XL Belt Guard And Blade Guard Assembly Parts

  • CC7874XL Belt Guard And Blade Guard Assembly Parts
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6043253 Belt Guard Weldment for CC7874XL Concrete Saw Core Cut by Diamond Products
$789.03
2
2503702 Oil Seal for CC7874XL Concrete Saw Core Cut by Diamond Products
$55.24
3
6043366 Spacer Bar for CC7874XL Concrete Saw Core Cut by Diamond Products
$38.25
4
6043367 Outer Seal Plate for CC7874XL Concrete Saw Core Cut by Diamond Products
$227.70
5
6043254 Lower Beltguard for CC7874XL Concrete Saw Core Cut by Diamond Products
$402.93
6
2900235 Cap Screw, Flat Hd., 3/8-16 x 1" for CC7874XL Concrete Saw Core Cut by Diamond Products
$4.99
7
2900058 Flat Washer, 1/2" SAE for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
8
2900084 Lock Washer, 1/2" Split for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
9
2900026 Lock Nut, 1/2-13 Nylon for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
10
2900022 Flat Washer, 5/16" SAE for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
11
2900031 Lock Washer, 5/16" Split for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
12
2900039 Lock Nut, 5/16-18 Nylon for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
13
2900138 Cap Screw, Hex Hd., 5/16-18 x 1" for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
14
6046019 Beltguard Cover Assembly for CC7874XL Concrete Saw Core Cut by Diamond Products
$143.55
15
6045116 PTO Cover Plate for CC7874XL Concrete Saw Core Cut by Diamond Products
$20.87
16
2900019 Cap Screw, Hex Hd., 5/16-18 x 3/4" for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
17
6045181 Belt Guard Flap for CC7874XL Concrete Saw Core Cut by Diamond Products
$31.26
18
6043241 Slurry Flap Retainer for CC7874XL Concrete Saw Core Cut by Diamond Products
$7.90
19
2500669 Hose Elbow, 3" I.D. for CC7874XL Concrete Saw Core Cut by Diamond Products
$48.30
20
3200197 Hose Clamp #52 for CC7874XL Concrete Saw Core Cut by Diamond Products
$8.57
