CC7874XL Blade Shaft Assembly Parts

CC7874XL Blade Shaft Assembly Parts

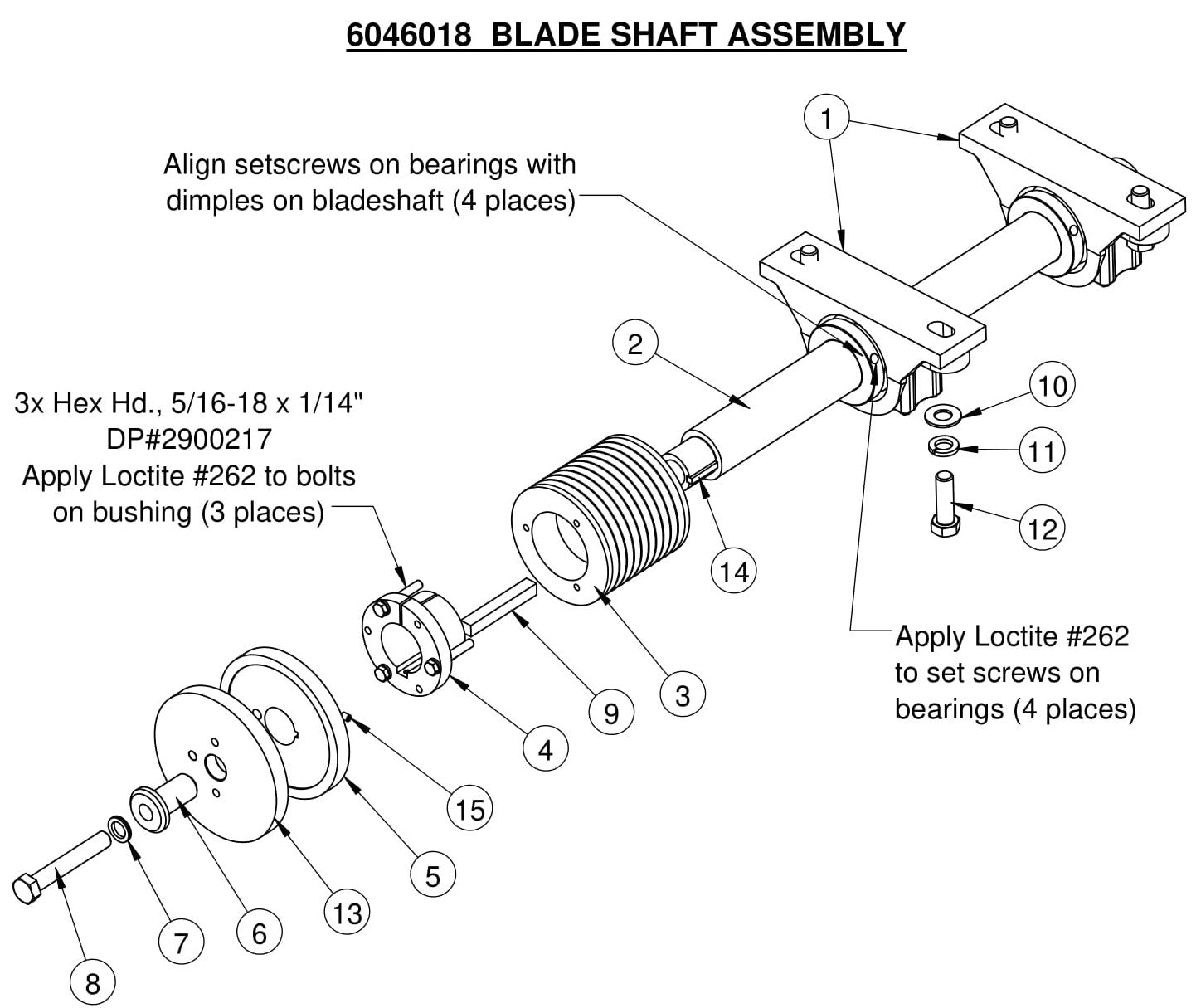

  • CC7874XL Blade Shaft Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2501520 Bearing, 2" Pillow Block for CC7874XL Concrete Saw Core Cut by Diamond Products
$1,467.18
2
6043286 ARBOR SHAFT 2" for CC7874XL Concrete Saw Core Cut by Diamond Products
$1,008.81
3
2501647 Sheave 3V-4.75, 10 Groove QD Style for CC7874XL Concrete Saw Core Cut by Diamond Products
$472.23
4
2500153 QD Bushing, SK x 2" w/Fasteners for CC7874XL Concrete Saw Core Cut by Diamond Products
$121.20
5
6043259 Inside Collar for CC7874XL Concrete Saw Core Cut by Diamond Products
$86.06
6
6040252 Stub Shaft for CC7874XL Concrete Saw Core Cut by Diamond Products
$11.52
7
2900412 Lock Washer, Wedge 5/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$12.31
8
2900146 Cap Screw, Hex Hd., 5/8-11 x 4" for CC7874XL Concrete Saw Core Cut by Diamond Products
$15.86
9
2501537 Key B17.1 0.5x0.5x3.5 for CC7874XL Concrete Saw Core Cut by Diamond Products
$8.77
10
2900002 Flat Washer, 5/8" SAE for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
11
2900113 Lock Washer, 5/8" Split for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
12
2900136 Cap Screw, Hex Hd., 5/8-11 x 2" for CC7874XL Concrete Saw Core Cut by Diamond Products
$6.70
13
6049033 Outer Flange Assy CC7878 for CC7874XL Concrete Saw Core Cut by Diamond Products
$39.24
14
2501538 Square Key, 1/4 X 1-3/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
15
2900101 Set Screw, Soc. Hd., 1/4-20 x 3/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
View full details
