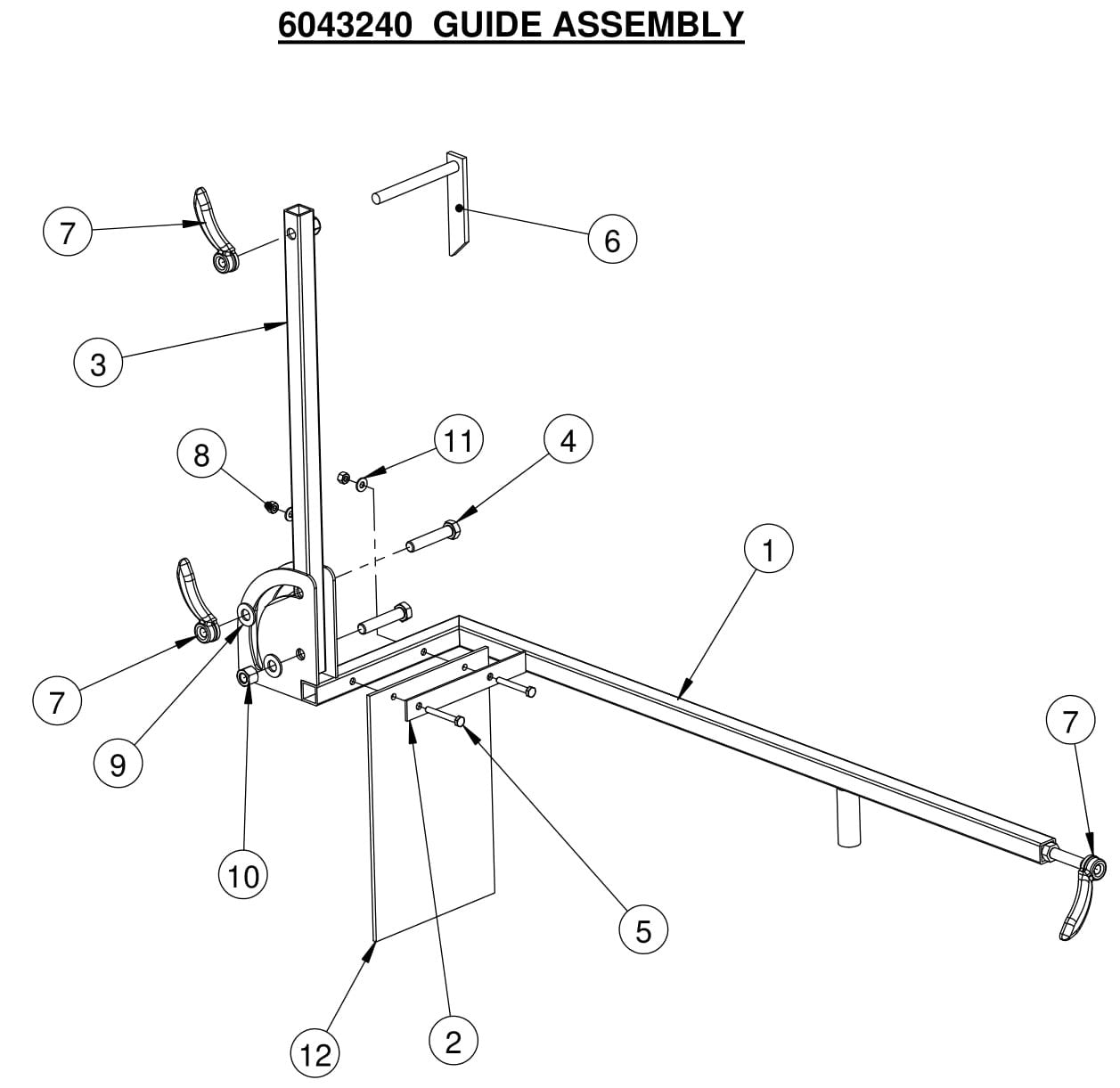

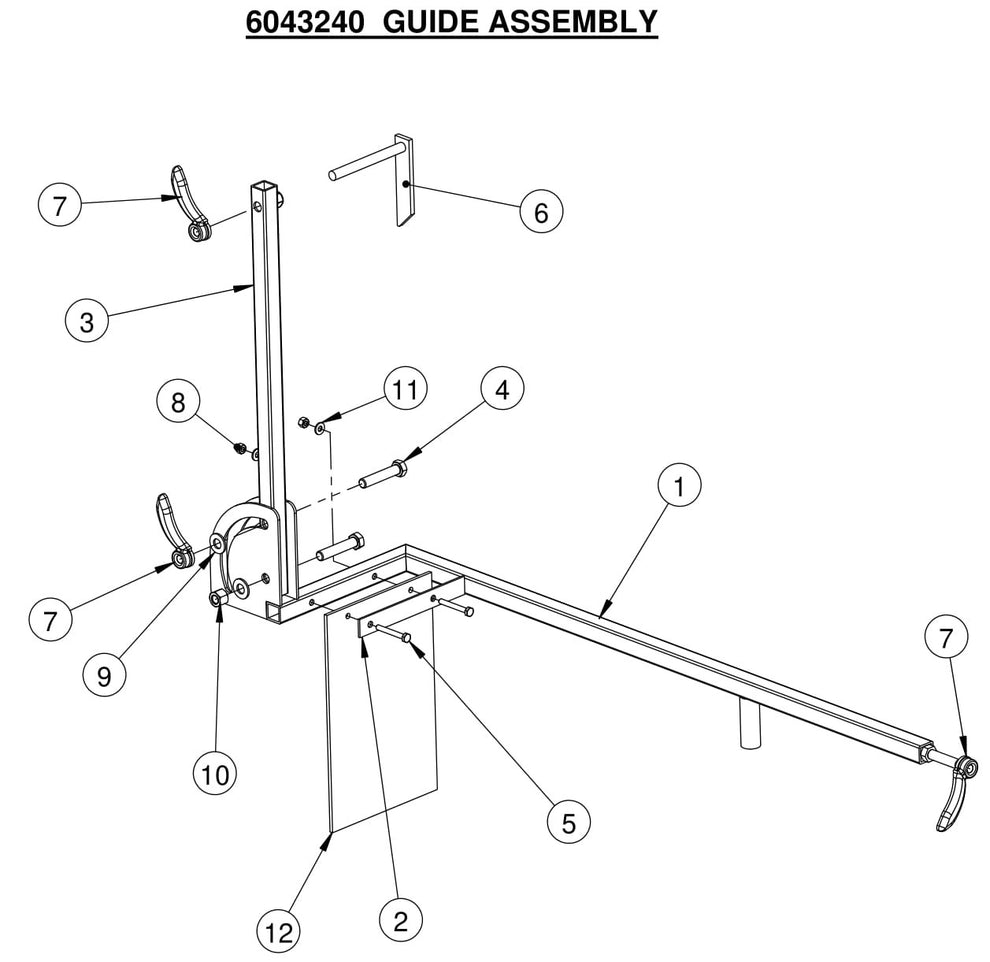

CC7874XL Guide Assembly Parts

CC7874XL Guide Assembly Parts

  • CC7874XL Guide Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6043239 Guide Assembly for CC7874XL Concrete Saw Core Cut by Diamond Products
$276.21
2
6043241 Slurry Flap Retainer for CC7874XL Concrete Saw Core Cut by Diamond Products
$7.90
3
6043238 Indicator Arm Weldment for CC7874XL Concrete Saw Core Cut by Diamond Products
$71.34
4
2900811 Cap Screw, Hex Hd., 1/2-13 x 2-1/2" for CC7874XL Concrete Saw Core Cut by Diamond Products
$4.99
5
2900294 Cap Screw, Hex Hd., 1/4-20 x 2" for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
6
6043429 Rear Line Pointer for CC7874XL Concrete Saw Core Cut by Diamond Products
$56.52
7
2501505 1/2" Handle Nut for CC7874XL Concrete Saw Core Cut by Diamond Products
$24.75
8
2900010 Lock Nut, 1/4-20 Nylon for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
9
2900058 Flat Washer 1/2" SAE for CC5555-3 Concrete Saw Core Cut by Diamond Products
$3.99
10
2900026 Lock Nut, 1/2-13 Nylon for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
11
2900009 Flat Washer, 1/4" SAE for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
12
6043242 Slurry Flap for CC7874XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
View full details
