CC7874XL Instrument Panel Assembly Parts

CC7874XL Instrument Panel Assembly Parts

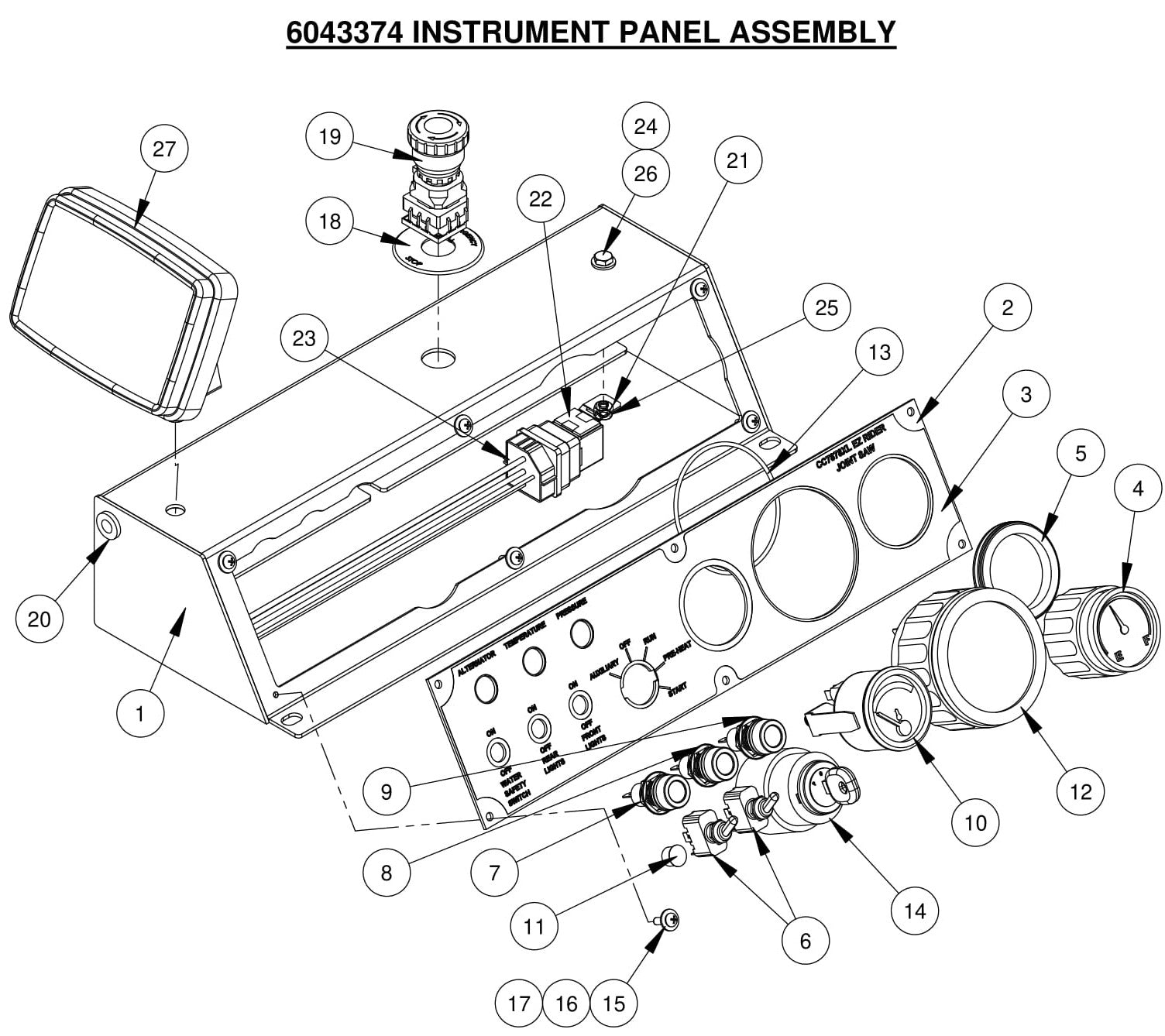

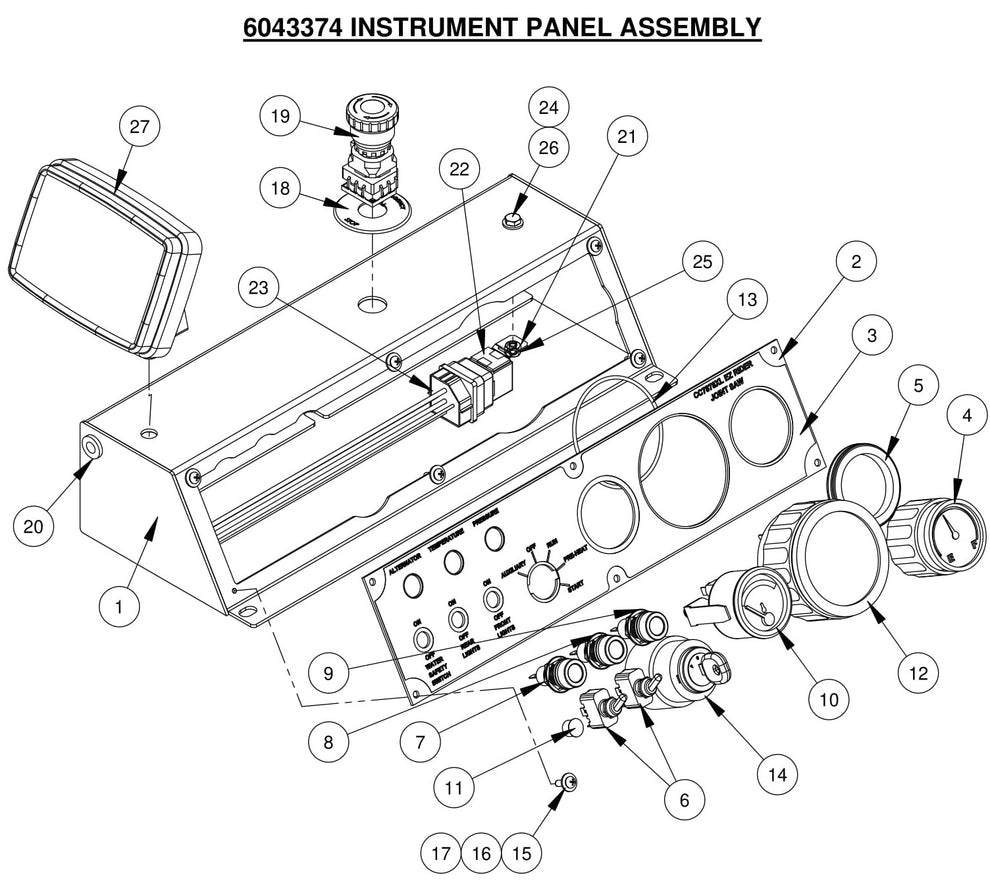

  • CC7874XL Instrument Panel Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6043376 Console Lid Weldment for CC7874XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
2
6046035 Gauge Panel for CC7874XL Concrete Saw Core Cut by Diamond Products
$120.78
3
1801385 Console Label for CC7874XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
4
2800458 Fuel Gage for CC7874XL Concrete Saw Core Cut by Diamond Products
$196.02
5
2504452 Grommett 2" for CC7874XL Concrete Saw Core Cut by Diamond Products
$8.00
6
2800470 Toggle Switch for CC7874XL Concrete Saw Core Cut by Diamond Products
$16.14
7
2700785 Alternator Light -Orange for CC7874XL Concrete Saw Core Cut by Diamond Products
$99.00
8
2700787 Oil Temperature Light - Red for CC7874XL Concrete Saw Core Cut by Diamond Products
$67.79
9
2700786 Oil Pressure Light -Green for CC7874XL Concrete Saw Core Cut by Diamond Products
$58.22
10
2703192 Temperature Gauge, Pricol for CC7874XL Concrete Saw Core Cut by Diamond Products
$566.28
11
2500204 Plug, 1/2" Hole for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
12
6011504 Tach/Hour Meter (VDO) Calibrated 17 for CC7874XL Concrete Saw Core Cut by Diamond Products
$593.01
13
2400628 O-Ring #152 for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
14
2703194 Ignition Switch & Key for CC7874XL Concrete Saw Core Cut by Diamond Products
$417.78
15
2900016 Flat Washer, #10 USS for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
16
2900038 Lock Washer, #10 Split for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
17
2900159 Machine Screw, Rd. Hd., #10-24 x 5/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
18
2801376 E-Stop Nameplate for CC7874XL Concrete Saw Core Cut by Diamond Products
$11.02
20
2503711 Grommet, 3/8" I.D. for CC7874XL Concrete Saw Core Cut by Diamond Products
$6.99
21
2801427 Bracket, Mounting Relay for CC7874XL Concrete Saw Core Cut by Diamond Products
$6.99
22
2801428 Relay, 20-40 Amps for CC7874XL Concrete Saw Core Cut by Diamond Products
$24.00
23
2801429 Connector, Sealed, 5 Wire for CC7874XL Concrete Saw Core Cut by Diamond Products
$48.16
24
2900009 Flat Washer, 1/4" SAE for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
25
2900010 Lock Nut, 1/4-20 Nylon for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
26
2900023 Cap Screw, Hex Hd., 1/4-20 x 5/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
27
2501517 Dual Beam Light for CC7874XL Concrete Saw Core Cut by Diamond Products
$234.63
19
2801367 E-Stop Switch for CC7874XL Concrete Saw Core Cut by Diamond Products
$81.10
