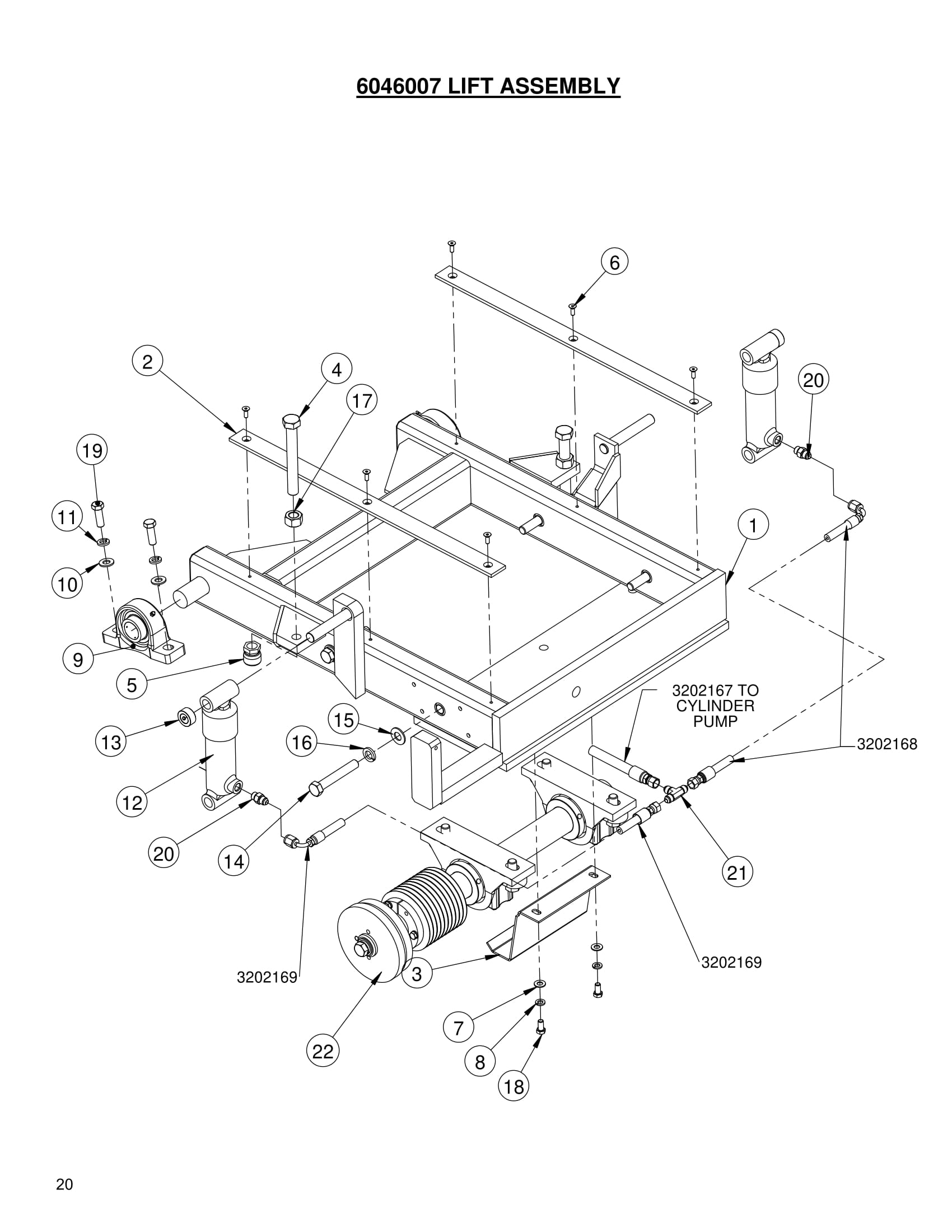

CC7874XL Lift Assembly Parts

CC7874XL Lift Assembly Parts

  • CC7874XL Lift Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6043247 Frame Lift Weldment for CC7874XL Concrete Saw Core Cut by Diamond Products
$620.40
2
6043249 Top Motor Slide for CC7874XL Concrete Saw Core Cut by Diamond Products
$154.44
3
6043250 Arbor Shield Plate for CC7874XL Concrete Saw Core Cut by Diamond Products
$62.95
4
2900480 Tap Bolt, Hex Hd., 3/4-10 x 6" for CC7874XL Concrete Saw Core Cut by Diamond Products
$15.07
5
2900476 Swivel Pad Nut, 3/4-10 for CC7874XL Concrete Saw Core Cut by Diamond Products
$40.89
6
2900020 Cap Screw, Flat Hd., 1/4-20 x 3/4" for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
7
2900014 Flat Washer, 3/8" SAE for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
8
2900006 Lock Washer, 3/8" Split for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
9
2501531 Pillow Block Bearing, 1-3/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$142.80
10
2900058 Flat Washer, 1/2" SAE for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
11
2900084 Lock Washer, 1/2" Split for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
12
2501541 Hydraulic Cylinder, 1-3/4" x 5" for CC7874XL Concrete Saw Core Cut by Diamond Products
$690.03
13
2400615 Set Collar, 3/4" for CC7874XL Concrete Saw Core Cut by Diamond Products
$8.56
14
2900146 Cap Screw, Hex Hd., 5/8-11 x 4" for CC7874XL Concrete Saw Core Cut by Diamond Products
$15.86
15
2900002 Flat Washer, 5/8" SAE for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
16
2900113 Lock Washer, 5/8" Split for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
17
2900041 Hex Nut, 3/4-10 for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
18
2900196 Cap Screw, Hex Hd., 3/8-16 x 3/4" for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
19
2900499 Cap Screw, Hex Hd., 1/2-13 x 1-1/2" for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
20
3200263 Adapter, 3/8" O-Ring to 3/8" M. JIC for CC7874XL Concrete Saw Core Cut by Diamond Products
$6.99
21
3200268 3/8" Male JIC Union Tee for CC7874XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
22
6046018 Blade Shaft Assy CC7878 for CC7874XL Concrete Saw Core Cut by Diamond Products
$4,424.31
View full details
