CC7874XL Mainfold Block Assembly Parts

CC7874XL Mainfold Block Assembly Parts

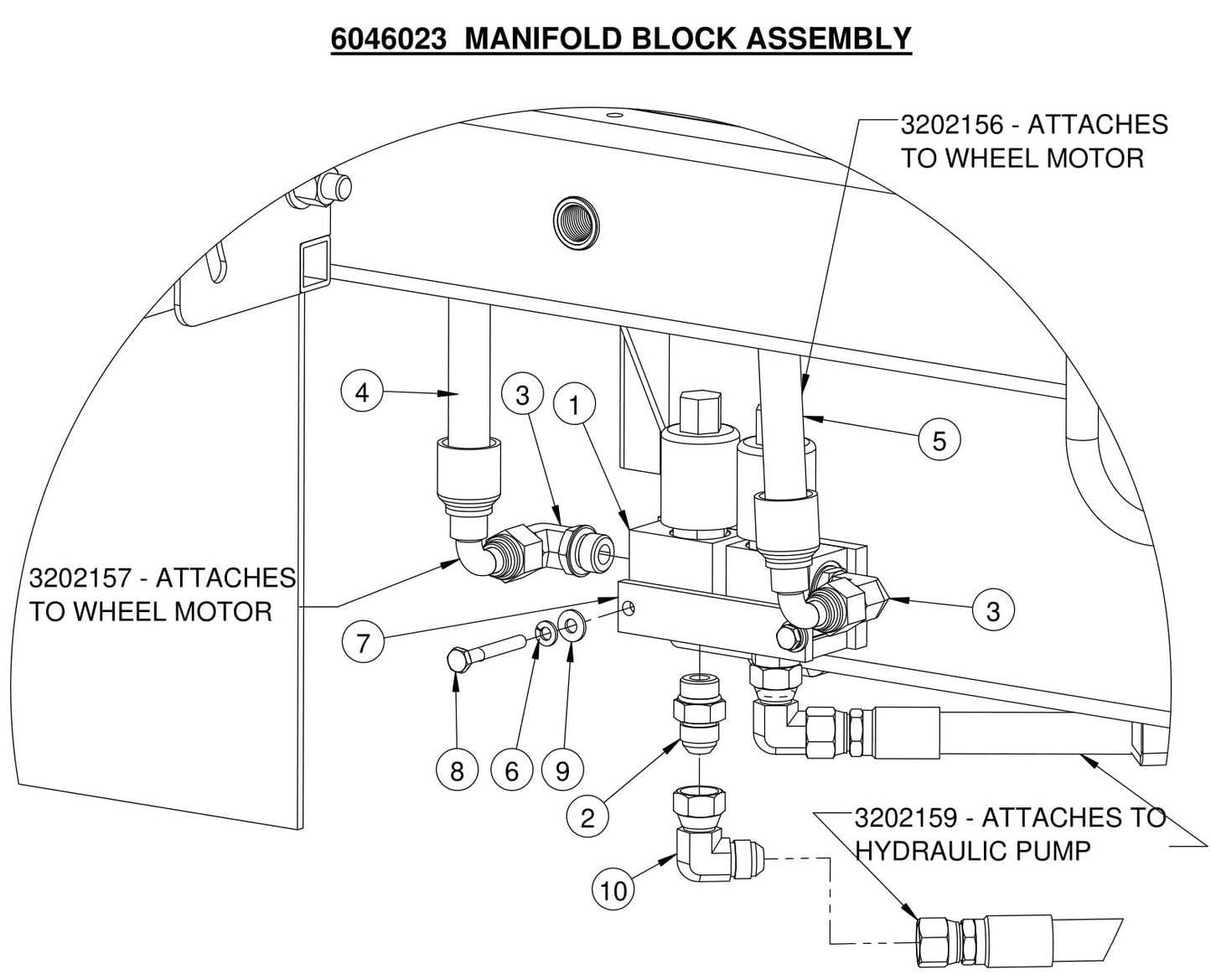

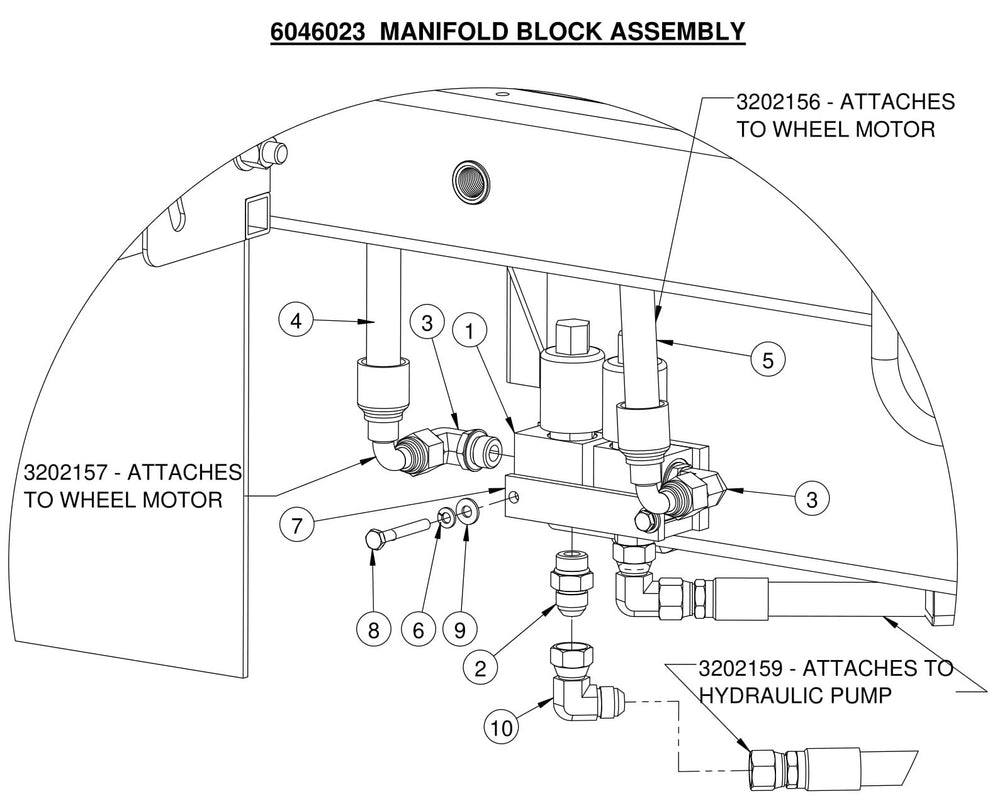

  • CC7874XL Mainfold Block Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
6043297 Manifold Block Assembly for CC7874XL Concrete Saw Core Cut by Diamond Products
$253.44
2
3200286 Adapter, 1/2" O-Ring to 1/2" M. JIC for CC7874XL Concrete Saw Core Cut by Diamond Products
$6.92
3
3200285 Elbow, 1/2" O-Ring to 1/2" M. JIC for CC7874XL Concrete Saw Core Cut by Diamond Products
$11.84
4
3202157 Hose Assy., 5/8 MOR-1/2 FJIC, 90 Deg., x 32" for CC7874XL Concrete Saw Core Cut by Diamond Products
$144.54
5
3202156 Hose Assy., 5/8 MOR-1/2 FJIC, 90 Deg.,x 29" for CC7874XL Concrete Saw Core Cut by Diamond Products
$126.72
6
2900024 Lock Washer, 1/4" Split for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
7
6046031 Manifold Hold Down for CC7874XL Concrete Saw Core Cut by Diamond Products
Call for Price call for price call for price
8
2900294 Cap Screw, Hex Hd., 1/4-20 x 2" for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
9
2900009 Flat Washer, 1/4" SAE for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
10
3200304 Elbow, 1/2" M. JIC to 1/2" F. JIC for CC7874XL Concrete Saw Core Cut by Diamond Products
$12.91
11
6043240 Guide Assembly for CC7874XL Concrete Saw Core Cut by Diamond Products
$364.80
