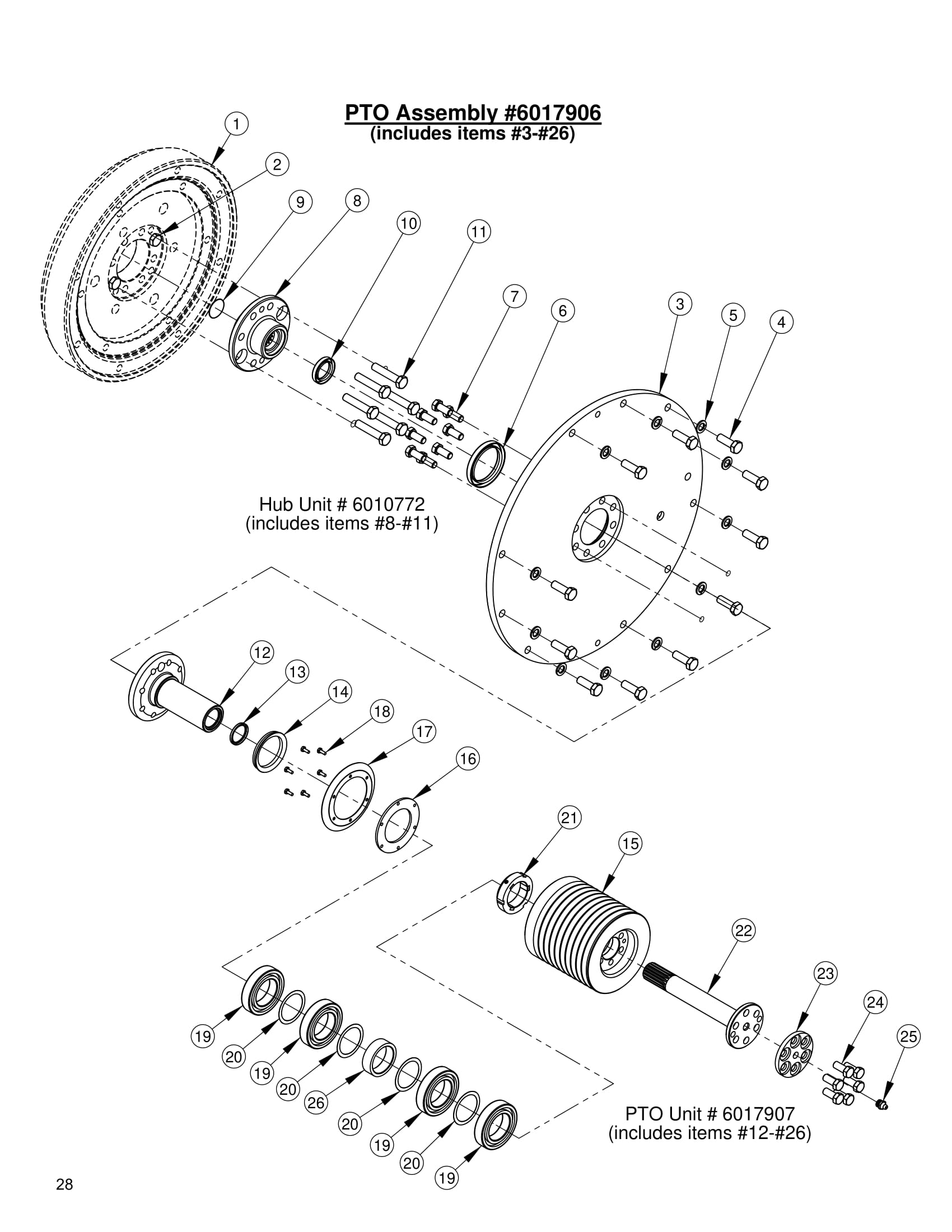

CC7874XL PTO Assembly Parts

CC7874XL PTO Assembly Parts

  • CC7874XL PTO Assembly
1 1
100% genuine product
Authorised dealer
Ref. Product details Price Qty Action
1
2701276 Flywheel, Deutz Engine for CC7874XL Concrete Saw Core Cut by Diamond Products
$2,294.82
2
2702756 Cap Screw, Hex Hd., M10-1.0 x 40mm for CC7874XL Concrete Saw Core Cut by Diamond Products
$29.24
3
6010352 Inner Ring Support for CC7874XL Concrete Saw Core Cut by Diamond Products
$434.61
4
2900223 Cap Screw, Hex Hd., M10 x 30mm for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
5
2900321 Lock Washer, M10 Split for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
6
2501983 Seal, 2" x 2-5/8" x 5/16" for CC7874XL Concrete Saw Core Cut by Diamond Products
$33.92
7
2900621 Cap Screw, Hex Hd., 3/8-16 x 7/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
8
2501721 Coupling Hub for CC7874XL Concrete Saw Core Cut by Diamond Products
$437.58
9
2501670 Hubbard Plug, 1-1/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$6.64
10
2501714 Seal, 1" x 1-1/2" x 1/4" for CC7874XL Concrete Saw Core Cut by Diamond Products
$19.37
11
2900633 Cap Screw, Hex Hd., M10-1.0 x 50mm for CC7874XL Concrete Saw Core Cut by Diamond Products
$14.05
12
2501717 Shaft Support Sleeve for CC7874XL Concrete Saw Core Cut by Diamond Products
$434.61
13
2501984 Seal, 1" x 1-1/4" x 1/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$13.99
14
2500751 Seal, 1-3/4" V-Ring for CC7874XL Concrete Saw Core Cut by Diamond Products
$15.07
15
2501789 Sheave, 4.75 x 10 Groove for CC7874XL Concrete Saw Core Cut by Diamond Products
$1,249.38
16
2501719 Bearing Retainer Plate for CC7874XL Concrete Saw Core Cut by Diamond Products
$20.29
17
2501998 Grease Slinger Disc for CC7874XL Concrete Saw Core Cut by Diamond Products
$41.97
18
2900624 Machine Screw, Hex Hd., #6-32 x 3/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$2.99
19
2501986 Ball Bearing, 40mm x 68mm x 15mm for CC7874XL Concrete Saw Core Cut by Diamond Products
$46.27
20
2501747 Shim, 40mm x 50mm x 0.1mm for CC7874XL Concrete Saw Core Cut by Diamond Products
$10.57
21
2900654 Bearing Lock Nut, 1-9/16"-18 for CC7874XL Concrete Saw Core Cut by Diamond Products
$195.03
22
2501720 Splined Drive Shaft for CC7874XL Concrete Saw Core Cut by Diamond Products
$463.20
23
2501985 Grease Disc for CC7874XL Concrete Saw Core Cut by Diamond Products
$122.40
24
2900954 Cap Screw, Hex Hd., 3/8-24 x 7/8" for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
25
2900062 Grease Fitting, 1/8" NPT for CC7874XL Concrete Saw Core Cut by Diamond Products
$3.99
26
6046020 PTO Bearing Spacer for CC7874XL Concrete Saw Core Cut by Diamond Products
$28.89
View full details
